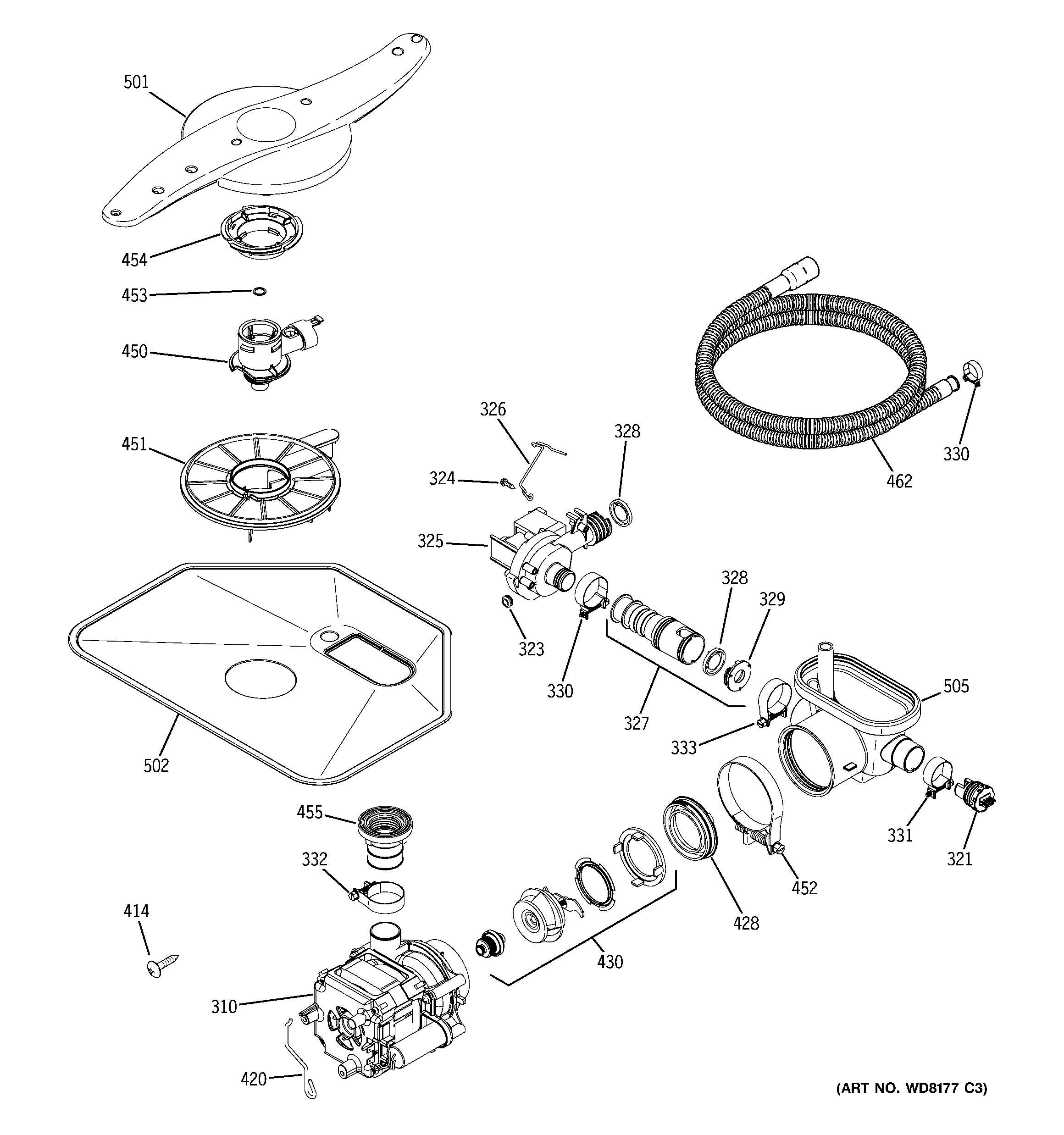

EDW6060L15SS MOTOR-PUMP MECHANISM

EDW6060L15SS MOTOR-PUMP MECHANISM

Written by

in

EDW6060L15SS MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10053 GE Dishwasher Pump and Motor Assembly
321GEN WD21X10202
323WD01X10269 GE Dishwasher Grommet
324WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
325WD26X22719 GE Dishwasher Drain Pump Kit
326GEN WD01X10292
327WD12X10189 GE Dishwasher Pump Assembly Adaptor
329GEN WD01X10176
330WD01X10279 GE Dishwasher Clamp
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10103 GE Dishwasher Clamp
333WD01X10105 GE Dishwasher Clamp
414WD2X444 GE Dishwasher Mechanical Screw
420GEN WD01X10297
428WD12X10060 GE Dishwasher Suction Ring
430WD19X10038 GE Dishwasher Impeller Kit
450GEN WD18X10009
451WD12X10109 GE Dishwasher Fine Filter Assembly
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
462WD24X10045 GE Dishwasher Drain Tube Assembly
501ARM SPRAY LOW ASM
502GEN WD22X10041
505WD18X10008 GE Dishwasher Sump Inlet
