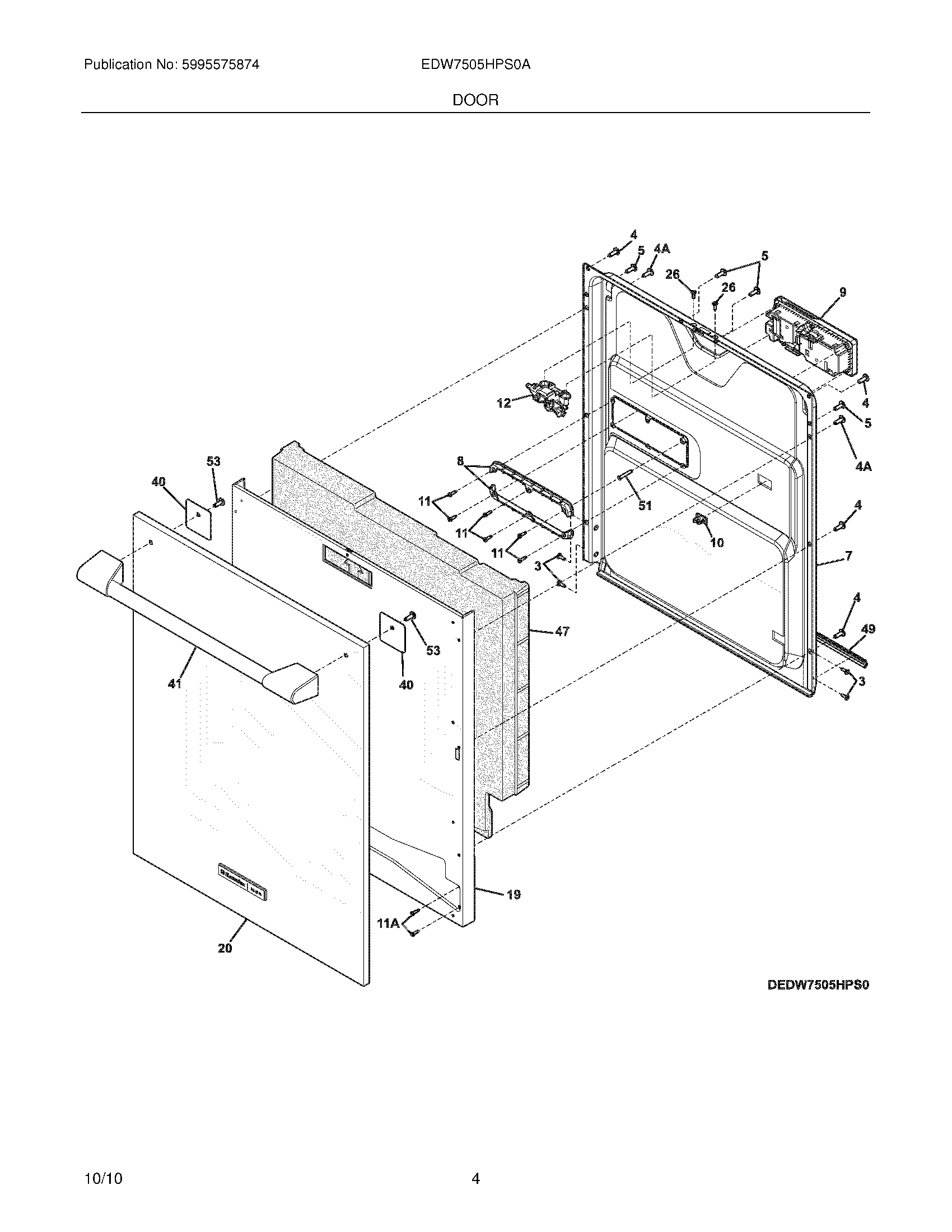

EDW7505HPS0A 05 – DOOR

Products

Position	Product
NI	WCI 154735601
3	SCREW, 6 LOBE RECESS, #10-32, (4)
4A	154603801 Frigidaire Dishwasher Screw
4	WCI 154603802
5	SCREW, PH, #10-16 HI-LO, (6), 6 LOBE
7	WCI 154509701
8	BRACKET, DISPENSER MTG., (2)
9	5304507354 Frigidaire Dishwasher Dispenser
10	CLIP, WIRING HARNESS
11	SCREW, FT PH 6 LOBE,#8-18
11A	SCREW, 6 LOBE RECESS, #8-18
12	154671402 Frigidaire Dishwasher Door Latch Assembly
19	WCI 154603201
20	WCI 154795101
26	SCREW, PHLPS HD, #10-16 HI LO, (4)
40	154603401 Frigidaire Dishwasher Plate Assembly
41	WCI 154743101
47	WCI 154746601
49	GASKET, DOOR BOTTOM
51	WCI 154320301
53	WCI 154693101
