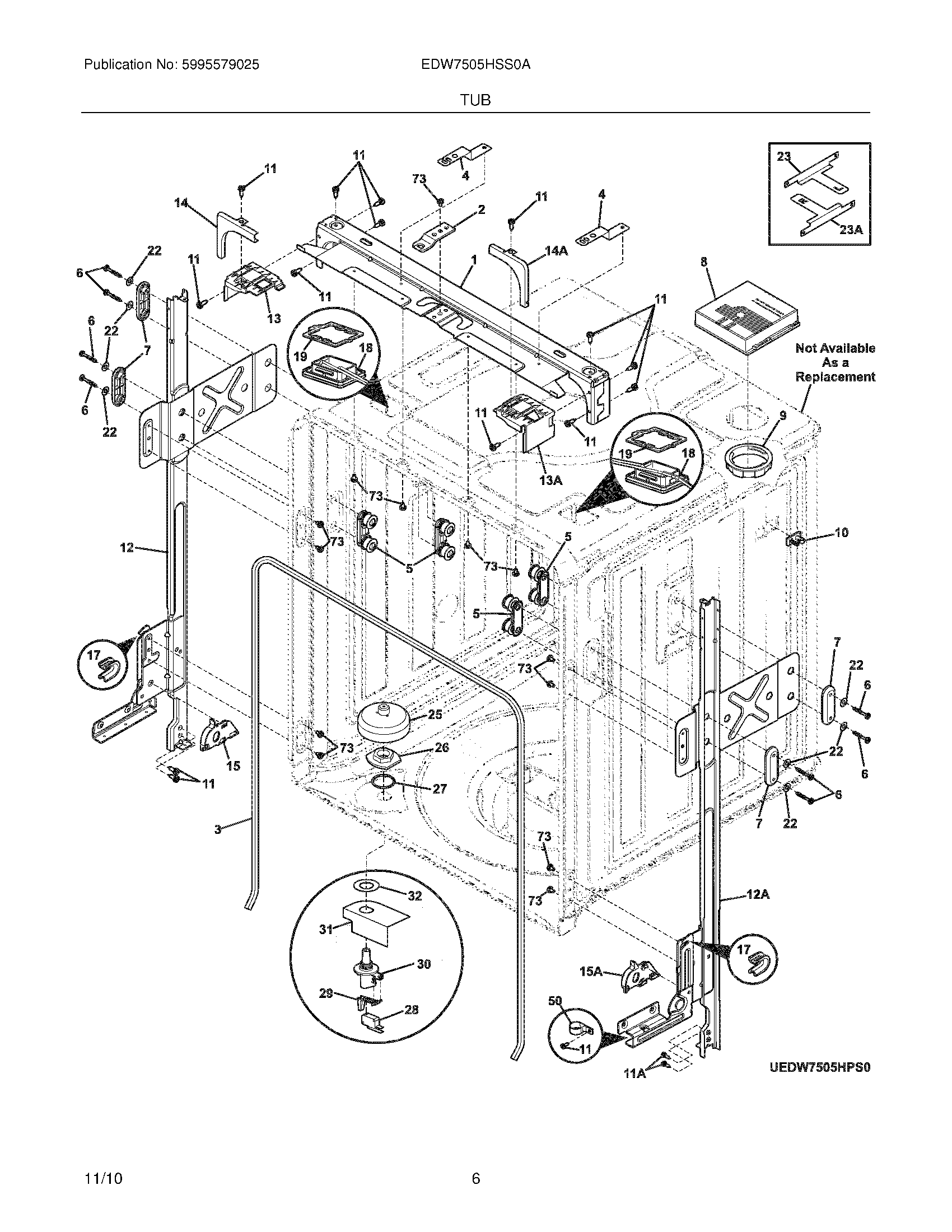

EDW7505HSS0A 07 – TUB

EDW7505HSS0A 07 – TUB

Written by

in

EDW7505HSS0A 07 – TUB

Products

PositionProduct
NI154691601 Frigidaire Dishwasher Cover
NI154733001 Frigidaire Dishwasher Seal
NICLIP, INSULATION, (2)
NIINSULATION, BLANKET
NIWCI 154662101
NISEAL, TUB CORNER, LH LOWER
NISCREW, CABINET CLAMP, (2)
1BRACE, FRAME, TOP
2STRIKE, DOOR LATCH
3GASKET, TUB
4CLIP, CABINET MTG., TOP MOUNT, (2)
5ROLLER ASSEMBLY, TUB, (4), W/GASKET
6WCI 154719001
7PLATE, RETAINER, OUTER, (2), TUB ROLLER
8VENT ASSEMBLY, UPPER
9154622601 Frigidaire Dishwasher Bezel
10CLIP, WIRING HARNESS
11SCREW, 6 LOBE RECESS, #8-18
11A154200701 Frigidaire Dishwasher Screw
12ALEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT
12LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT
13BRACKET, CABINET CLIP, LH
13ABRACKET, CABINET CLIP, RH
14ATRIM, CORNER, RH
14TRIM, CORNER, LH
15COVER, HINGE ARM, LH
15ACOVER, HINGE ARM, RH
17BUSHING, HINGE ARM CABLE, (2)
18WCI 154693801
19WCI 154751501
225300809968 Frigidaire Dishwasher P-1 Washer
23ACLIP, CABINET MTG., RH
23154654601 Frigidaire Dishwasher Clip
26154506902 Frigidaire Dishwasher Nut
27154677201 Frigidaire Dishwasher Gasket
28154860901 Frigidaire Dishwasher Float Sensor
30154763901 Frigidaire Dishwasher Switch Assembly
31WCI 154657101
32154506801 Frigidaire Dishwasher Washer
50154690101 Frigidaire Clamp
73SCREW, 6 LOBE RECESS, #8-32
