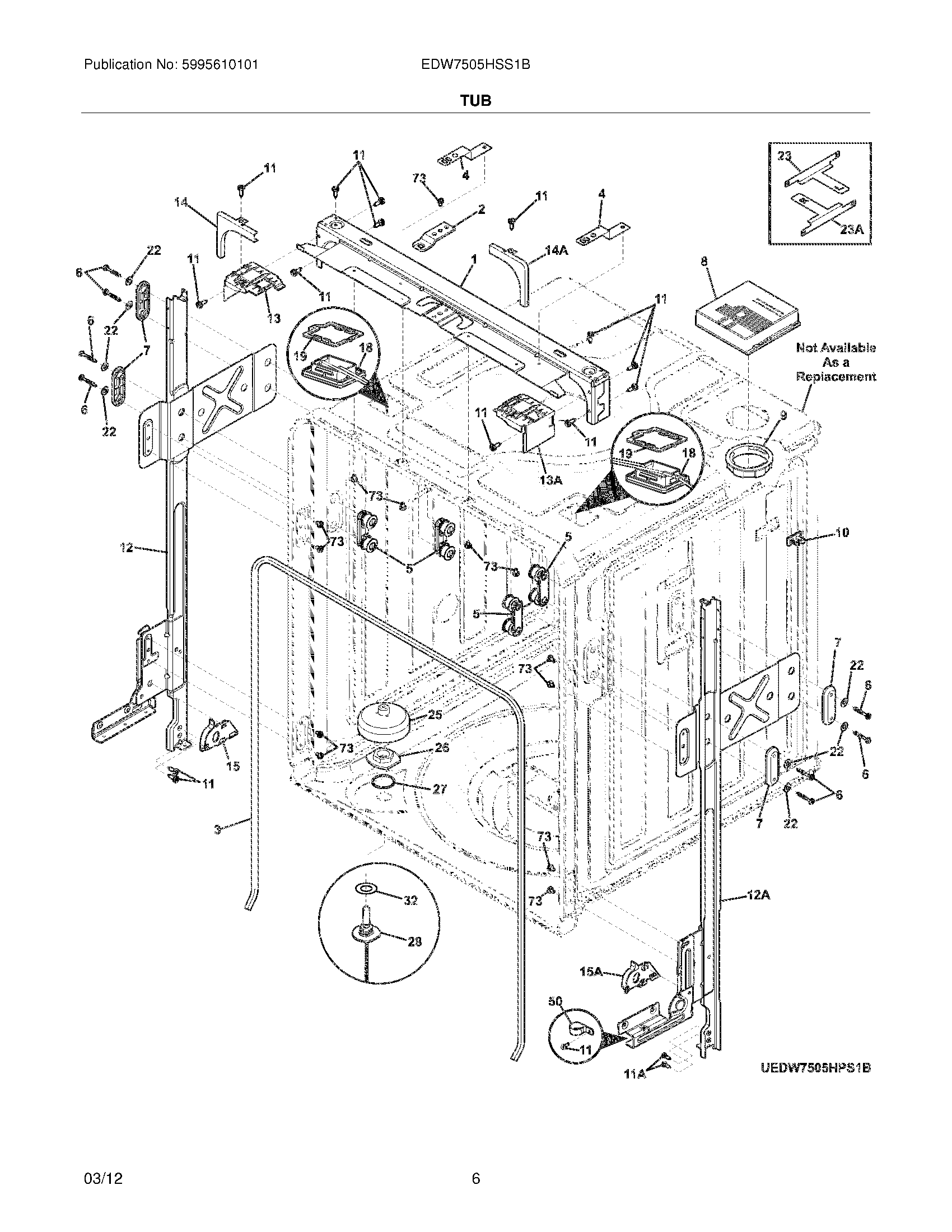

EDW7505HSS1B 07 – TUB

Products

PositionProduct
NI154691601 Frigidaire Dishwasher Cover
NI154733001 Frigidaire Dishwasher Seal
NIINSULATION, BLANKET
NIWCI 154662101
NICLIP, INSULATION, (2)
NISEAL, TUB CORNER, LH LOWER
NISCREW, CABINET CLAMP, (2)
1BRACE, FRAME, TOP
2STRIKE, DOOR LATCH
3WCI 154859301
4CLIP, CABINET MTG., TOP MOUNT, (2)
5ROLLER ASSEMBLY, TUB, (4), W/GASKET
6WCI 154719001
7PLATE, RETAINER, OUTER, (2), TUB ROLLER
8VENT ASSEMBLY, UPPER
9154622601 Frigidaire Dishwasher Bezel
10CLIP, WIRING HARNESS
11A154200701 Frigidaire Dishwasher Screw
11SCREW, 6 LOBE RECESS, #8-18
12LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT
12ALEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT
13BRACKET, CABINET CLIP, LH
13ABRACKET, CABINET CLIP, RH
14ATRIM, CORNER, RH
14TRIM, CORNER, LH
15COVER, HINGE ARM, LH
15ACOVER, HINGE ARM, RH
18WCI 154693801
19WCI 154751501
225300809968 Frigidaire Dishwasher P-1 Washer
23ACLIP, CABINET MTG., RH
23154654601 Frigidaire Dishwasher Clip
25154764401 Frigidaire Dishwasher Float
26154506902 Frigidaire Dishwasher Nut
27154677201 Frigidaire Dishwasher Gasket
28154763901 Frigidaire Dishwasher Switch Assembly
32154506801 Frigidaire Dishwasher Washer
50154690101 Frigidaire Clamp
73SCREW, 6 LOBE RECESS, #8-32
