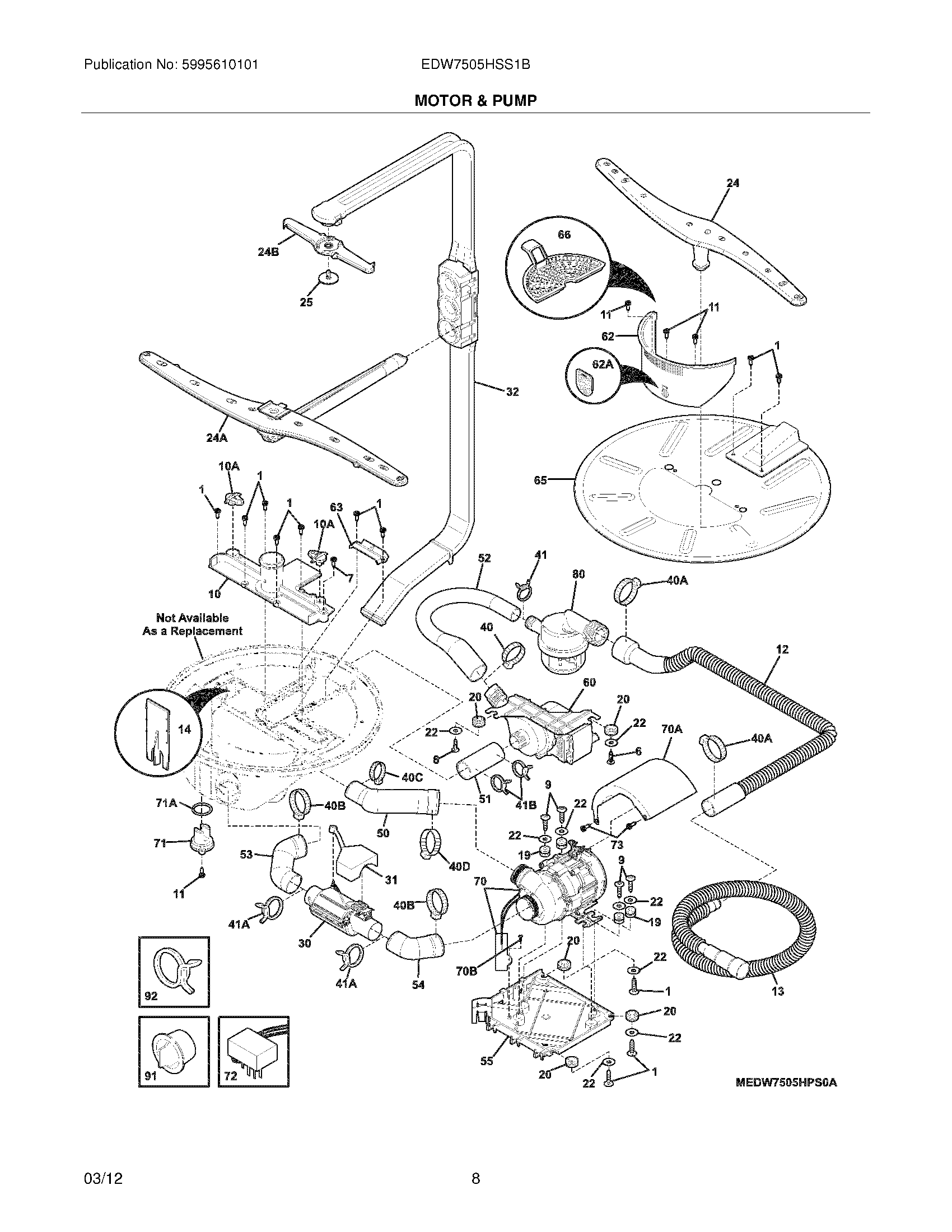

EDW7505HSS1B 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154819101
NI	WCI 154836801
NI	WCI 154833101
NI	154779601 Frigidaire Dishwasher Screw
NI	WCI 154832701
NI	SCREW, CABINET CLAMP, (2)
1	154518001 Frigidaire Refrigerator Screw
6	SCREW, 6 LOBE RECESS, #8-18
7	SCREW, 6 LOBE RECESS, #10 HI LO
9	5304453707 Frigidaire Oven Screw
10	SUPPORT, LOWER SPRAY ARM
10A	CLAMP, FILTER, (2)
11	154783101 Frigidaire Dishwasher Screw
12	HOSE, DRAIN, INTERMEDIATE
13	5304521094 Frigidaire Dishwasher Hose
14	BRACKET, DRAIN
19	GROMMET, VIBRATION, (4)
20	GROMMET, VIBRATION, (5)
22	5300809968 Frigidaire Dishwasher P-1 Washer
24B	SPRAY ARM, ASSEMBLY, UPPER
24A	154508202 Frigidaire Dishwasher Spray Arm
24	154755501 Frigidaire Dishwasher Spray Arm
25	PIN, SPRAY ARM, UPPER
30	154503701 Frigidaire Heating Element
31	COVER, INLINE HEATER
32	TUBING ASSEMBLY, DELIVERY, W/CHECK VALVE
40	CLAMP, HOSE, 1.64" OPEN, WORM GEAR
40B	CLAMP, SPRING, SAE 28
40C	CLAMP, SPRING, 1.312", SAE 21
40D	CLAMP, SPRING, 1.625", SAE 26
40A	154380601 Frigidaire Dishwasher Clamp Assembly
41B	CLAMP, SPRING, (2)
41A	CLAMP, SPRING, SAE 25, HOSE
41	154348401 Frigidaire Dishwasher Clamp
50	154760501 Frigidaire Dishwasher Hose
51	154757702 Frigidaire Hose
52	154622402 Frigidaire Dishwasher Hose
53	WCI 154873001
54	WCI 154873101
55	154677101 Frigidaire Dishwasher Plate
60	154757901 Frigidaire Dishwasher Pump Assembly
62	FILTER ASSEMBLY, VERTICAL, W/FLAPPER
62A	FLAPPER, DRAIN CHECK
63	COVER, DEL
65	154283005 Frigidaire Dishwasher Filter Assembly
66	WCI 154740901
70	154614002 Frigidaire Dishwasher Drain Pump and Motor Assembly
70A	WCI 154656401
70B	WCI 154614401
71	154473901 Frigidaire Dishwasher Sensor
71A	154691901 Frigidaire Dishwasher O-Ring
72	154655901 Frigidaire Dishwasher Sensor
73	SCREW, 6 LOBE RECESS, #8-32
80	154622001 Frigidaire Dishwasher Drain Valve
91	WCI 154676701
92	154348502 Frigidaire Dishwasher Clamp
