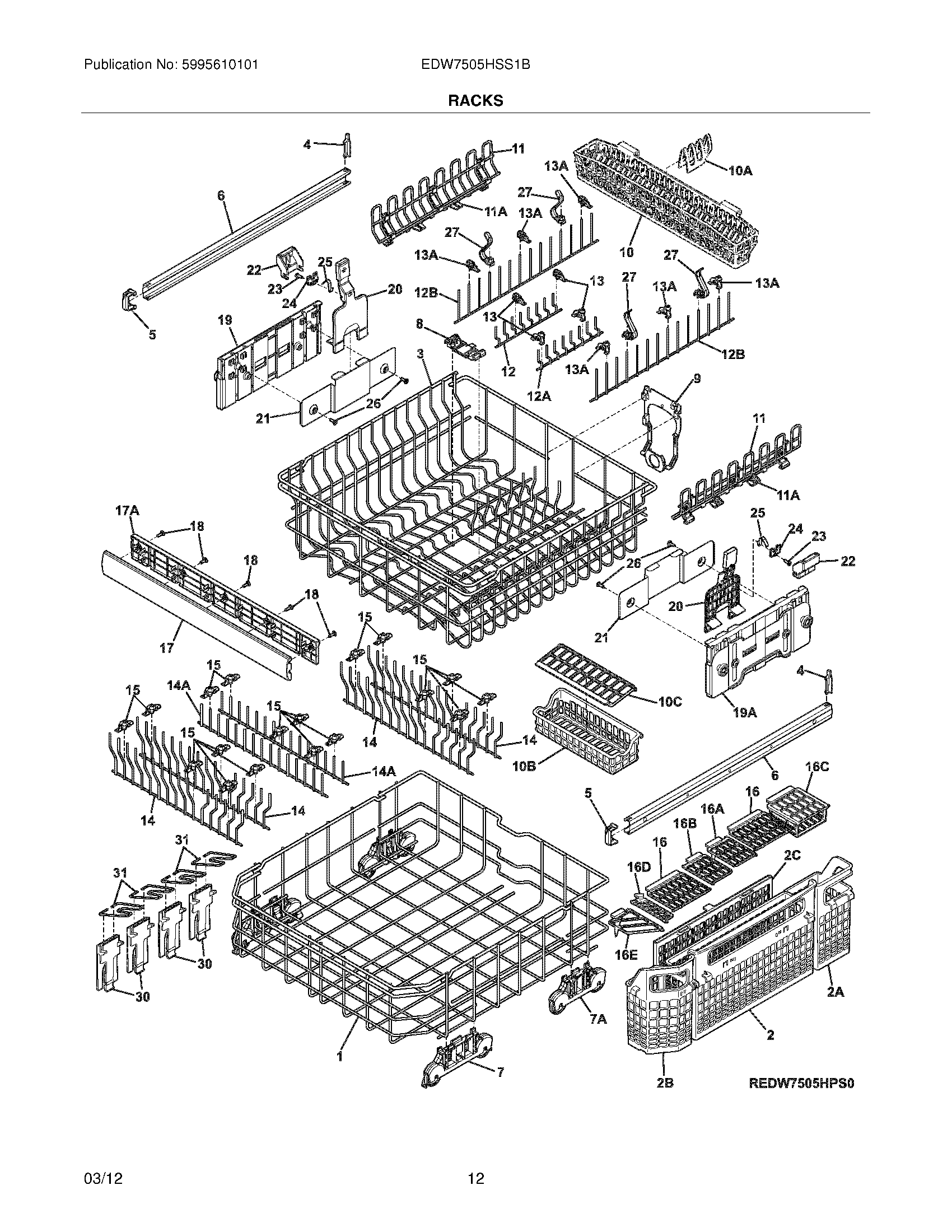

EDW7505HSS1B 13 – RACKS

EDW7505HSS1B 13 – RACKS

Written by

in

EDW7505HSS1B 13 – RACKS

Products

PositionProduct
1RACK ASSEMBLY, LOWER
2CWCI 154653001
2BWCI 154632702
2AWCI 154632602
2WCI 154632402
3WCI 154694701
4154510902 Frigidaire Dishwasher Clip
5WCI 154510807
6GUIDE RAIL, UPPER RACK, (2)
7AROLLER ASSEMBLY, LOWER RACK, REAR, (2)
7ROLLER ASSEMBLY, LOWER RACK, FRONT, (2)
8154610501 Frigidaire Dishwasher Bracket
9154613402 Frigidaire Dishwasher Clip
10AWCI 154581304
10BWCI 154632102
10CWCI 154652002
10WCI 154581204
11SHELF, CUP, UPPER RACK, (2)
11A154629102 Frigidaire Dishwasher Clip
12BFENCE, FOLD DOWN, UPPER RACK
12FENCE, FOLD DOWN, LH CENTER, UPPER RACK
12AFENCE, FOLD DOWN, RH CENTER, UPPER RACK
13WCI 154629403
13AWCI 154652203
14FENCE, FOLD DOWN, LOWER RACK, (2), FULL LENGTH
14AFENCE, FOLD DOWN, LOWER RACK, (4)
15154428402 Frigidaire Bracket
16EWCI 154634902
16DWCI 154651802
16CWCI 154649002
16BWCI 154651702
16AWCI 154632502
16WCI 154631402
17WCI 154694501
17AWCI 154694601
18WCI 154698001
19AWCI 154673601
19PLATE ASSEM
20WCI 154655102
21WCI 154630101
22WCI 154630301
23SCREW, UPPER RACK
24WCI 154655201
25WCI 154630201
26SCREW, 6 LOBE RECESS, #10 HI LO
27WCI 154528804
30WCI 154632302
31WCI 154632201
