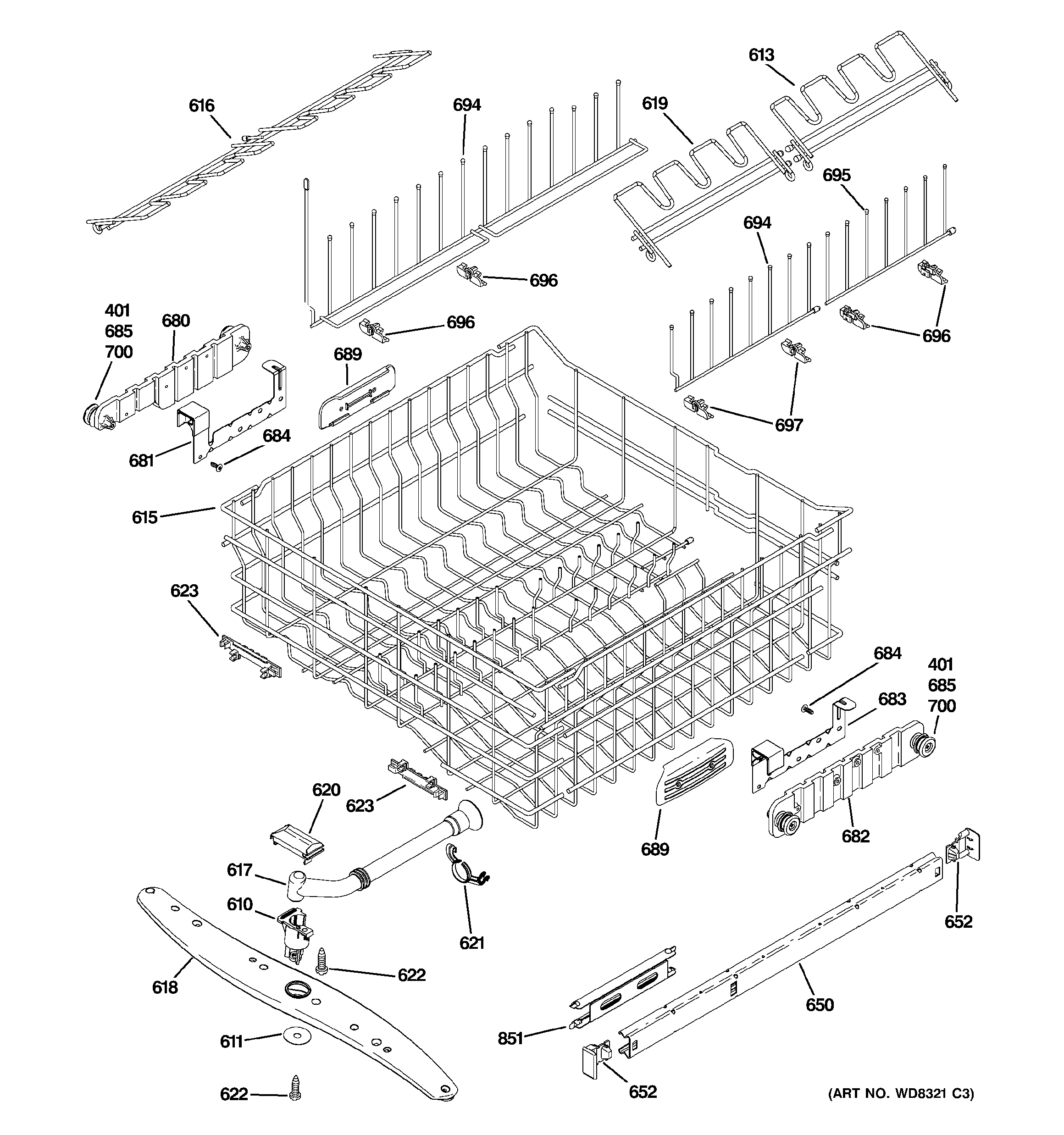

EDWF800P00WW UPPER RACK ASSEMBLY

EDWF800P00WW UPPER RACK ASSEMBLY

Written by

in

EDWF800P00WW UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
613GEN WD28X10149
615WD28X10410 GE Dishwasher Upper Dishrack Assembly
616GEN WD28X10146
617WD12X10145 GE Dishwasher Mid Spray Conduit
618WD22X10048 GE Dishwasher Arm Spray Mid Assembly
619GEN WD28X10148
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623WD12X10137 GE Dishwasher Finger Indexer Right Hand
623WD12X10120 GE Dishwasher Finger Indexer Left Hand
650GEN WD30X10021
652SLIDE END CAP
680WD12X10143 GE Dishwasher Wheel Bracket
681WD01X10395 GE Dishwasher Left Hand Rack Lever Assembly
682GEN WD12X10144
683WD01X10396 GE Dishwasher Right Hand Rack Lever Assembly
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
685GEN WD02X10112
689WD01X10397 GE Dishwasher Touch Pad Stainless Steel
694GEN WD28X10118
695GEN WD28X10119
696WD12X10116 GE Dishwasher Retainer Comb
697WD12X10118 GE Dishwasher Retainer Comb
700GEN WD12X10138
851CAGE ROLLER BEARING ASSMBLY
