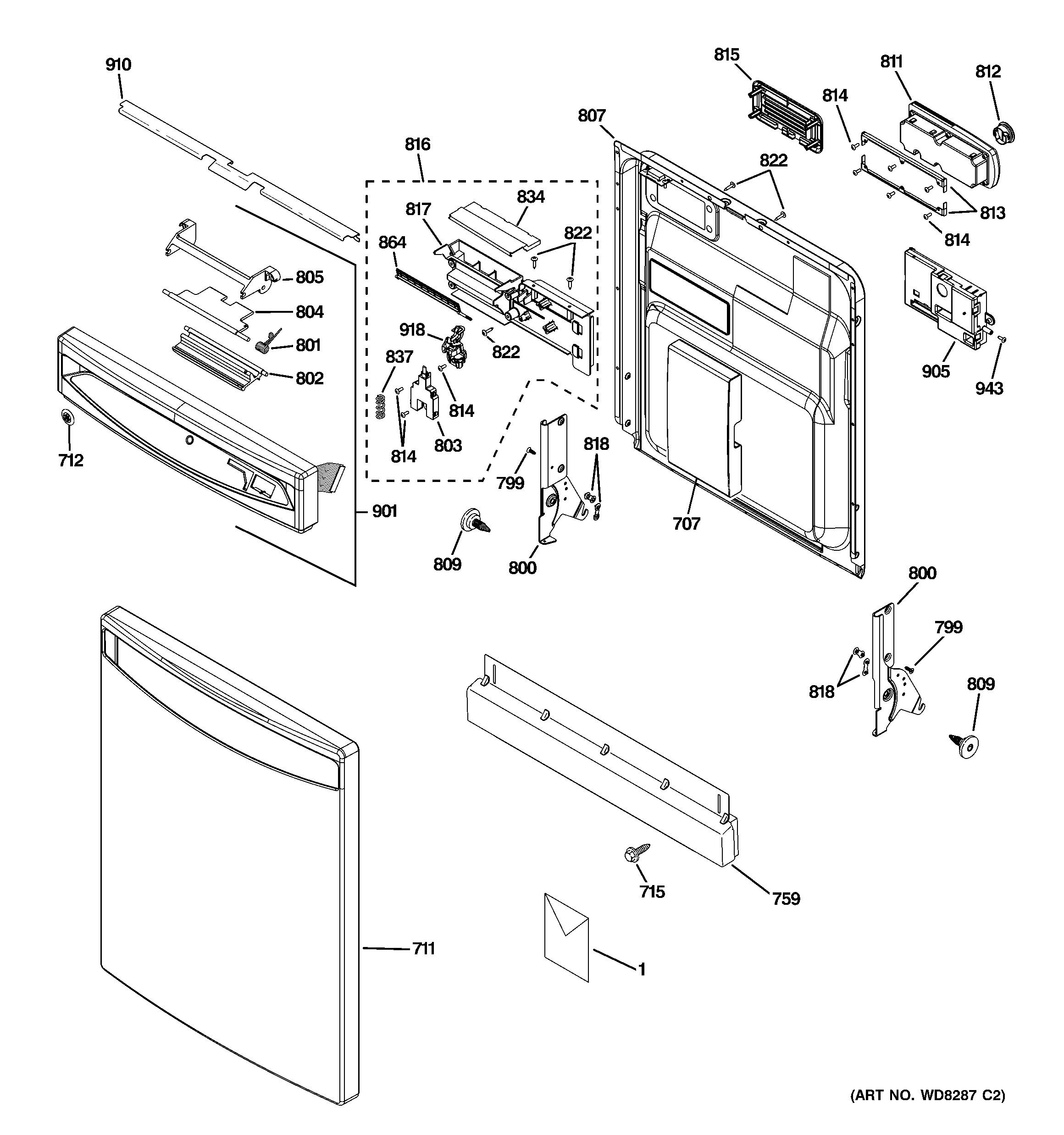

EDWF860P00SS ESCUTCHEON & DOOR ASSEMBLY

EDWF860P00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

EDWF860P00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55057
1GEN 31-30602
1GEN 31-30245
707GEN WD01X10407
711GEN WD31X10033
711GEN WD31X10032
711GEN WD31X10102
712GEN WD34X11472
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759WD27X10177 GE Dishwasher Toe Kick Assembly
759GEN WD27X10168
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800GEN WD14X10021
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
801WR02X10585 SPRING RECES
802GEN WD13X10010
802GEN WD13X10007
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807WD31X10042 GE Dishwasher Inner Door Assembly
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10130
816GEN WD12X10140
817GEN WD12X10273
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
834GEN WD12X10274
837WD03X10026 GE Dishwasher Spring Plunger
864WD12X10044 GE Dishwasher Flapper Vent
864WD12X10067 GE Dishwasher Flapper Vent
901GEN WD34X11508
901GEN WD34X11509
905WD21X10369 GE Dishwasher Module Control Assembly
910GEN WD34X10871
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
