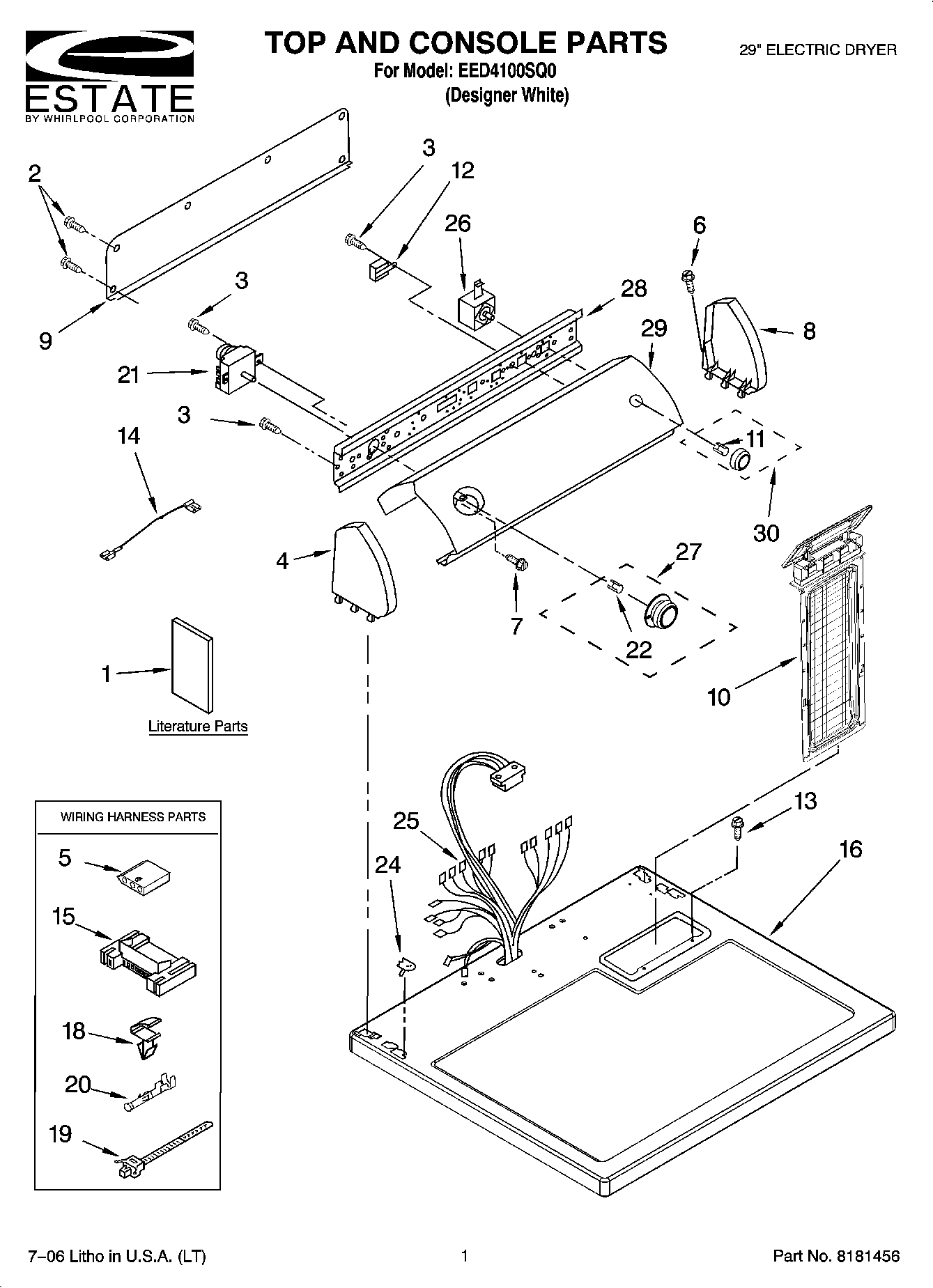

EED4100SQ0 01 – TOP AND CONSOLE PARTS

EED4100SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

EED4100SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Instructions, Installation
1Wiring Diagram
1Use & Care Guide
1Sheet, Cycle Feature
2WP693995 Whirlpool Screw
3WP90767 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP694419 Whirlpool Buzzer Adjuster
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Blue)
153395683 Whirlpool Connector
16Top
18WP3394427 Whirlpool Clip
19Tie, Cable
20WP94614 Whirlpool Terminal
21WP8299780 Whirlpool Timer
22WP688805 Whirlpool Spring Clip
24WP357213 Whirlpool Hinge Stopper
25Harness, Wiring
26WP3977456 Whirlpool Start Switch
27WP8557455 Whirlpool Knob Timer
28Bracket, Control
29Panel, Control
30Knob, Push-To-Start
