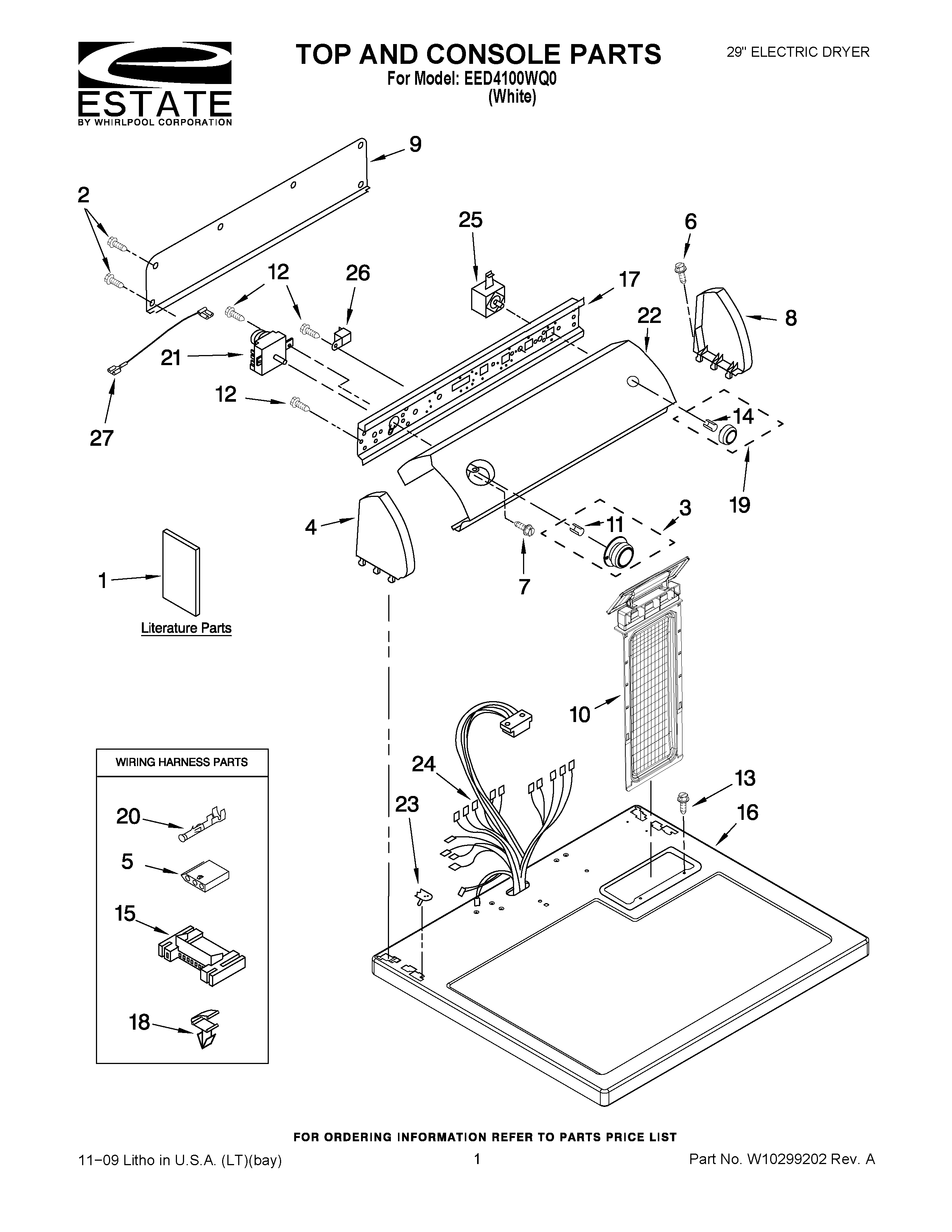

EED4100WQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1WIRING DIAGRAM
1Instructions, Installation
1GUIDE, USE & CARE
2WP693995 Whirlpool Screw
3WP8557455 Whirlpool Knob Timer
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
153395683 Whirlpool Connector
16Top
17Bracket, Control
18WP3394427 Whirlpool Clip
19Knob, Push-To-Start
20WP94614 Whirlpool Terminal
21WP8299780 Whirlpool Timer
22Panel, Control
23WP357213 Whirlpool Hinge Stopper
24HARNESS, WIRING
25WP3977456 Whirlpool Start Switch
26WP694419 Whirlpool Buzzer Adjuster
27Wire, Jumper (Blue)
