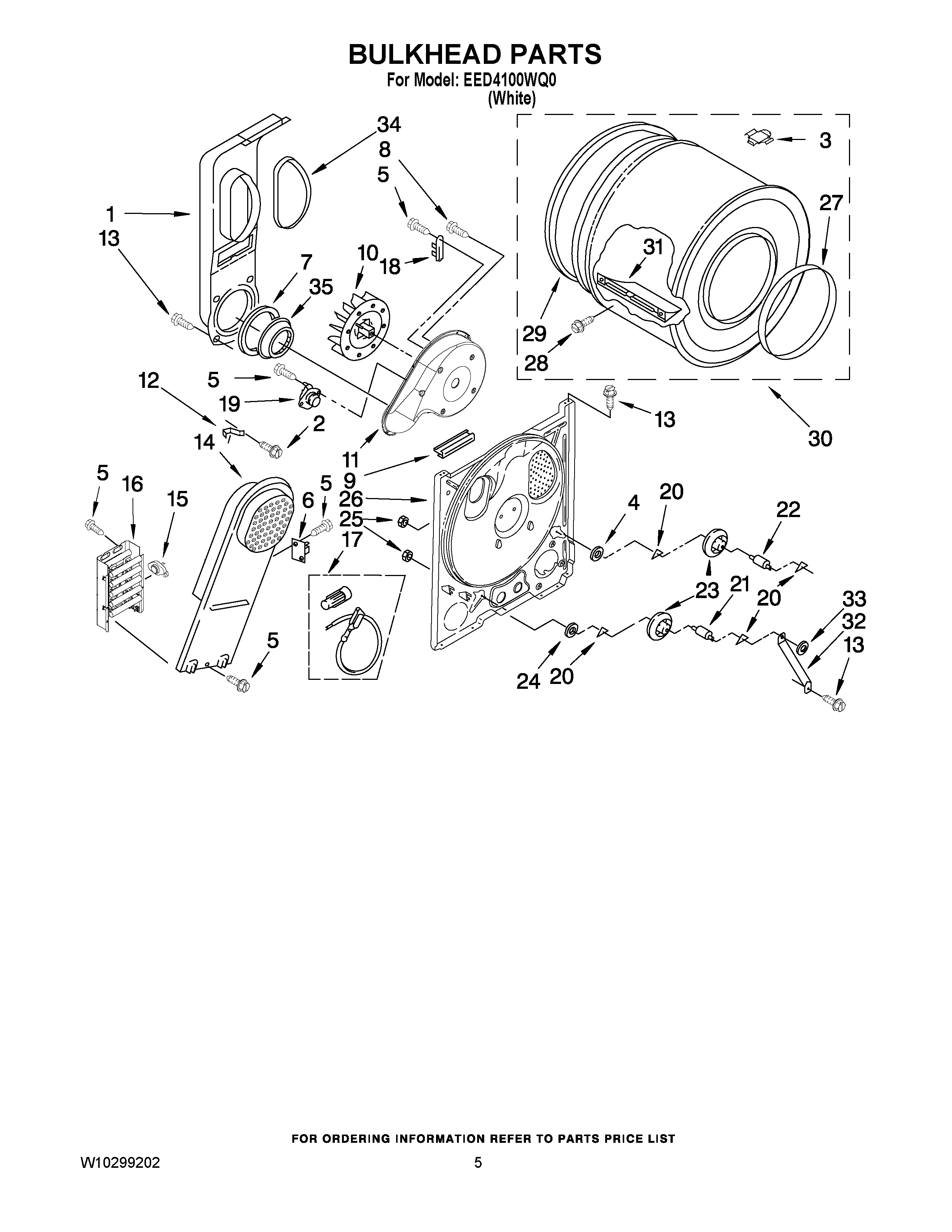

EED4100WQ0 03 – BULKHEAD PARTS

EED4100WQ0 03 – BULKHEAD PARTS

Written by

in

EED4100WQ0 03 – BULKHEAD PARTS

Products

PositionProduct
1279505 Whirlpool Chute
2WP489463 Whirlpool Refrigerator Screw
38066086 Whirlpool Plug
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7W11415783 Whirlpool Seal
8WP488729 Whirlpool Refrigerator Door Screw
9686889 Whirlpool Pad
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16279838 Whirlpool Dryer Heating Element 5400W
17279457 Whirlpool Dryer Heating Element Wide Spade Connection
18WP3392519 Whirlpool Dryer Thermal Fuse
19WP694674 Whirlpool Cycling Thermostat
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21SHAFT SUPPORT ROLLER DRYER
22SHAFT SUPPORT ROLLER DRYER
23349241T Whirlpool Dryer Drum Support Roller Kit
24WP348197 Whirlpool Washer Assembly
25WP3359452 Whirlpool Nut
26BULKHEAD
27WP3394509 Whirlpool Bearing Ring
28W10853898 Whirlpool Screw
29239087 Whirlpool Dryer Rear Drum Seal Green Stitches
30697760 Whirlpool Drum Assembly Primary OS2
31WP342847 Whirlpool Drum Baffle
32Bracket, Support
33WP90296 Whirlpool Clip
34SEAL
35W11233063 Whirlpool Shield Assembly
