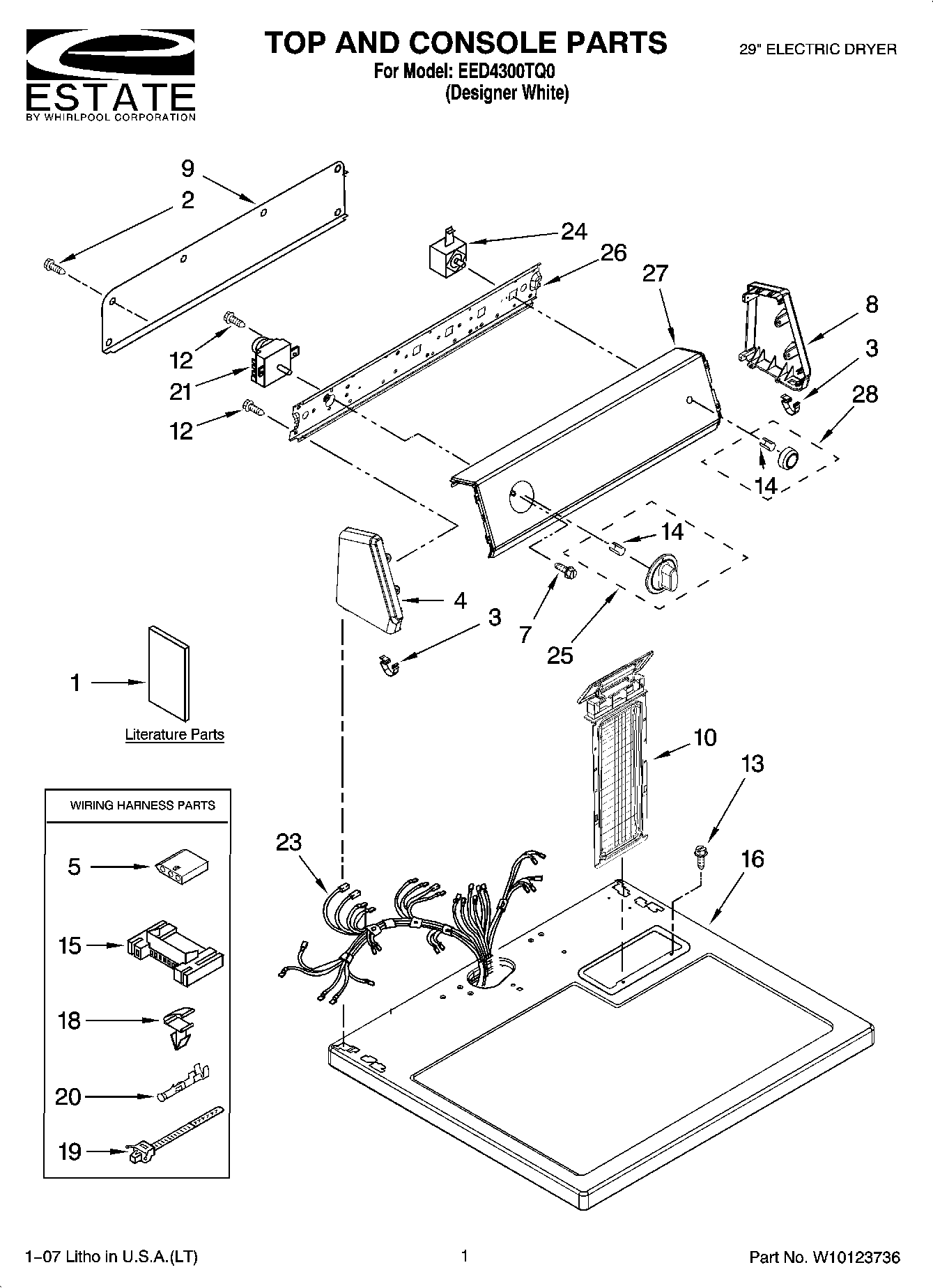

EED4300TQ0 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Guide, Use & Care
1	Sheet, Cycle Feature
1	Wiring Diagram
1	WPL 677818
1	Instructions Installations
2	WP693995 Whirlpool Screw
3	WP8312709 Whirlpool Endcap Clip
4	Cap, End (L.H.)
5	3936144 Whirlpool Connector
7	3400859 Whirlpool Screw
8	Cap, End (R.H.)
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	WP8536939 Whirlpool Spring Clip
15	3395683 Whirlpool Connector
16	WP8563663 Whirlpool Top Assembly
18	WP3394427 Whirlpool Clip
19	Tie, Cable
20	WP94614 Whirlpool Terminal
21	WP8299781 Whirlpool Timer
23	WPW10450292 Whirlpool Wire Harness
24	WP3977456 Whirlpool Start Switch
25	Timer-Knob Assembly
26	Bracket, Control
27	Panel, Control
28	W10110065 Whirlpool Knob Assembly
