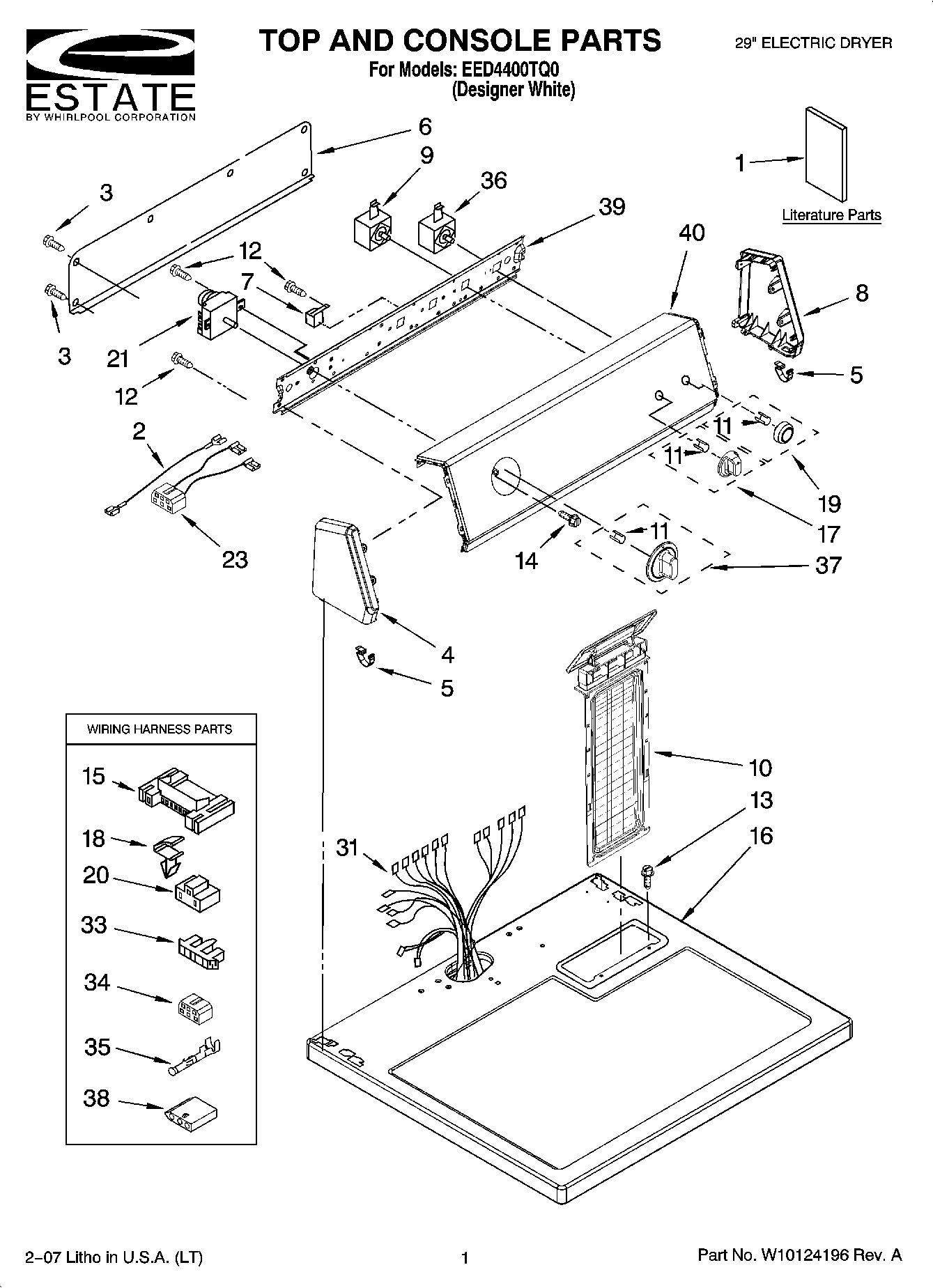

EED4400TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Instructions Installations
1	Wiring Diagram
1	WPL 677818
1	Sheet, Cycle Feature
1	Guide, Use & Care
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	WP8312709 Whirlpool Endcap Clip
6	W10103406 Whirlpool Rear Panel
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
9	WP3399639 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	WP8563663 Whirlpool Top Assembly
17	WPW10110063 Whirlpool Knob
18	WP3394427 Whirlpool Clip
19	Knob, Push-To-Start
20	3401144 Whirlpool Connector
21	WP3979617 Whirlpool Timer
23	8539893 Whirlpool Wire Harness
31	Harness, Wiring
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
36	WP3398095 Whirlpool Dryer Start Relay
37	Timer-Knob Assembly
38	3936144 Whirlpool Connector
39	Bracket, Control
40	Panel, Control
