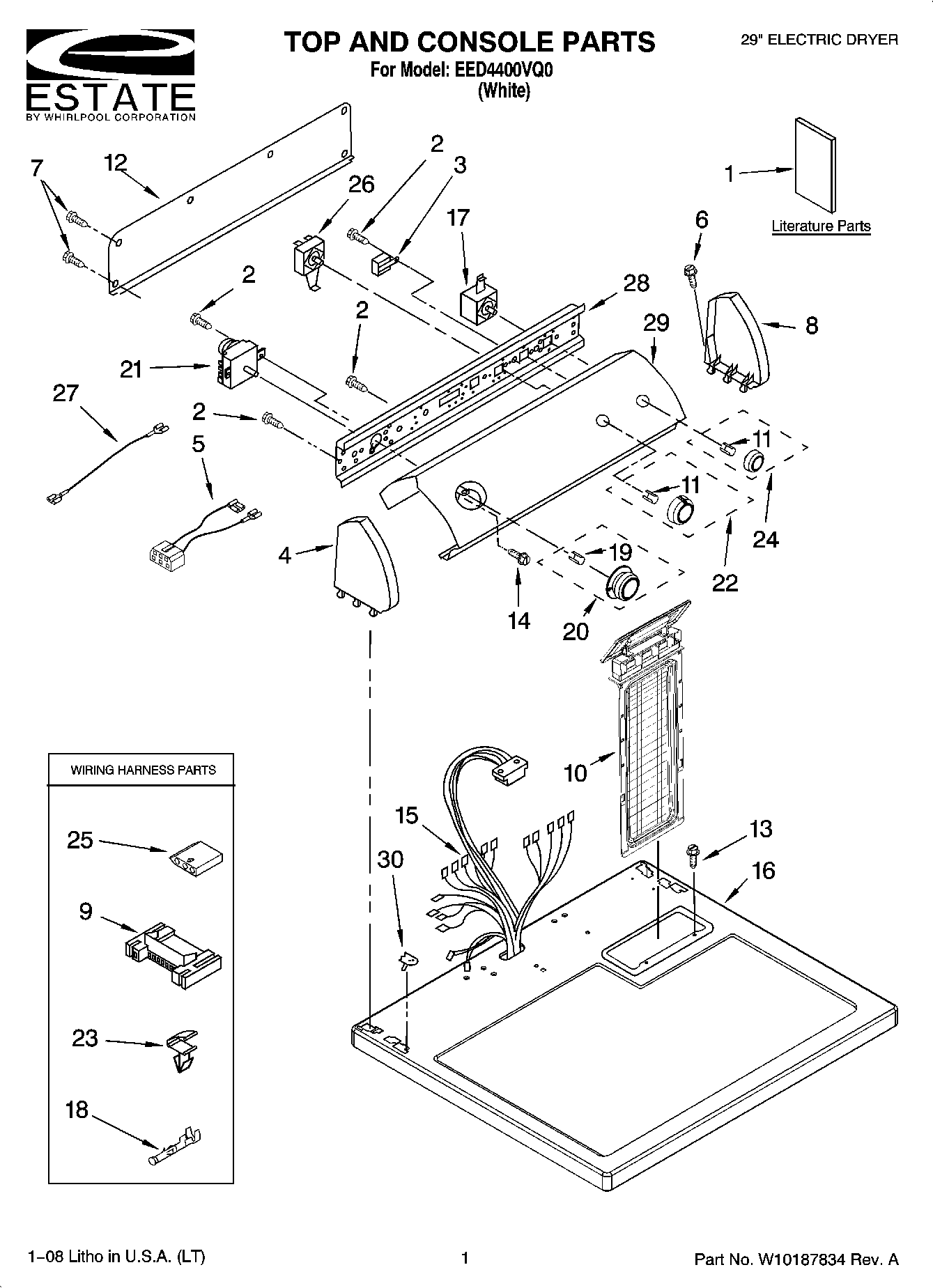

EED4400VQ0 01 – TOP AND CONSOLE PARTS

EED4400VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

EED4400VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1WPL 677818
1Instructions, Installation
1Guide, Use & Care
1Sheet, Cycle Feature
2WP90767 Whirlpool Screw
3WP694419 Whirlpool Buzzer Adjuster
5Wire, Jumper (Guard On/Off)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12W10103406 Whirlpool Rear Panel
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WPW10450292 Whirlpool Wire Harness
16Top
17WP3977456 Whirlpool Start Switch
18WP94614 Whirlpool Terminal
19WP688805 Whirlpool Spring Clip
20WP8557455 Whirlpool Knob Timer
21WP8299778 Whirlpool Timer
22KNOB
23WP3394427 Whirlpool Clip
24Knob, Push-To-Start
253936144 Whirlpool Connector
263405152 Whirlpool Switch Assembly
27Wire, Jumper (Black)
28Bracket, Control
29Panel, Control
30WP357213 Whirlpool Hinge Stopper
