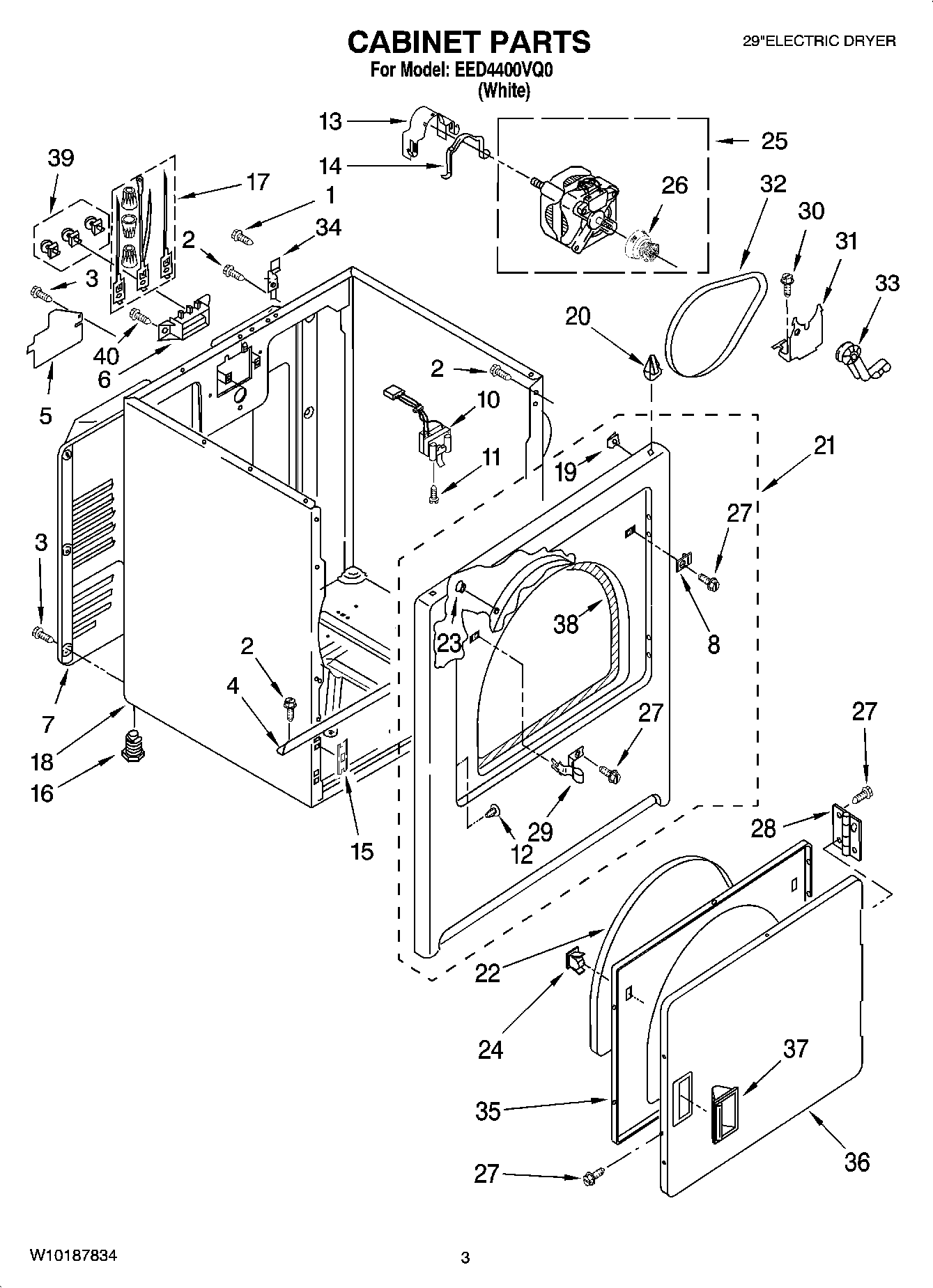

EED4400VQ0 02 – CABINET PARTS

EED4400VQ0 02 – CABINET PARTS

Written by

in

EED4400VQ0 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3397659 Whirlpool Terminal Block
7280043 Whirlpool Rear Panel
8WP3403630 Whirlpool Plug
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
13WP3404162 Whirlpool Clamp
14WP660658 Whirlpool Clamp
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
22SEAL-DOOR DRYER
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25279827 Whirlpool Dryer Drive Motor
26WP8066184 Whirlpool Dryer Motor Pulley
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W11429589 Whirlpool Strike
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33WP691366 Whirlpool Dryer Idler Pulley Assembly
34WP8066217 Whirlpool Hinge
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40WP308685 Whirlpool Microwave Screw
