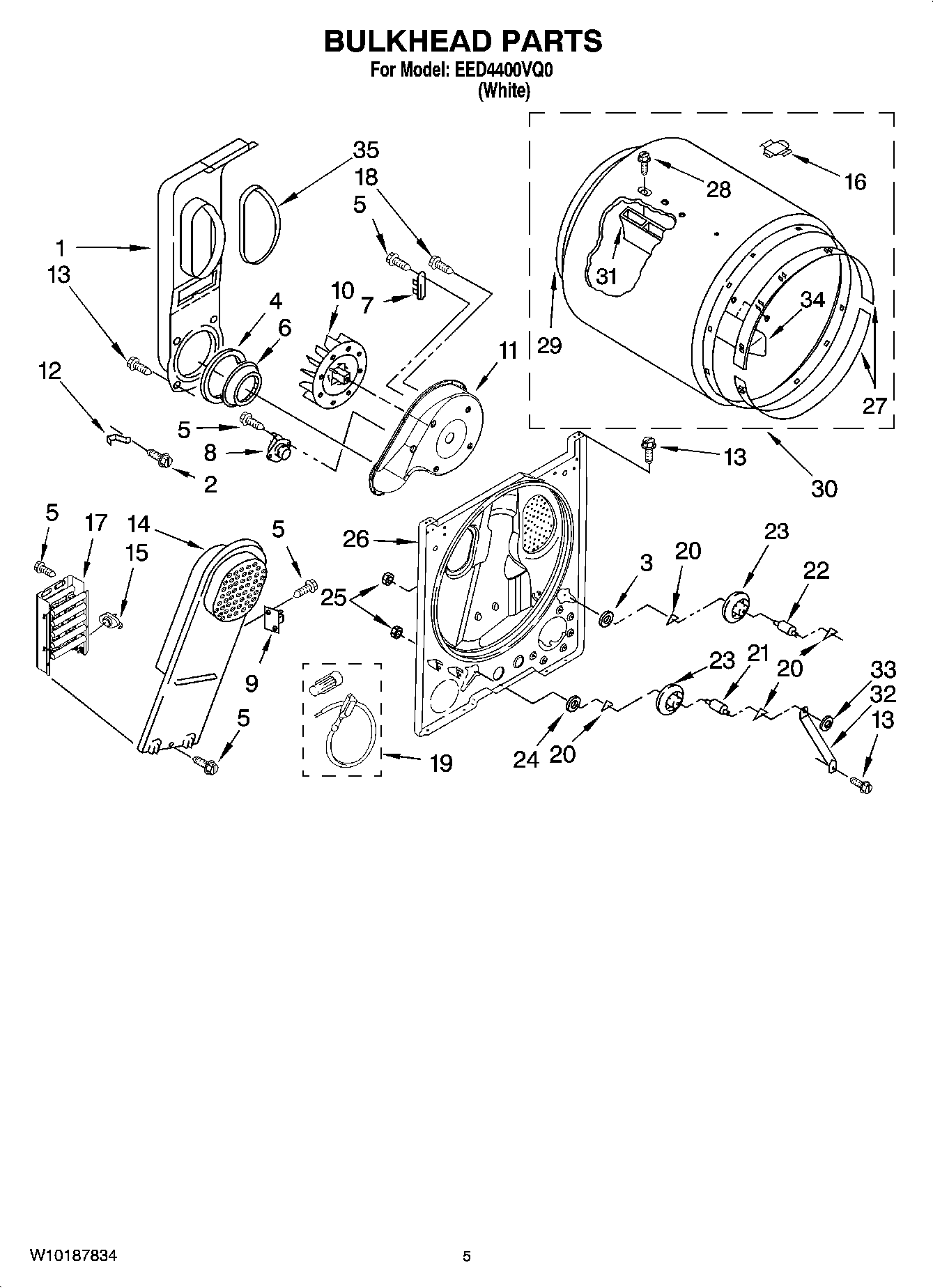

EED4400VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4392065 Whirlpool Dryer Maintenance Kit
	W11224254 Whirlpool Test Kit
	3404351 Whirlpool Dryer Rack
	ACCESSORY PARTS
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	8066086 Whirlpool Plug
17	279838 Whirlpool Dryer Heating Element 5400W
18	WP488729 Whirlpool Refrigerator Door Screw
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	SHAFT SUPPORT ROLLER DRYER
22	SHAFT SUPPORT ROLLER DRYER
23	349241T Whirlpool Dryer Drum Support Roller Kit
24	WP348197 Whirlpool Washer Assembly
25	WP3359452 Whirlpool Nut
26	W11178667 Whirlpool Bulkhead Assembly
27	279441 Whirlpool Front Bearing Ring
28	WPW10109200 Whirlpool Screw
29	W10612022 Whirlpool Felt Seal
30	W10899578 Whirlpool Dryer Drum Assembly
31	BAFFLE-DRM
32	W11684613 Whirlpool Bracket
33	WP90296 Whirlpool Clip
34	WP3403636 Whirlpool Drum Baffle
35	SEAL
