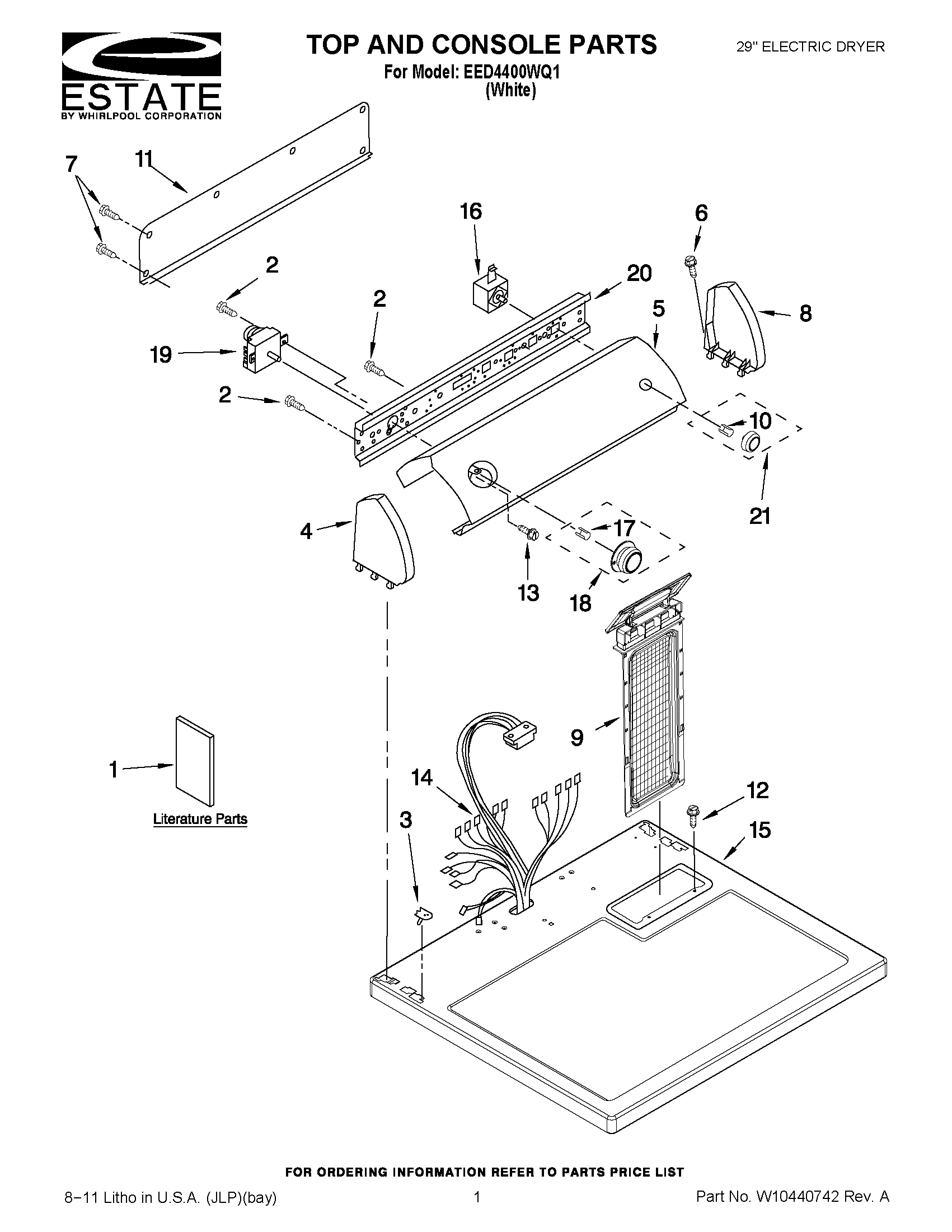

EED4400WQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
2WP90767 Whirlpool Screw
3WP357213 Whirlpool Hinge Stopper
5Panel, Control
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9WPW10717210 Whirlpool Dryer Lint Screen Filter
10WP8536939 Whirlpool Spring Clip
11W10103406 Whirlpool Rear Panel
12W11693756 Whirlpool Screw Assembly
133400859 Whirlpool Screw
14WPW10450292 Whirlpool Wire Harness
15Top
16WP3977456 Whirlpool Start Switch
17WP688805 Whirlpool Spring Clip
18WP8557455 Whirlpool Knob Timer
19WP8299778 Whirlpool Timer
20Bracket, Control
21Knob, Push-To-Start
