EER3002D00CC CONTROL PANEL

EER3002D00CC CONTROL PANEL

Written by

in

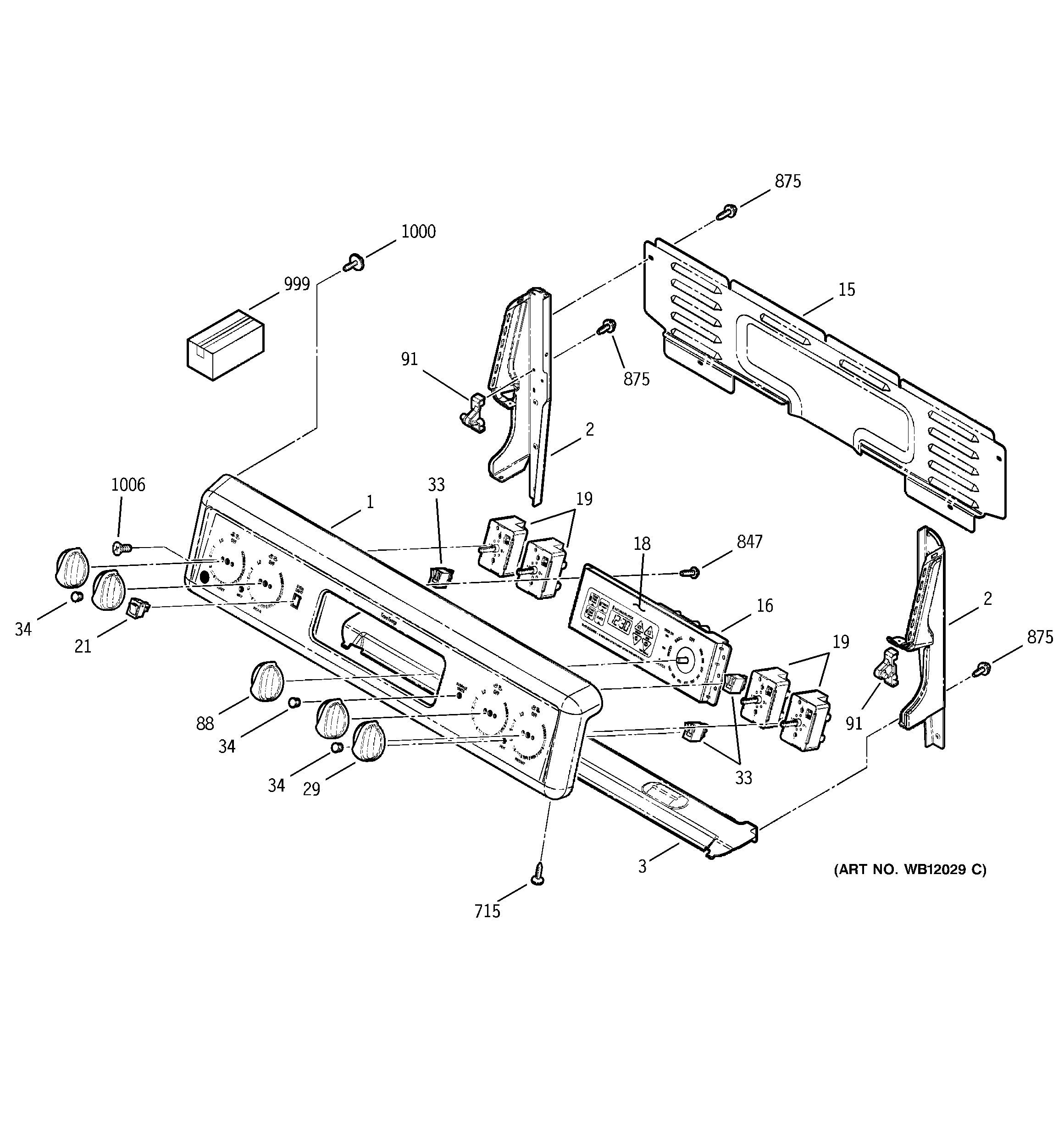

EER3002D00CC CONTROL PANEL

Products

PositionProduct
1GEN WB36T10362
2END CAP LT BQ
2END CAP RT BQ
3GEN WB02T10022
15GEN WB34T10020
16WB27T10230 GE Oven Control Board
18GEN WB27T10240
19INFINITE CONTROL SWITCH
19WB24T10011 GE Oven Infinite Switch
19WB24T10029 GE Oven Infinite Burner Switch
19WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
21WB24T10053 GE Oven Rocker Switch
29INF KNOB (GE) BSQT
33WB27T10626 GE Oven Indicator Light Pilot
34JEWEL
88GEN WB03T10128
91GEN WB10T10002
715WD2X434 GE Dishwasher Trim Screw
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 49-80091
999MANUAL MINI & WD ASM
999GEN 31-10414
999GEN 31-10463
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
