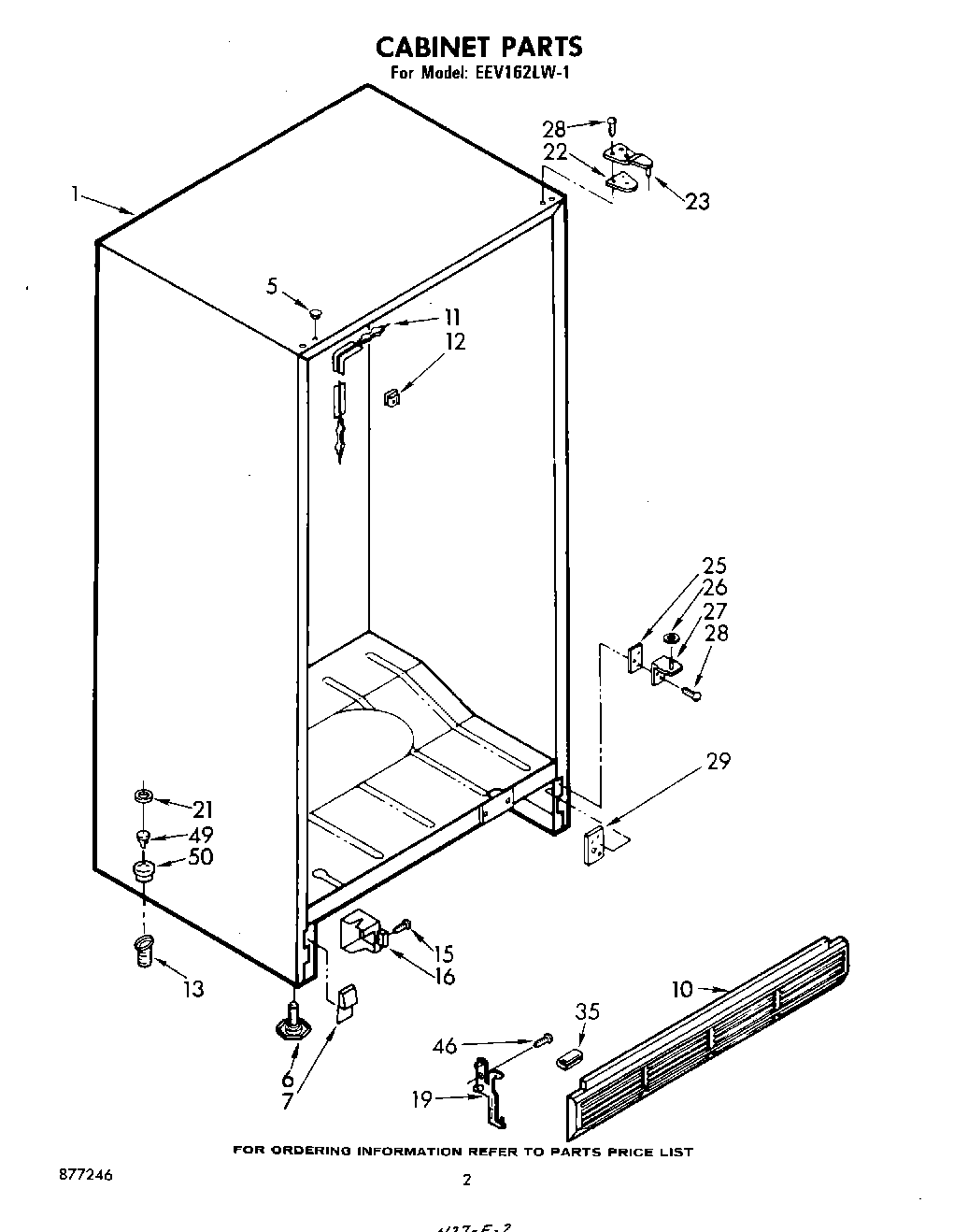

| 1 | Cabinet (Not A Serviceable Part) |
| 5 | Hole Plug (2) (White) |
| 6 | W11117769 Whirlpool Refrigerator Leveler |
| 7 | Corner, Filler ( |
| 10 | Grille |
| 11 | Heater, Stile |
| 12 | Clip (Repair) |
| 13 | Fitting, Drain |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | WPL 549947 |
| 19 | WPL 844614 |
| 21 | Drain Cover |
| 22 | WPL 836151 |
| 23 | Hinge & Shim (Top) |
| 25 | Shim, Bottom Hinge |
| 26 | WP487802 Whirlpool Refrigerator Washer |
| 27 | Hinge (Bottom) |
| 28 | Screw (Repair) |
| 28 | WP999367 Whirlpool Refrigerator Screw |
| 29 | Tap Plate |
| 35 | Bumper, Grille |
| 46 | W11624204 Whirlpool Screw |
| 49 | Drain Cap |
| 50 | Drain Ferrule |
