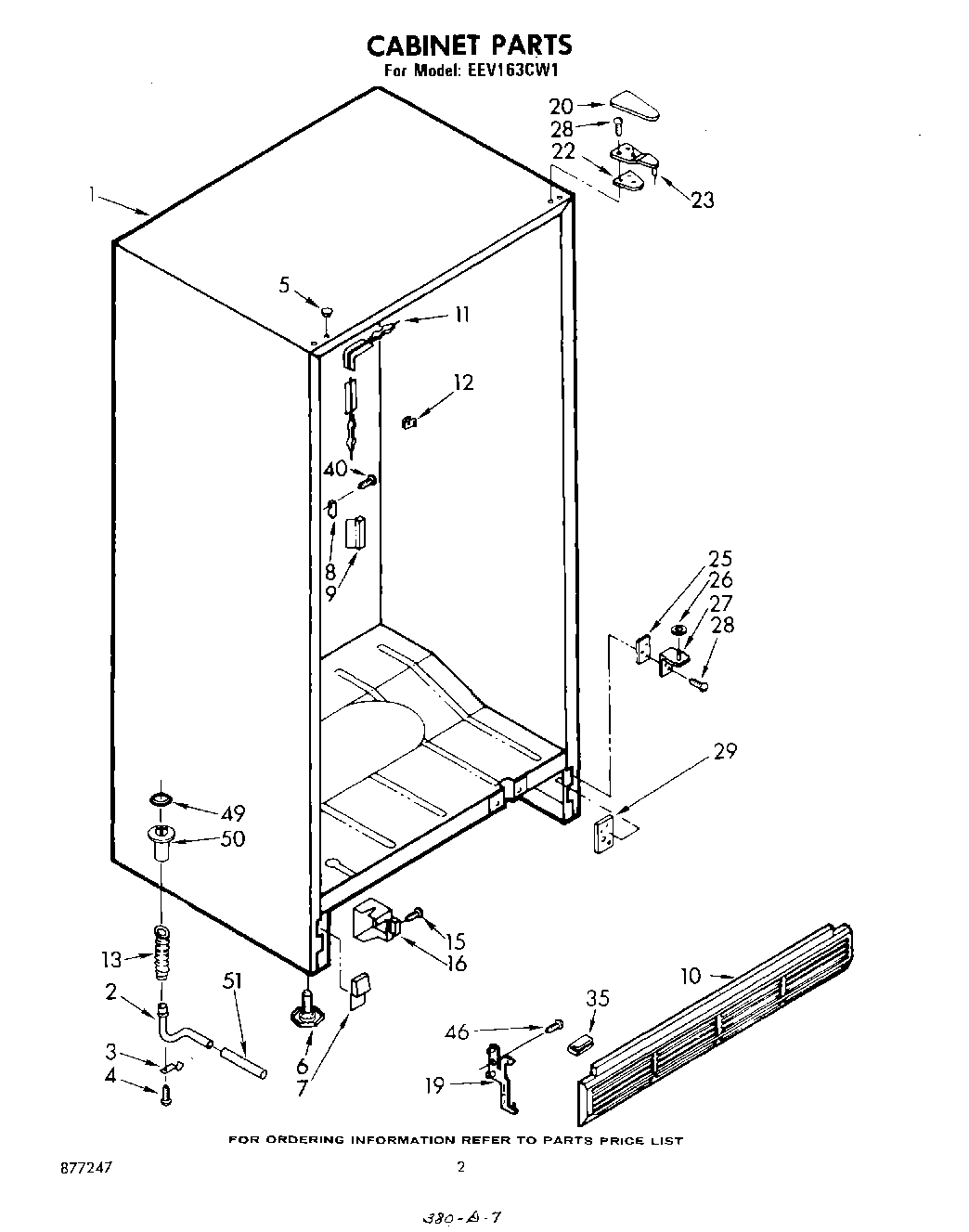

EEV163CW1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Extension, Fitting
3	Cup, Drain Extension
4	Screw, 8-32 x 1/2
5	Avocado
5	Hole Plug (New Avocado)
5	Hole Plug (Coffee)
5	Copper
5	Hole Plug (2) (Golden Harvest)
5	Gold
5	Hole Plug (2) (White)
5	Hole Plug (2) (Almond)
6	W11117769 Whirlpool Refrigerator Leveler
7	Filler, Grille
8	Bracket, Strike
9	Cover, Strike
10	Grille
11	Heater, Stile
12	Clip (Repair)
13	Fitting, Drain
15	WP488729 Whirlpool Refrigerator Door Screw
16	WPL 549947
19	WPL 844614
20	Cover, Hinge (Almond)
20	COVER, HINGE (GOLD)
20	Hinge, Cover (Coffee)
20	Hinge Cover (New Avocado)
20	Cover, Hinge (Avocado)
20	Cover, Hinge (Copper)
20	Hinge Cover (Golden Harvest)
20	1119787 Whirlpool Refrigerator Hinge Cover
22	WPL 836151
23	Hinge & Shim (Top)
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Hinge (Bottom)
28	Screw (Repair)
28	WP999367 Whirlpool Refrigerator Screw
29	Tap Plate
35	Bumper, Grille
40	WP489128 Whirlpool Refrigerator Screw
46	W11624204 Whirlpool Screw
49	Drain Cover
50	Drain, Ferrule Cap
51	Drain Hose
