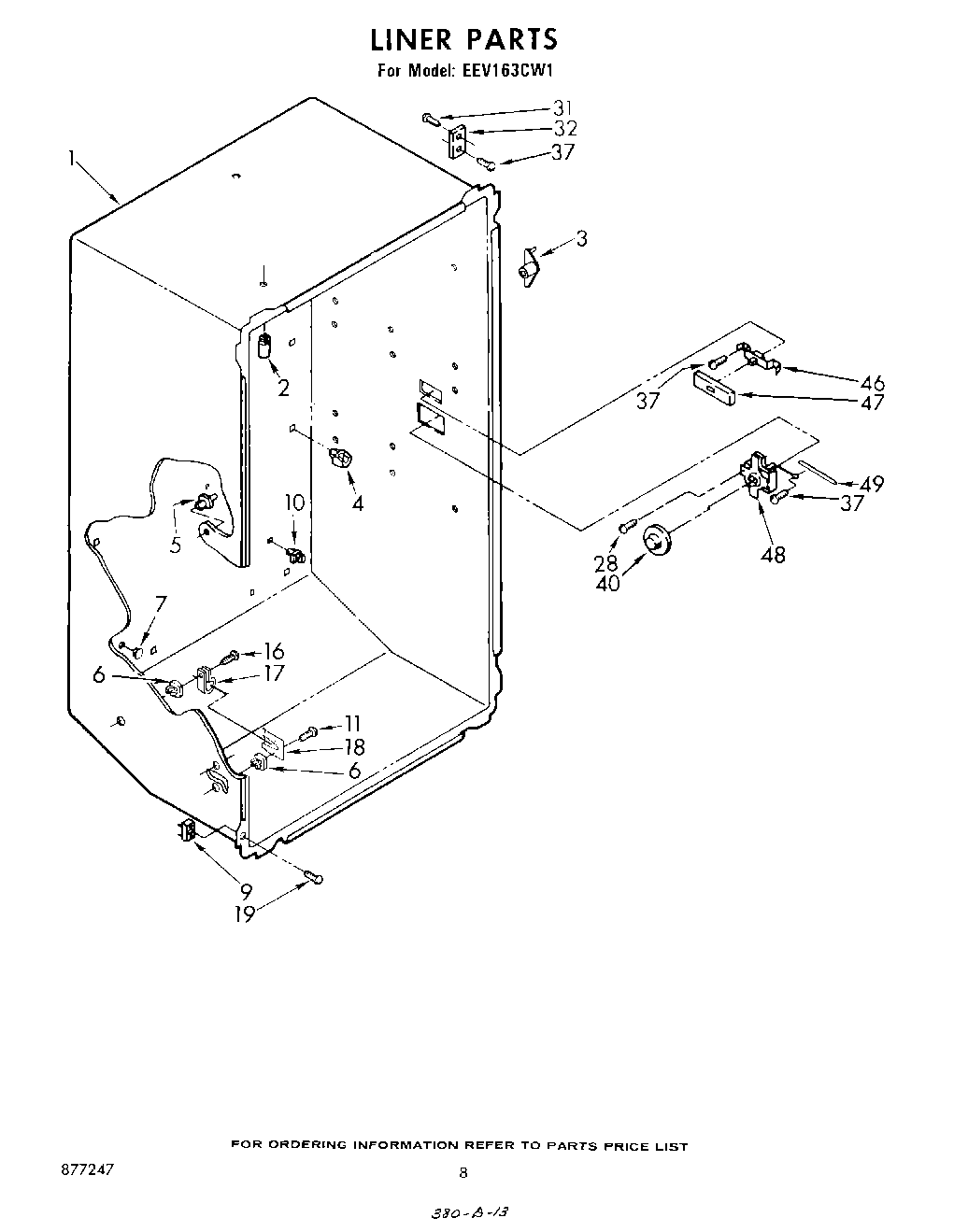

| 1 | Liner (Not A Serviceable Part) |
| 2 | Spacer, Evaporator (3) |
| 3 | Spacer, Liner (2) |
| 4 | Stud, Shelf (6) |
| 5 | Stud, Shelf (6) |
| 6 | Grommet |
| 7 | Hole, Plug |
| 9 | Spacer, Liner (8) |
| 10 | Stud, Hook (2) |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Clamp, Tube |
| 18 | Cover, Tub Entry |
| 19 | WP488163 Whirlpool Refrigerator Screw |
| 19 | Screw (Repair) |
| 28 | W11624204 Whirlpool Screw |
| 31 | Screw, 8-32 x 1-1/2 |
| 32 | Strap, Ground |
| 37 | WP489128 Whirlpool Refrigerator Screw |
| 40 | Knob |
| 46 | Bracket & Switch Assembly |
| 47 | Escutcheon, Power Saver |
| 48 | 4389249 Whirlpool Refrigerator Thermostat |
| 49 | WP2196003 Whirlpool Refrigerator Bar Riser |
