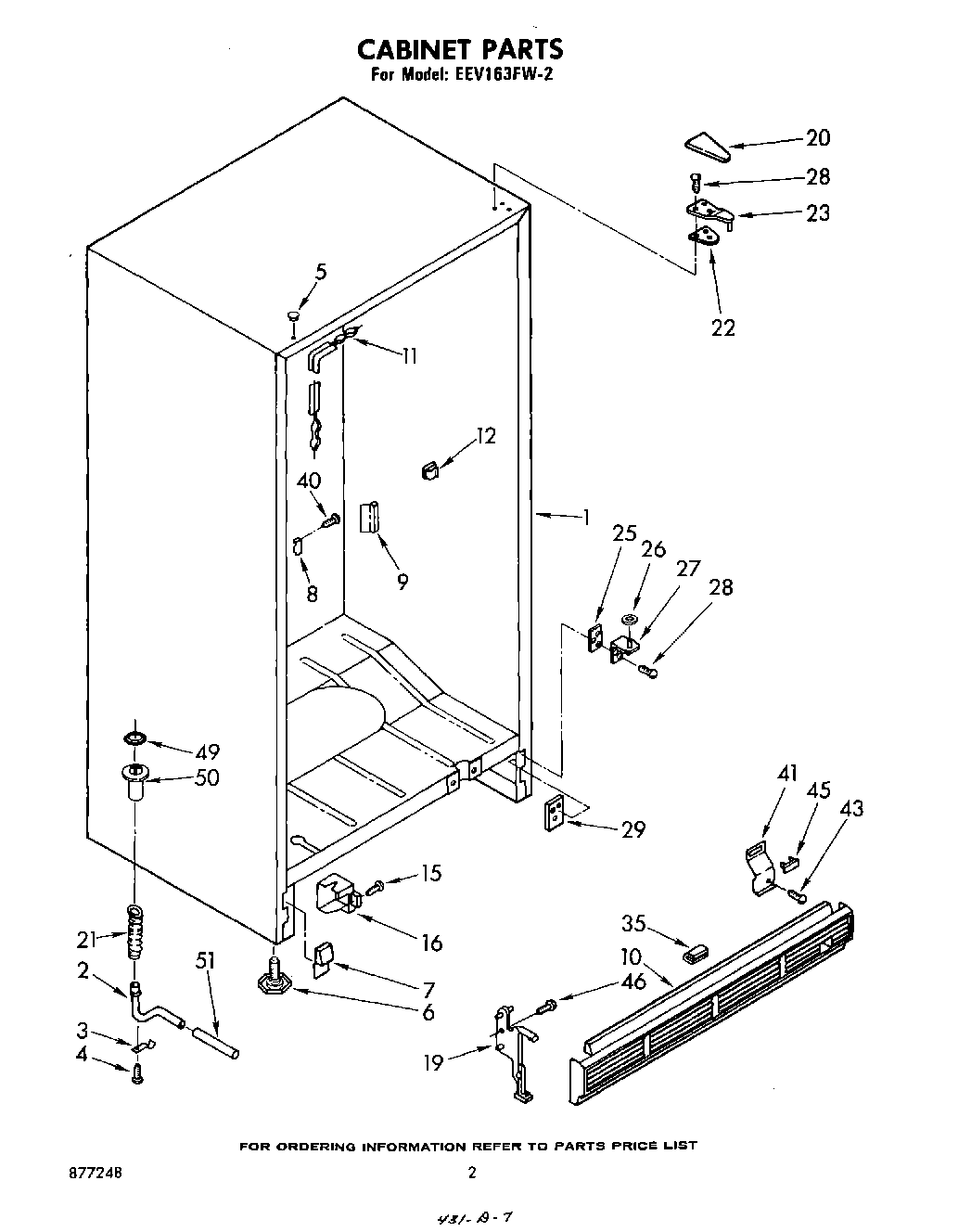

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Extension, Fitting |
| 3 | Cup, Drain Extension |
| 4 | Screw, 8-32 x 1/2 |
| 5 | Hole Plug (2) (White) |
| 5 | Hole Plug (New Avocado) |
| 5 | Hole Plug (Coffee) |
| 5 | Hole Plug (2) (Golden Harvest) |
| 5 | Copper |
| 5 | Hole Plug (2) (Almond) |
| 5 | Gold |
| 5 | Avocado |
| 6 | W11117769 Whirlpool Refrigerator Leveler |
| 7 | Filler, Grille |
| 8 | Bracket, Strike |
| 9 | Cover, Strike |
| 10 | Grille |
| 11 | Heater, Stile |
| 12 | Clip (Repair) |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | WPL 549947 |
| 19 | WPL 844614 |
| 20 | Cover, Hinge (Avocado) |
| 20 | COVER, HINGE (GOLD) |
| 20 | Cover, Hinge (Copper) |
| 20 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 20 | Hinge, Cover (Coffee) |
| 20 | Hinge Cover (Golden Harvest) |
| 20 | Hinge Cover (New Avocado) |
| 21 | Fitting, Drain |
| 22 | WPL 836151 |
| 23 | Hinge & Shim (Top) |
| 25 | Shim, Bottom Hinge |
| 26 | WP487802 Whirlpool Refrigerator Washer |
| 27 | Hinge (Bottom) |
| 28 | Screw (Repair) |
| 28 | WP999367 Whirlpool Refrigerator Screw |
| 29 | Tap Plate |
| 35 | Bumper, Grille |
| 40 | WP489128 Whirlpool Refrigerator Screw |
| 41 | Bracket, Pilot Light |
| 43 | Screw, 8-32 x 3/8 |
| 45 | Light, Pilot |
| 46 | W11624204 Whirlpool Screw |
| 49 | Drain Cover |
| 50 | Drain, Ferrule Cap |
| 51 | Drain Hose |
