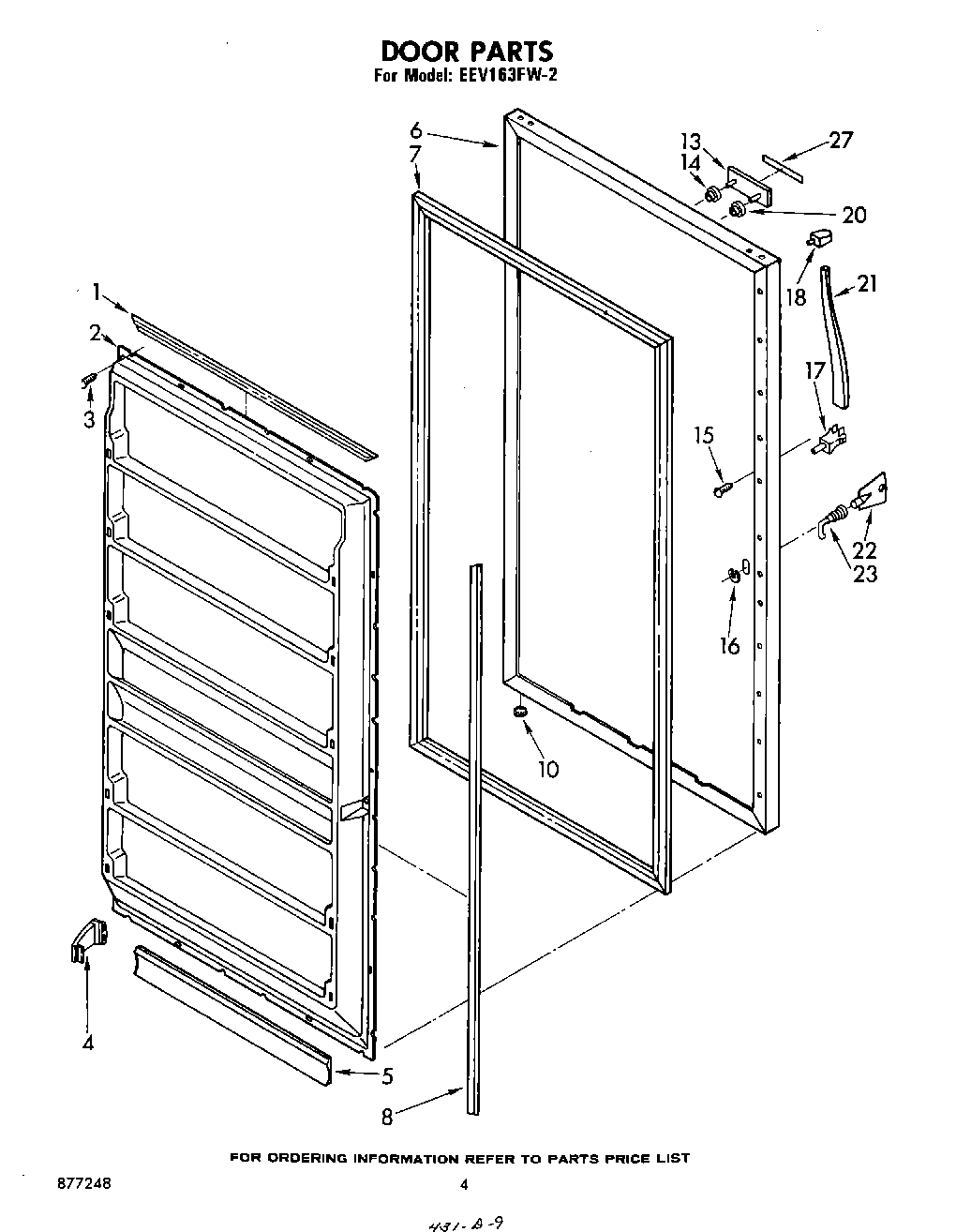

EEV163FW2 03 – DOOR , LIT/OPTIONAL

EEV163FW2 03 – DOOR , LIT/OPTIONAL

Written by

in

EEV163FW2 03 – DOOR , LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
WPL 35093
350942 Whirlpool Spray Paint
Leveler (Thinner) (2oz.)
Golden Harvest
350956 Whirlpool Spray Assembly
1Retainer, Top & Bottom (2)
2Panel
3SCREW
3W11624204 Whirlpool Screw
4Retainer, Door Trim (2)
5Trim, Shelf
6Door, Exterior (Golden Harvest)
6Door, Exterior (Almond)
6Door, Exterior (New Avocado)
6Door, Exterior (Golde)
6Door, Exterior (Coffee)
6Door, Exterior (Copper)
6Door, Exterior (Avocado)
6Door, Exterior (White)
72188439A Whirlpool Refrigerator Door Gasket
8Retainer Side, Gasket
10Hole Plug (2)
13Escutcheon, Nameplate
14Stud, Anchor
15Screw (2)
16Clip, Spring
17WPL 982947
18WPL 982948
20CLIP, TUBULAR
21WPL 982978
22WP842177 Whirlpool Refrigerator Door Key
23Lock
27Almond (Uncut)
27WP72107 Whirlpool Touchup
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Golden Harvest (Uncut)
27WPL 988087
2772017 Whirlpool Appliance Touch-Up Paint White
2772109 Whirlpool Dacor Avocado Touch-Up Paint
27799344 Whirlpool Refrigerator Paint
27WPL 842211
27WPL 877248
27WPL 934945
27212643 Whirlpool Refrigerator Permagum Sealer
27511873 Whirlpool Refrigerator Paint
27606755 Whirlpool Refrigerator Bag
2772032 Whirlpool Touch Up Paint Black
27WPL 799833
27Paint, Touch-Up 1/2 Oz. (Coffee)
27WPL 799832
27Enamel, Coffee (1 Qt. Uncut)
27Enamel, New Avocado (1 Qt. Uncut)
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27TAPE, VINYL (3/4 X 108“)
27WPL 799351
27WP542638 Whirlpool Refrigerator Grease
27WPL 511881
27Book, How To Freeze
27Enamel, Black (1 Qt. Uncut)
27876370 Whirlpool Refrigerator Insulation
27WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
