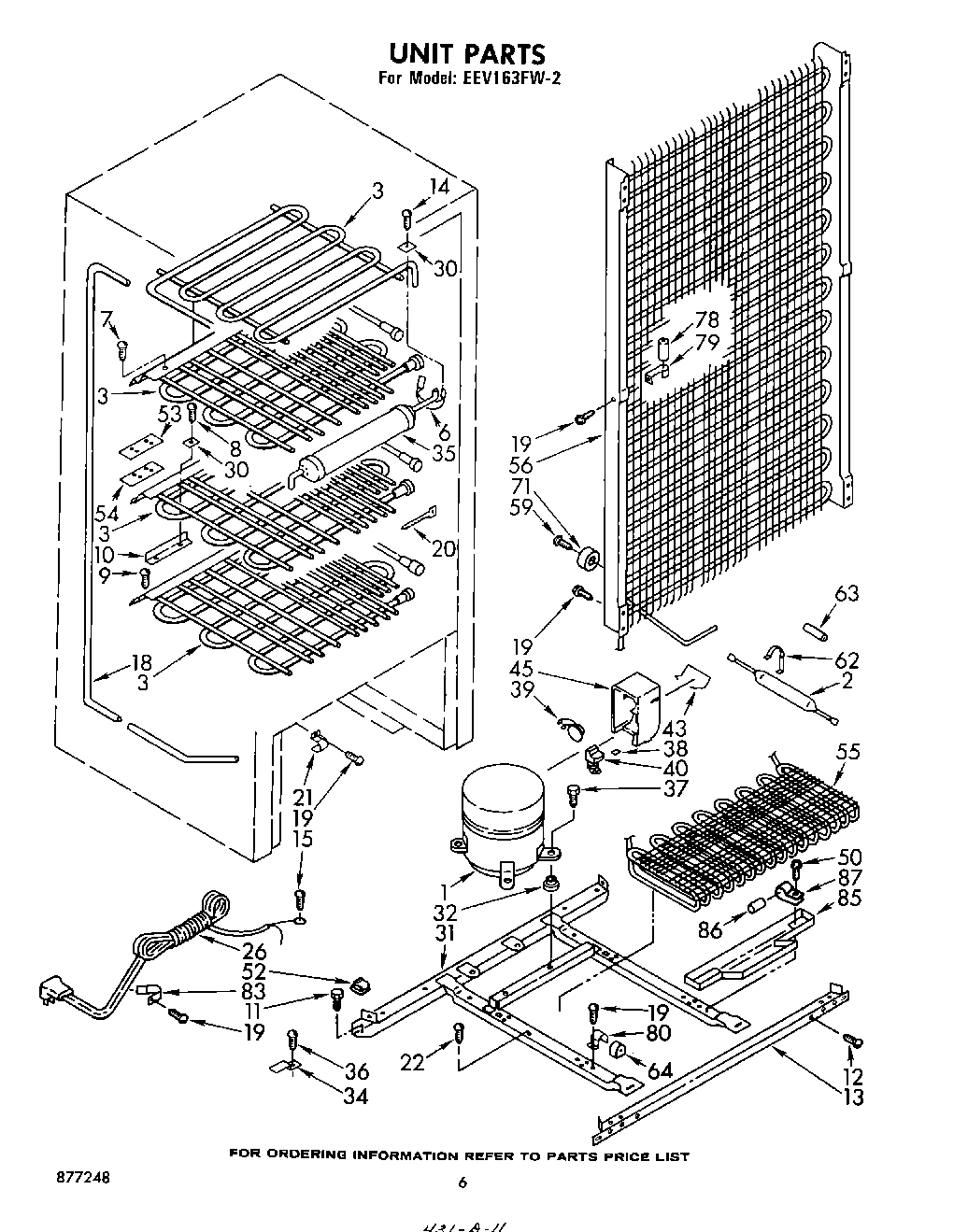

EEV163FW2 04 – UNIT

Products

Position	Product
1	Compressor
2	W10843121 Whirlpool Refrigerator Tube
3	Shelf, 2nd
3	Shelf, Bottom
3	Shelf, Top
3	Shelf, 3rd
6	Clamp, Header
7	WP308685 Whirlpool Microwave Screw
8	Screw, 8-32 x 7/16
9	Screw, 8-32 x 1/2
10	Clip
11	489340 Whirlpool Refrigerator Screw
12	Screw, 1/4-28 x 1/2 (2)
13	Rail, Front
14	WP487353 Whirlpool Refrigerator Screw
15	WP489128 Whirlpool Refrigerator Screw
18	Exchanger, Heat
19	W11624204 Whirlpool Screw
19	Screw (Repair)
20	Strap
21	Clip, Tube
22	303776 Whirlpool Dishwasher Screw
26	Cord, Service
30	PLATE
31	Frame
32	Grommet (4)
34	Clip, Cord Plug
35	Header & Tube Assembly
36	Screw
37	Screw, 1/4-28 x 1“ (4)
38	Bumper
39	Overload
40	Relay
43	Spring
45	Case, Relay
50	WPW10141625 Whirlpool Refrigerator Screw Assembly
52	Clip, Wire (2)
53	Plate, Thermostat
54	Shim, Thermostat Plate
55	Precooler
56	Condenser
59	WP488729 Whirlpool Refrigerator Door Screw
62	Drier Clamp
63	Restrictor Sleeve
64	Grommet (4)
71	Bumper, Rubber
78	Dampener
79	Clip, Dampener
80	Clamp, Tube
83	549193 Whirlpool Refrigerator Power Clamp
85	Pan, Drip
86	Dampener (2)
87	978027 Whirlpool Refrigerator Primary Valve
87	WP978025 Whirlpool Refrigerator Valve
87	VALVE, ACCESS (1/2“)
87	978030 Whirlpool Refrigerator Valve
87	VALVE, ACCESS (5/8“)
87	Clamp Tube
87	978026 Whirlpool Refrigerator Primary Valve
