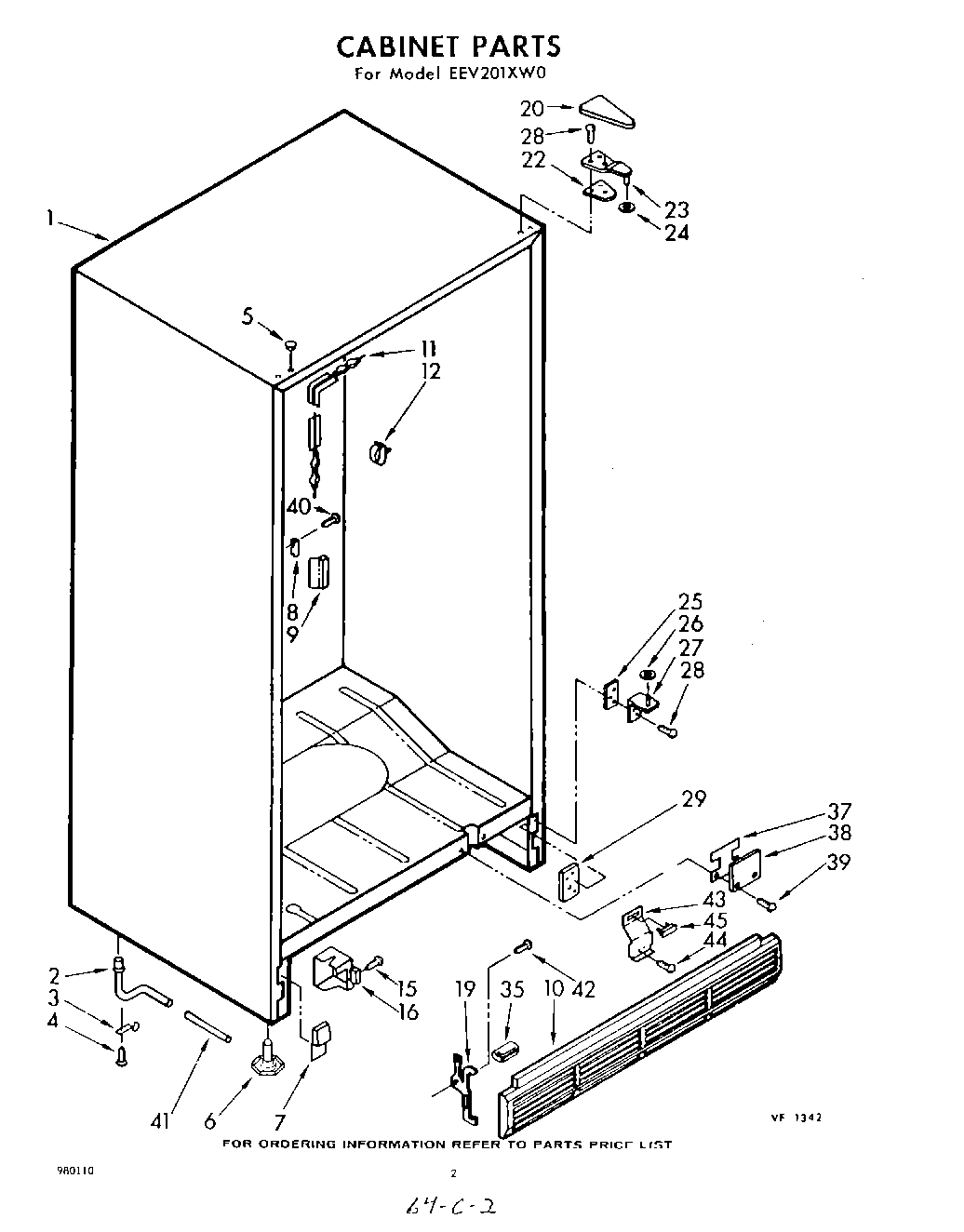

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Extension, Fitting |
| 3 | Cup, Drain Extension |
| 4 | Screw, 8-32 x 1/2 |
| 5 | Hole Plug (2) (White) |
| 5 | Gold |
| 5 | PLUG, HOLE (3) (AVOCADO) |
| 6 | Leveler (2) |
| 7 | Filler, Grille |
| 8 | STRIKE, LOCK |
| 9 | Cover, Strike |
| 10 | GRILLE, EXTERIOR |
| 11 | HEATER, STILE |
| 12 | Fastener, Wire |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | WPL 549947 |
| 19 | WPL 844614 |
| 20 | COVER, HINGE (GOLD) |
| 20 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 20 | COVER, HINGE (AVOCADO) |
| 22 | WPL 836151 |
| 23 | Hinge & Shim (Top) |
| 24 | WP487802 Whirlpool Refrigerator Washer |
| 25 | Shim, Bottom Hinge |
| 27 | Hinge (Bottom) |
| 28 | WP999367 Whirlpool Refrigerator Screw |
| 29 | Tap Plate |
| 35 | Bumper, Grille |
| 37 | BRACKET |
| 38 | PLATE, SERIAL |
| 39 | WP486754 Whirlpool Compactor Screw |
| 40 | WP489128 Whirlpool Refrigerator Screw |
| 41 | Drain Hose |
| 42 | W11624204 Whirlpool Screw |
| 43 | Bracket, Pilot Light |
| 44 | Screw, 8-32 x 3/8 |
| 45 | Light, Pilot |
| 45 | PILOT LIGHT (ALTERNATE) |
