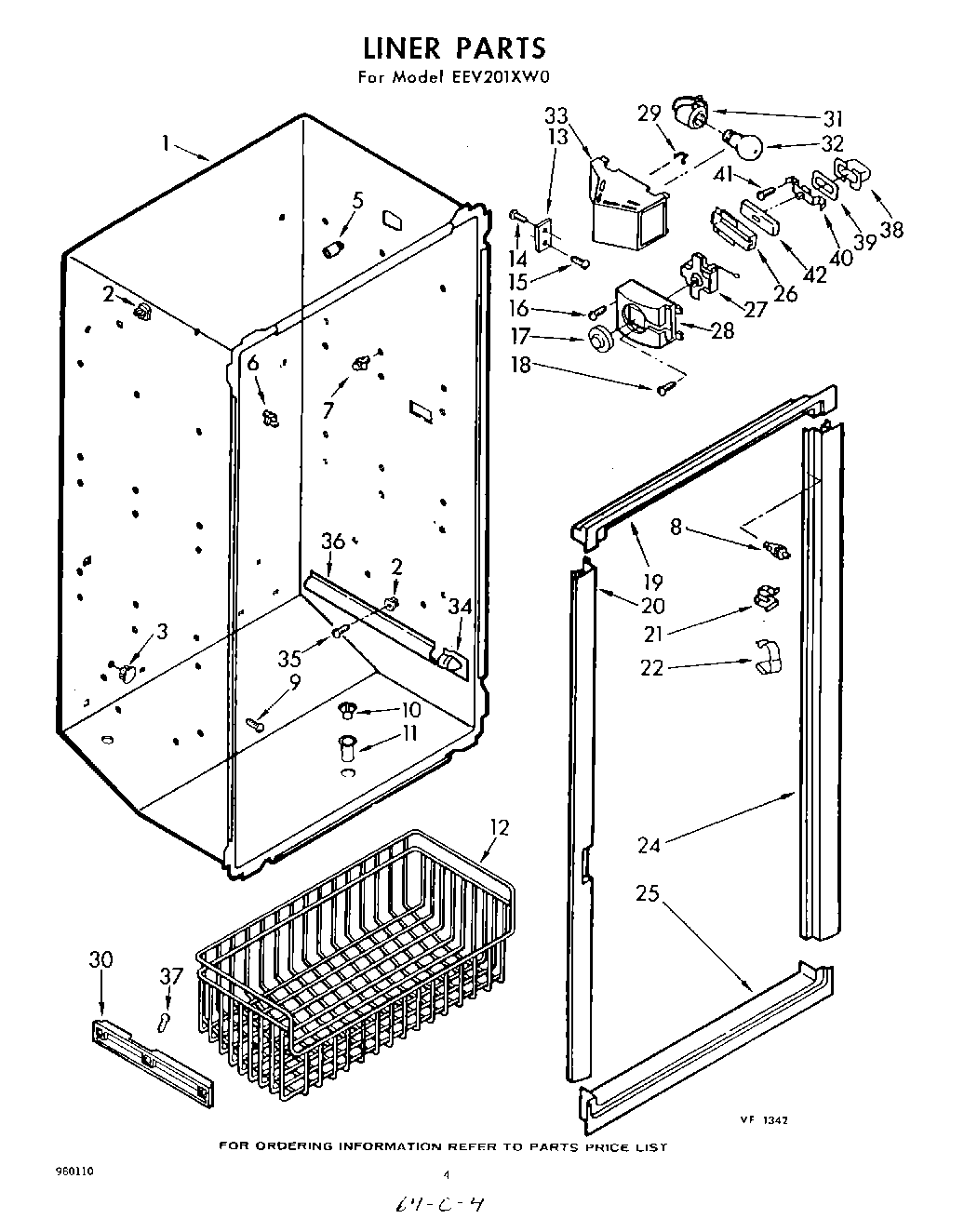

| 1 | Liner (Not A Serviceable Part) |
| 2 | Grommet |
| 3 | Hole, Plug |
| 5 | Spacer (3) |
| 6 | Stud, Shelf (6) |
| 7 | Stud, Shelf (6) |
| 8 | Switch, Light |
| 9 | WP488163 Whirlpool Refrigerator Screw |
| 10 | Cap, Drain |
| 11 | Drain Ferrule |
| 12 | Basket, Slide Out |
| 13 | Strap, Ground |
| 15 | SCREW |
| 17 | Knob, Thermostat |
| 18 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Breaker, Top |
| 20 | Breaker, L.S. |
| 21 | Breaker, Clip |
| 22 | Clip, Wrapper (23) |
| 24 | Breaker, R.S. |
| 25 | Breaker, Bottom |
| 26 | Cover, Insulation |
| 27 | 4389248 Whirlpool Refrigerator Thermostat |
| 28 | ESCUTCHEON, THERMOSTAT |
| 29 | Speed Clip, Light Lens (3) |
| 30 | Track, Shelf (R.S.) |
| 30 | Track, Shelf (L.S.) |
| 31 | 4387478 Whirlpool Refrigerator Light Socket |
| 32 | RANGE ONLY 40W 120V APPL BULB |
| 33 | Shield, Light (Freezer Compartment) |
| 34 | Cover, Tub Entry |
| 35 | Screw, 8-15 x 1/2 (4) |
| 36 | Cover, Tube |
| 37 | W11693756 Whirlpool Screw Assembly |
| 38 | Container, Switch |
| 39 | Gasket, Container |
| 40 | Bracket & Switch Assembly |
| 41 | WP489128 Whirlpool Refrigerator Screw |
| 42 | ESCUTCHEON, POWER SAVER |
