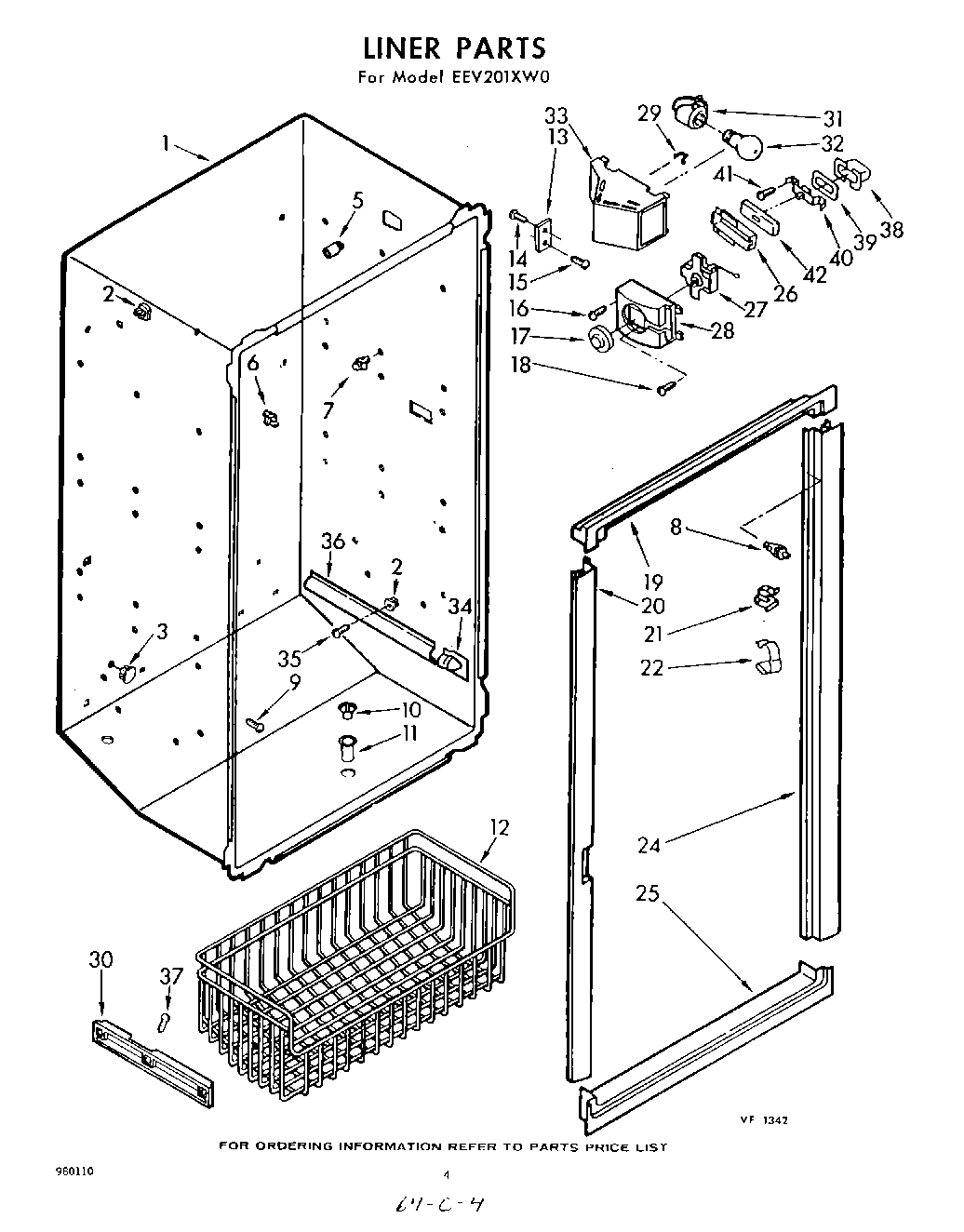

EEV201XW0 03 – LINER

Written by

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
3	Hole, Plug
5	Spacer (3)
6	Stud, Shelf (6)
7	Stud, Shelf (6)
8	Switch, Light
9	WP488163 Whirlpool Refrigerator Screw
10	Cap, Drain
11	Drain Ferrule
12	Basket, Slide Out
13	Strap, Ground
15	SCREW
17	Knob, Thermostat
18	WP965173 Whirlpool Dishwasher Screw
19	Breaker, Top
20	Breaker, L.S.
21	Breaker, Clip
22	Clip, Wrapper (23)
24	Breaker, R.S.
25	Breaker, Bottom
26	Cover, Insulation
27	4389248 Whirlpool Refrigerator Thermostat
28	ESCUTCHEON, THERMOSTAT
29	Speed Clip, Light Lens (3)
30	Track, Shelf (L.S.)
30	Track, Shelf (R.S.)
31	4387478 Whirlpool Refrigerator Light Socket
32	RANGE ONLY 40W 120V APPL BULB
33	Shield, Light (Freezer Compartment)
34	Cover, Tub Entry
35	Screw, 8-15 x 1/2 (4)
36	Cover, Tube
37	W11693756 Whirlpool Screw Assembly
38	Container, Switch
39	Gasket, Container
40	Bracket & Switch Assembly
41	WP489128 Whirlpool Refrigerator Screw
42	ESCUTCHEON, POWER SAVER
