EEV201XY0 04 – DOOR , LIT/OPTIONAL

EEV201XY0 04 – DOOR , LIT/OPTIONAL

Written by

in

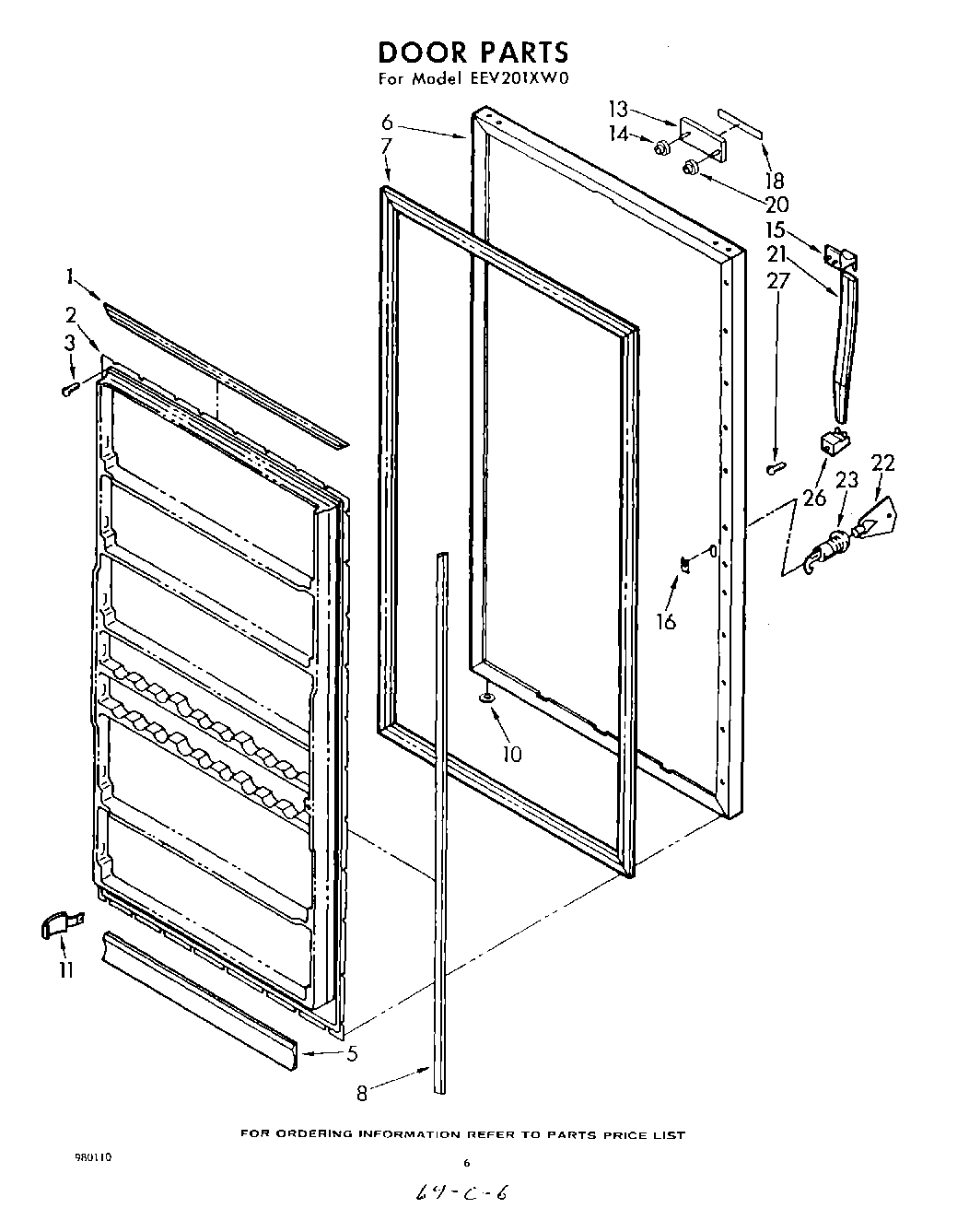

EEV201XY0 04 – DOOR , LIT/OPTIONAL

Products

PositionProduct
1Retainer, Gasket Top
2PANEL, INTERIOR DOOR
3W11624204 Whirlpool Screw
5Trim, Shelf (5)
6PANEL, EXTERIOR DOOR (GOLD)
6PANEL, EXTERIOR DOOR (AVOCADO)
6PANEL, EXTERIOR DOOR (WHITE)
72188438A Whirlpool Refrigerator DOR Gasket
8Retainer Side, Gasket
10Hole Plug (2)
11WP849996 Whirlpool Refrigerator Endcap Trim
13Escutcheon, Nameplate
14CLIP, TUBULAR
15WPL 982947
16Clip, Spring
18WPL 842211
20CLIP, TUBULAR
21WPL 982978
22WP842177 Whirlpool Refrigerator Door Key
23Lock
26WPL 982948
27511873 Whirlpool Refrigerator Paint
27ENAMEL, AVOCADO (HI-LITE) (SHADED AREA) (1 PT. UNCUT)
27350930 Whirlpool White Spray Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27606755 Whirlpool Refrigerator Bag
27WPL 833503
27WPL 833504
27WPL 980110
27WPL 984937
27799344 Whirlpool Refrigerator Paint
27212643 Whirlpool Refrigerator Permagum Sealer
27350942 Whirlpool Spray Paint
27ENAMEL, AVOCADO (BASE COAT) (1 QT. UNCUT)
27KIT, BRUSH TOUCH-UP (HARVEST GOLD) (HI-LITE)
27KIT, BRUSH TOUCH-UP (HARVEST GOLD) (BASE)
27285006 Whirlpool Spray
2772032 Whirlpool Touch Up Paint Black
27WPL 799833
27Leveler (Thinner) (2oz.)
27WPL 799832
27Enamel, Black (1 Qt. Uncut)
27WPL 799351
27WP505587 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27WPL 511881
27Book, How To Freeze
27Screw (2)
27KIT, BRUSH TOUCH-UP (AVOCADO) (BASE)
27KIT, BRUSH TOUCH-UP (AVOCADO) (HI-LITE)
27WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
