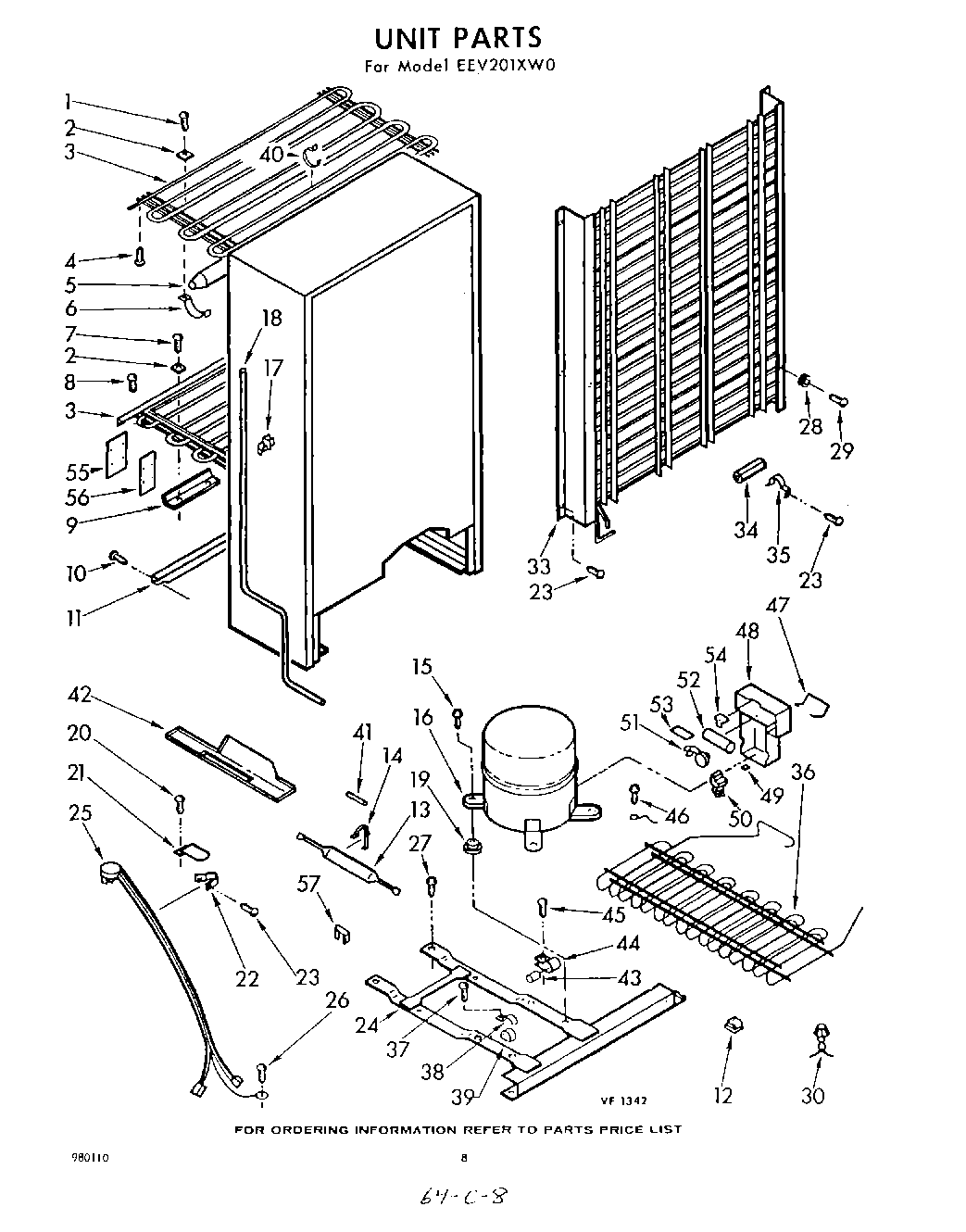

EEV201XY0 05 – UNIT

Products

Position	Product
1	SCREW
2	PLATE
3	EVAPORATOR SHELF ASSEMBLY (5TH)
3	EVAPORATOR SHELF ASSEMBLY (2ND)
3	EVAPORATOR SHELF ASSEMBLY (3RD)
3	EVAPORATOR SHELF ASSEMBLY (TOP)
4	SCREW
5	HEADER & TUBE ASSEMBLY
6	Clamp, Header
7	Screw, 8-32 x 7/16
8	WP308685 Whirlpool Microwave Screw
9	Clip
10	489340 Whirlpool Refrigerator Screw
11	Rail, Front
12	Clip, Wire (2)
13	W10843121 Whirlpool Refrigerator Tube
14	Drier Clamp
15	Screw, 1/4-28 x 1“ (4)
16	COMPRESSOR (ORIGINAL NO. 462550)
17	CLAMP, HEAT EXCHANGE
18	EXCHANGER, HEAT
19	Grommet (4)
20	Screw
21	Clip, Cord Plug
22	CLIP
24	Frame
25	Cord, Service
26	WP489128 Whirlpool Refrigerator Screw
27	Screw, 1/4-28 x 1/2 (2)
28	Bumper, Rubber
29	WP488729 Whirlpool Refrigerator Door Screw
30	Wire Connector
33	CONDENSER (INCLUDES ILLUS. 23, 34, 35)
34	DAMPENER
35	Clip, Dampener
36	Precooler
37	W11624204 Whirlpool Screw
38	Clamp, Tube
39	Grommet (4)
40	CLIP, RETAINER (2)
41	Restrictor Sleeve
42	PAN, DRIP
43	Dampener (2)
44	Clamp Tube
45	WPW10141625 Whirlpool Refrigerator Screw Assembly
46	303776 Whirlpool Dishwasher Screw
47	Spring
48	CASE, RELAY
49	Bumper
50	RELAY, STARTING
51	Overload (Used On Start Kit 482398)
52	CAPACITOR
53	PAD, RUBBER
54	CLIP, CAPACITOR
55	Plate, Thermostat
56	Shim, Thermostat Plate
57	978026 Whirlpool Refrigerator Primary Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	WP978025 Whirlpool Refrigerator Valve
57	978030 Whirlpool Refrigerator Valve
57	VALVE, ACCESS (1/2“)
57	VALVE, ACCESS (5/8“)
57	Clip, Tube
