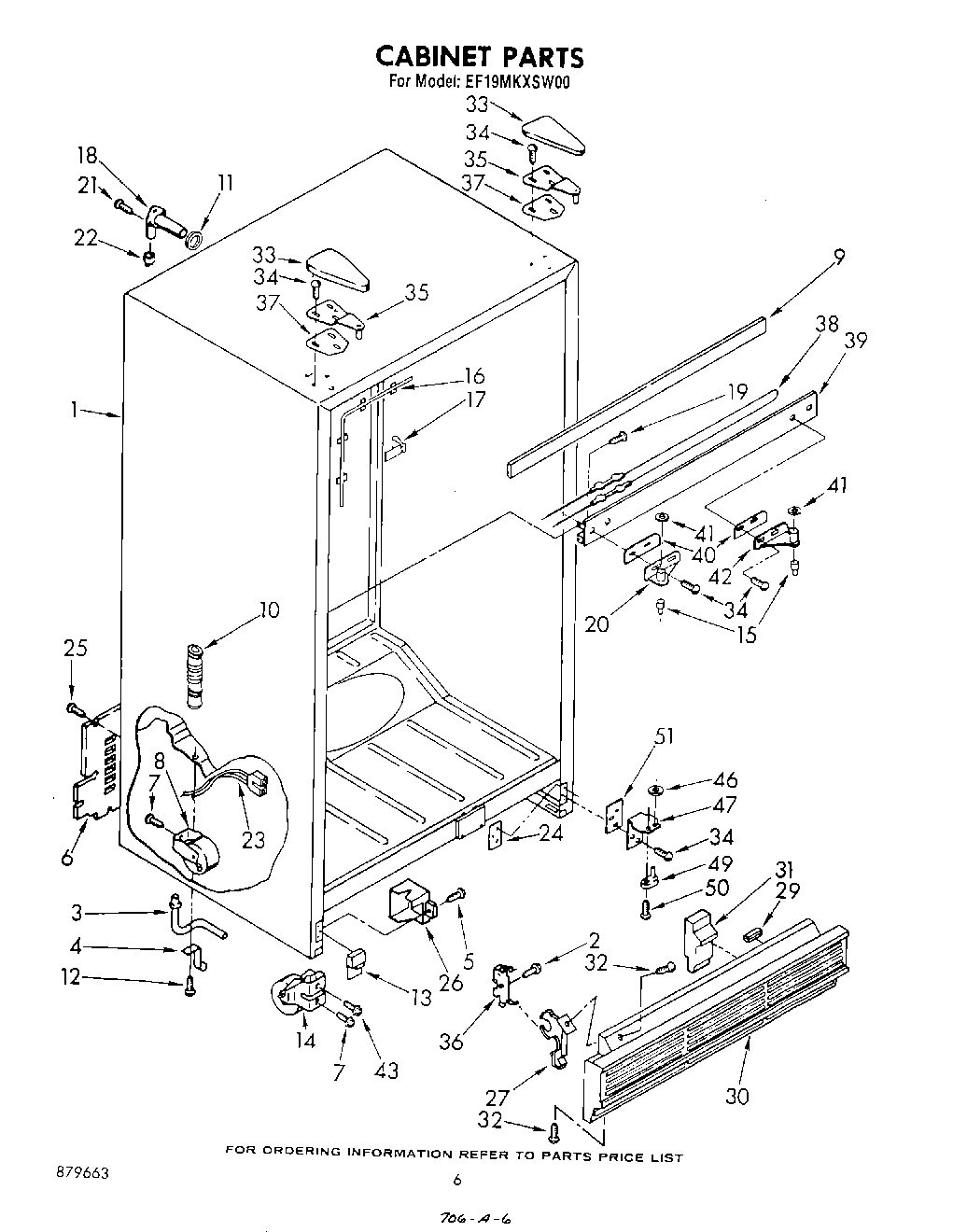

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | W11624204 Whirlpool Screw |
| 3 | Extension, Drain Fitting |
| 4 | Cup, Drain Extension |
| 5 | WP488729 Whirlpool Refrigerator Door Screw |
| 6 | WPL 850459 |
| 7 | Screw, 1/4-28 x 1/2 (2) |
| 8 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 9 | Seal Strip |
| 10 | Drain Fitting |
| 11 | WP1106508 Whirlpool Refrigerator Gasket |
| 12 | Screw, 8-32 x 1/2 |
| 13 | Filler, Corner |
| 14 | Roller, Front |
| 15 | Pin, Hinge |
| 16 | Heater, Stile |
| 17 | WPL 935663 |
| 18 | WP2196157 Whirlpool Fill Tube |
| 19 | Screw, 8 x 3/8 |
| 19 | Screw (Repair) |
| 20 | Hinge, Center (L.H.) |
| 21 | WP98165 Whirlpool Screw |
| 22 | WP487996 Whirlpool Refrigerator Cap Tube |
| 23 | WPL 548734 |
| 24 | Tap Plate |
| 26 | WPL 549947 |
| 27 | WP944224 Whirlpool Refrigerator Support |
| 29 | Bumper, Grille |
| 30 | Grille |
| 31 | WPL 836372 |
| 32 | Screw, 8-22 x 5/16 (4) |
| 33 | Hinge Cover (Golden Harvest) |
| 33 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 33 | Hinge Cover (Toast) |
| 34 | WP999367 Whirlpool Refrigerator Screw |
| 34 | Screw (Repair) |
| 35 | Hinge, Top (2) |
| 36 | WPL 989068 |
| 37 | WPL 836151 |
| 38 | Heater, Mullion |
| 39 | WPL 1100303 |
| 39 | Center Rail (Golden Harvest) |
| 39 | Center Rail (Almond) |
| 39 | WPL 1100304 |
| 39 | Center Rail (White) |
| 40 | Shim, Hinge Center |
| 41 | WP488296 Whirlpool Washer Refrigerator |
| 42 | WPL 992544 |
| 43 | Screw, 5/16-24 x 1 |
| 46 | WP487802 Whirlpool Refrigerator Washer |
| 47 | Hinge, Bottom |
| 49 | Hinge Pin, Bottom |
| 50 | Screw 10-32 x 5/16 |
| 51 | Shim, Bottom Hinge |
