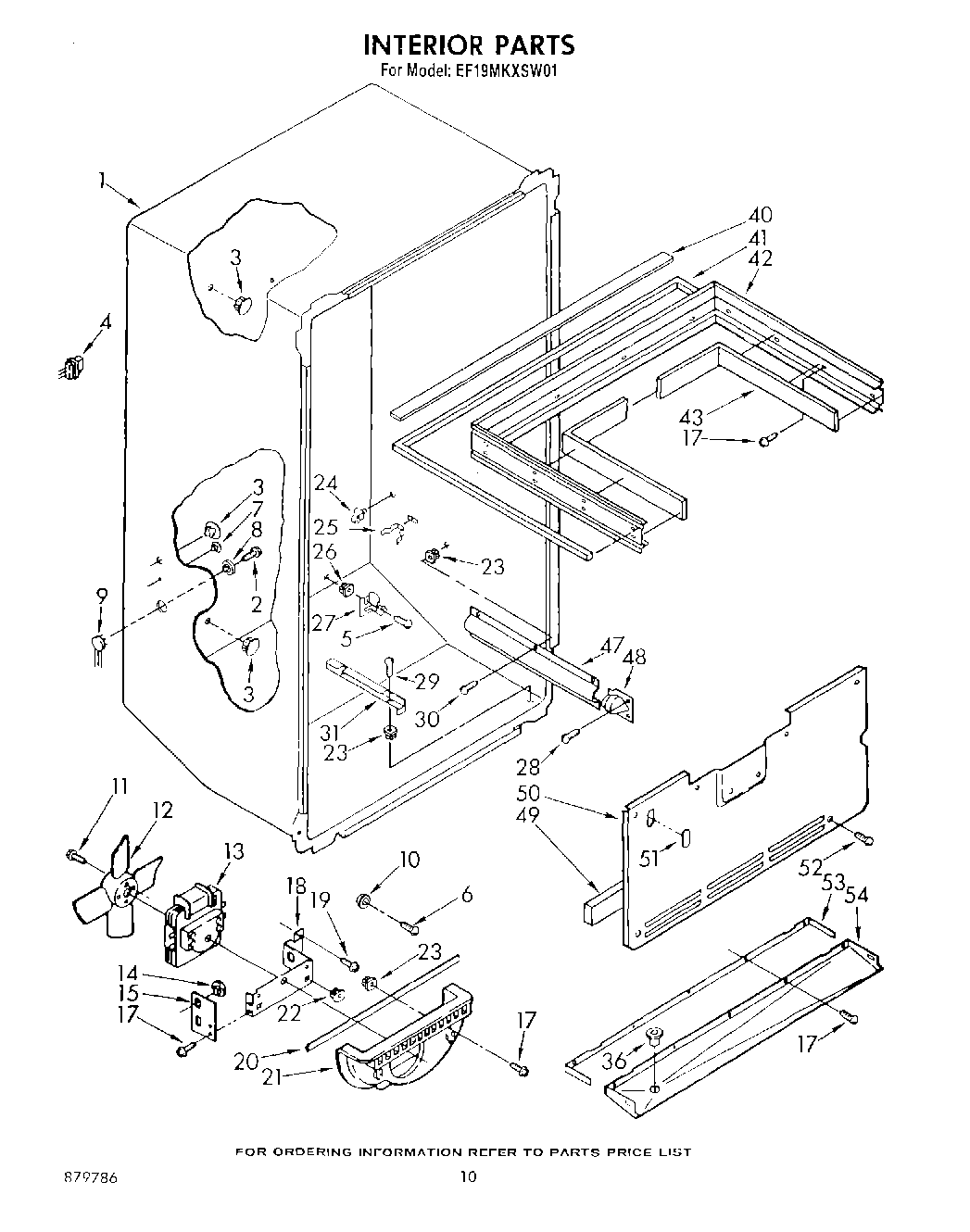

EF19MKXSW01 06 – INTERIOR

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP489069 Whirlpool Compactor Screw
3	Hole, Plug
4	Liner Wiring (Defrost Timer)
5	SCREW
6	WP488163 Whirlpool Refrigerator Screw
7	Hole, Plug
8	Receptacle Cap
9	Wiring, Ice Maker
10	Cap Nut
11	WP487887 Whirlpool Refrigerator Screw
12	Blade, Fan
13	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
14	Grommet (3)
15	Fan, Bracket Double
17	W11624204 Whirlpool Screw
18	Bracket, Fan Mounting (Single)
20	Gasket, Sealing
21	Scroll, Fan
22	Screw Grommet
23	Grommet
24	Stud, Support (2)
25	Speed Clip, Light Lens (3)
26	Grommet, Screw
27	Support, Evaporator
29	W11693756 Whirlpool Screw Assembly
30	WP488729 Whirlpool Refrigerator Door Screw
31	Slide, Basket (Left Side)
31	Slide, Basket (R.S)
36	Fitting, Drain Pan
40	Gasket, Rear
41	Gasket, Sealing
42	Track, Compartment
43	Gasket, Side (2)
47	Cover, Tube
48	Cover, Tub Entry
49	Air Baffle
50	Cover, Evaporator
51	Hole Plug, Evaporator
53	Gasket, Drain Pan
54	Pan, Drain (Also Includes Illus. 36)
