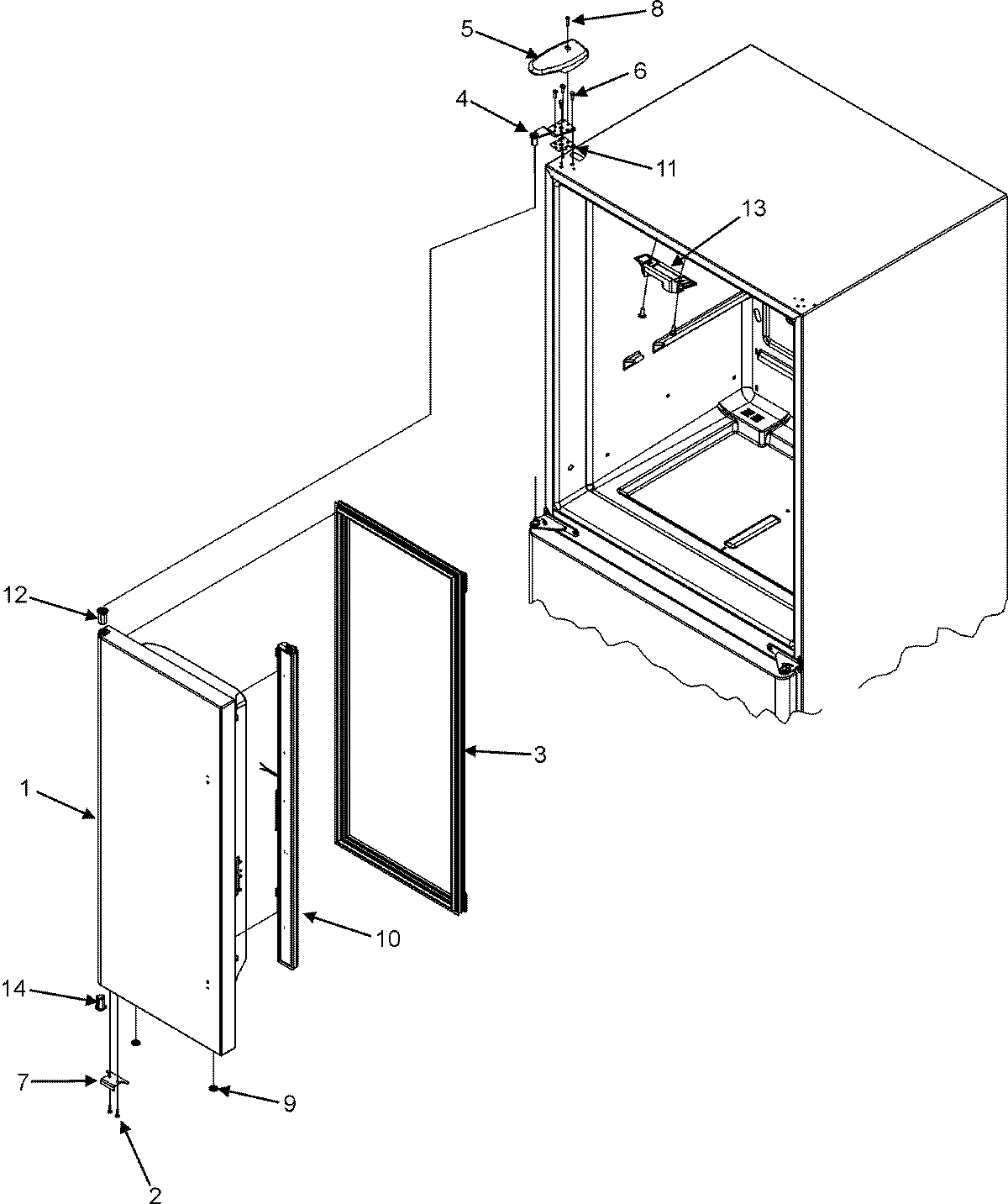

EF36BNDFSS 10 – LEFT REFRIGERATOR DOOR

EF36BNDFSS 10 – LEFT REFRIGERATOR DOOR

Written by

in

EF36BNDFSS 10 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67006590
2WP98165 Whirlpool Screw
3GASKET-FIP
4WP12566607ED Whirlpool Refrigerator Door Hinge
5MAY 12684201B
6WP489349 Whirlpool Refrigerator Screw
7W11708403 Whirlpool Door Stop
8WP8281196 Whirlpool Screw
967004838 Whirlpool Refrigerator Button Vent Plug
10MAY 67006786
10WP12722803B Whirlpool Door Guide
11MAY 12579702
12BUSHING, DOOR (BLK)
13WP67003405 Whirlpool Pivot Block
13SCREW
14WP67002721 Whirlpool Refrigerator Door Bushing
