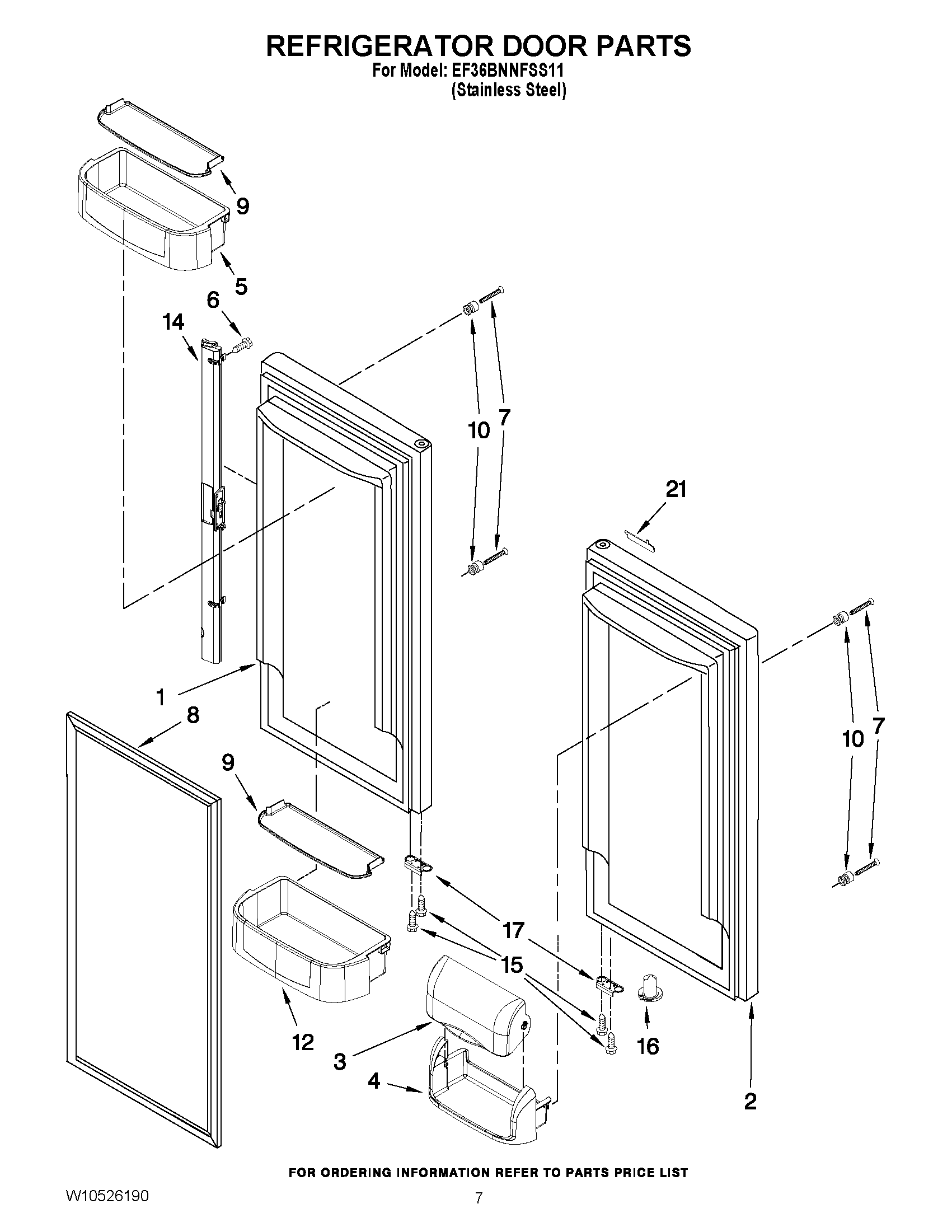

EF36BNNFSS11 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT
2	DOOR, RIGHT
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371193 Whirlpool Refrigerator Door Bin
6	W11311945 Whirlpool Refrigerator Screw
7	W10160454 Whirlpool Refrigerator Screw
8	GASKET-FIP
9	GRIPPER (MEDIUM BUCKET)
9	GRIPPER (GALLON BUCKET)
10	MOUNT, HANDLE
12	BIN, SHELF (GALLON)
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
15	WP98165 Whirlpool Screw
16	WP12028505AP Whirlpool Closing Cam
17	W11401472 Whirlpool Refrigerator Door Stop
21	NAMEPLATE
