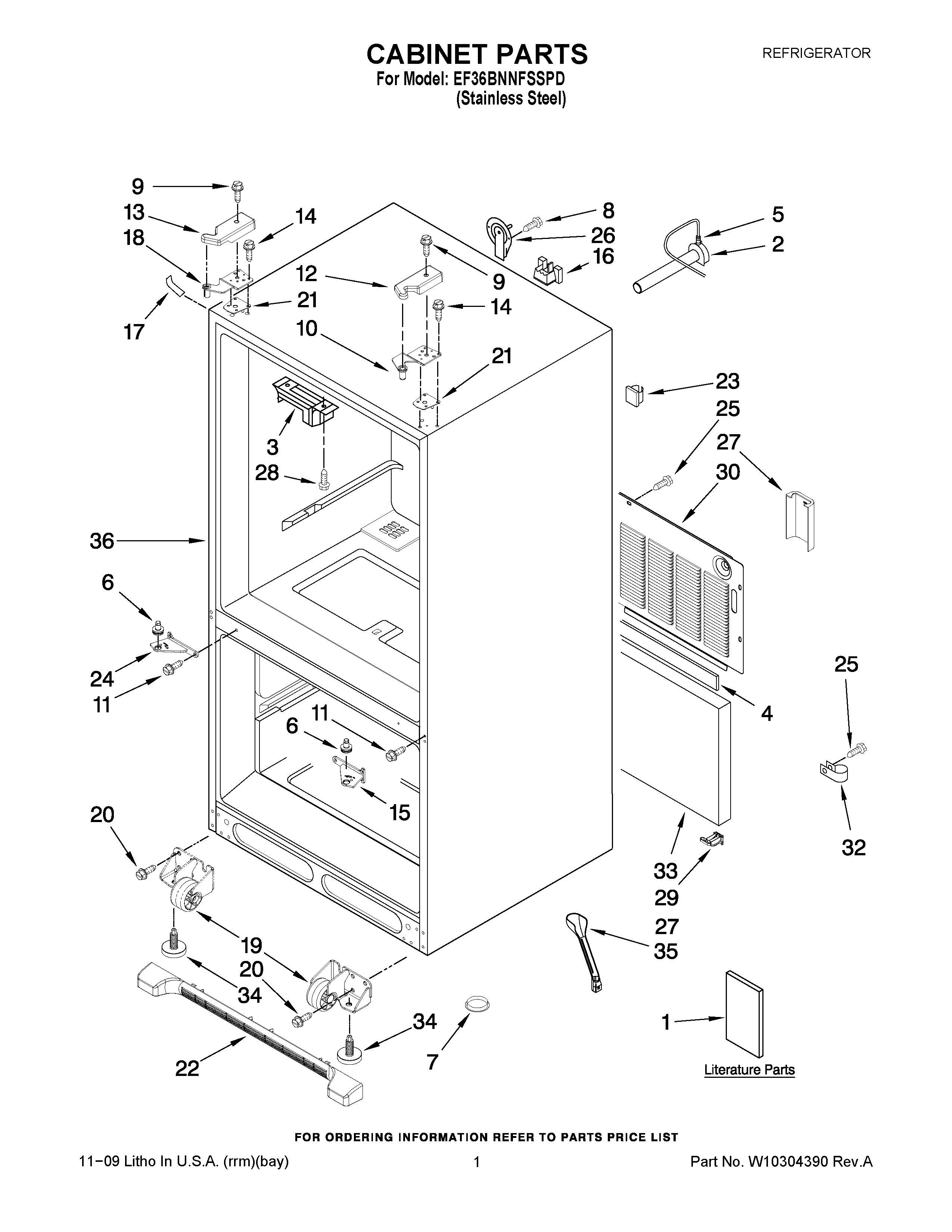

EF36BNNFSSPD 01 – CABINET PARTS

EF36BNNFSSPD 01 – CABINET PARTS

Written by

in

EF36BNNFSSPD 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPM0114003 Whirlpool Microwave Speed Clip Clamp
6WP67006642 Whirlpool Refrigerator Pin
7A3076901 Whirlpool Refrigerator Plug
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
1012626910ED Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
12COVER, RIGHT HINGE
13W10217487 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
16WP12777701 Whirlpool Refrigerator Filler Block
17WP12587703AP Whirlpool Refrigerator Filler
1812626911ED Whirlpool Refrigerator Door Hinge
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WPM0104106 Whirlpool Refrigerator Clip
2412655102AP Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28WP7101P126-60 Whirlpool Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
32W10833902 Whirlpool Refrigerator Clamp
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35W10619951 Whirlpool Drain Tube with Grommet
36CABINET (NOT A SERVICEABLE PART)
