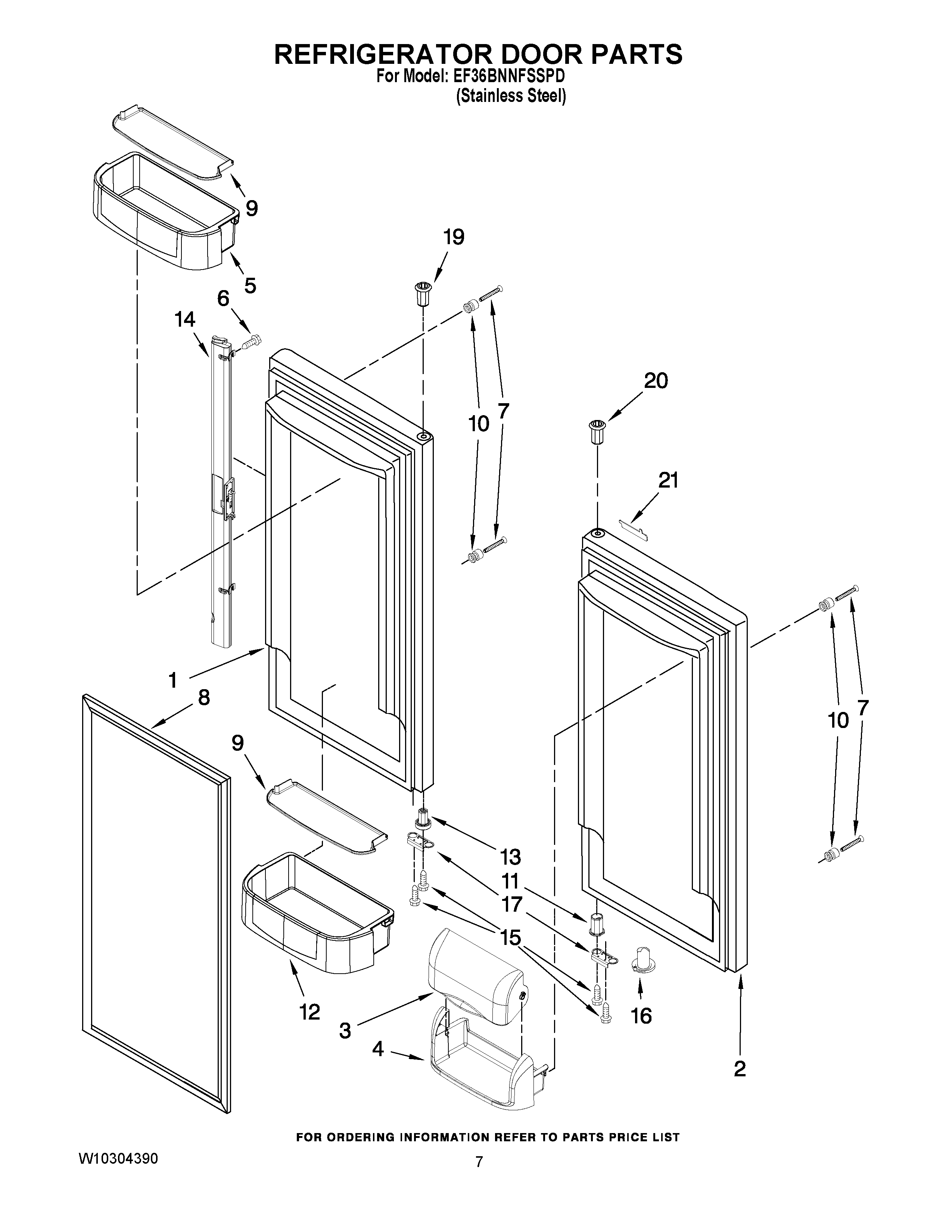

EF36BNNFSSPD 04 – REFRIGERATOR DOOR PARTS

EF36BNNFSSPD 04 – REFRIGERATOR DOOR PARTS

Written by

in

EF36BNNFSSPD 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371193 Whirlpool Refrigerator Door Bin
6W11311945 Whirlpool Refrigerator Screw
7WPW10133608 Whirlpool Refrigerator Screw
8GASKET-FIP
9GRIPPER (GALLON BUCKET)
9GRIPPER (MEDIUM BUCKET)
10MOUNT, HANDLE
11W10853652 Whirlpool Refrigerator Hinge Bushing
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13BUSHING, DOOR (BOTTOM LEFT)
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP98165 Whirlpool Screw
16WP12028505AP Whirlpool Closing Cam
17W11401472 Whirlpool Refrigerator Door Stop
19BUSHING, DOOR UPPER LEFT (APOLLO GREY)
2010961006AP Whirlpool Refrigerator Hinge Bushing
21NAMEPLATE
