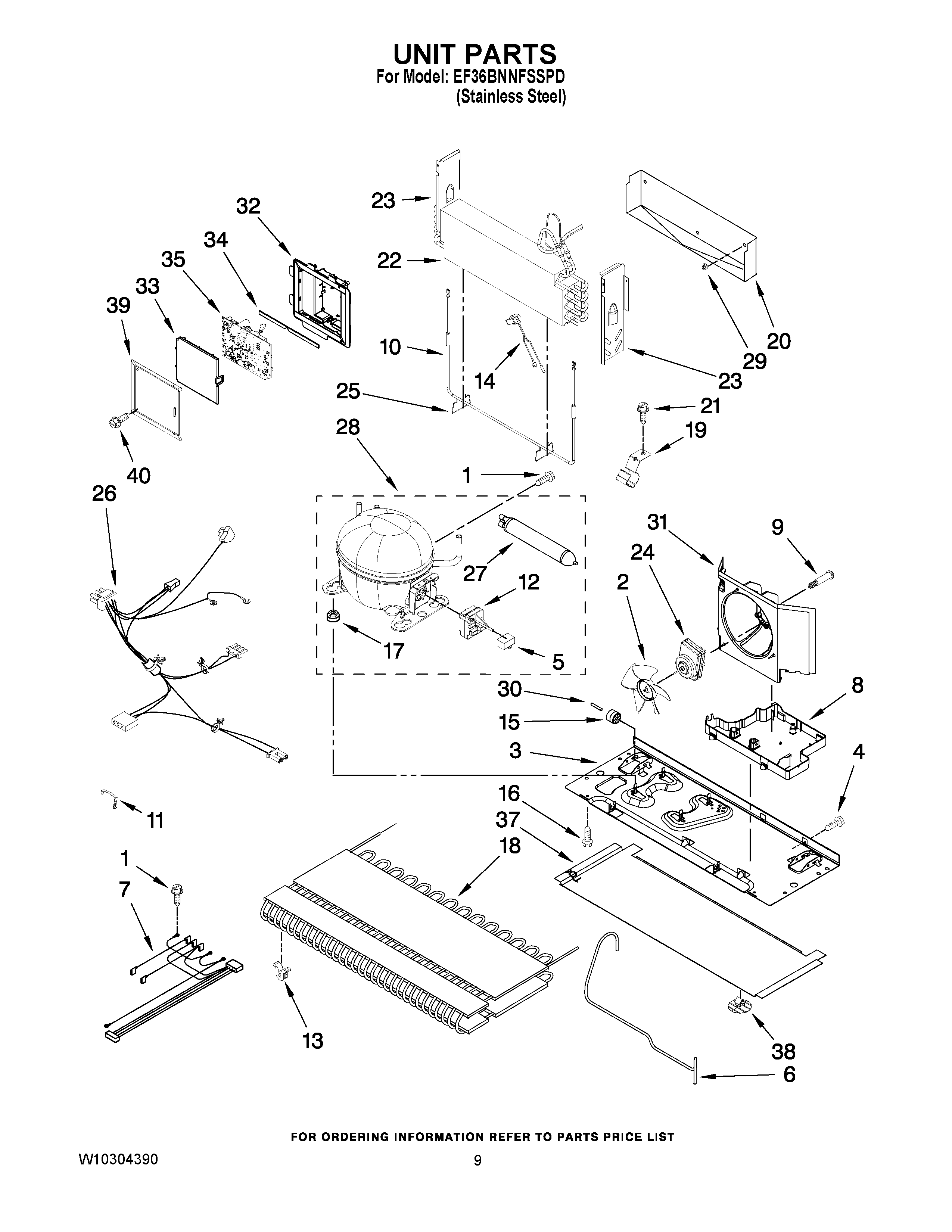

EF36BNNFSSPD 05 – UNIT PARTS

EF36BNNFSSPD 05 – UNIT PARTS

Written by

in

EF36BNNFSSPD 05 – UNIT PARTS

Products

PositionProduct
NIWP978025 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (5/8“)
NI876764 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978030 Whirlpool Refrigerator Valve
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
112992301 Whirlpool Refrigerator Screw
2WP12825803 Whirlpool Refrigerator Fan Blade
3W11727651 Whirlpool Plate Assembly
467006425 Whirlpool Refrigerator Screw
5WPW10662129 Whirlpool Refrigerator Run Capacitor
6WPW10217747 Whirlpool Refrigerator Tube
7W10911102 Whirlpool Refrigerator Wire Harness
8WPW10655368 Whirlpool Refrigerator Drip Pan
9W10829281 Whirlpool Refrigerator Screw
10W10825088 Whirlpool Refrigerator Defrost Heater W10836434
11W10204187 Whirlpool Refrigerator Retainer
12WPW10197428 Whirlpool Start Device
13WPW10137529 Whirlpool Refrigerator Grommet
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WP67005149 Whirlpool Roller
16Screw
17WPW10169124 Whirlpool Refrigerator Grommet
18WPW10346415 Whirlpool Refrigerator Condenser
1910547003 Whirlpool Refrigerator Dryer Clip
20W11547653 Whirlpool Refrigerator Drip Tray
21WP33001882 Whirlpool Screw
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24W11613295 Whirlpool Condenser Motor
25W11673433 Whirlpool Clip
26W11224411 Whirlpool Refrigerator Wire Harness
27WPW10143759 Whirlpool Dryer Filter
28W10160407 Whirlpool Refrigerator Compressor
29CLIP, EVAP (2)
3067006434 Whirlpool Axle Pin
31W11556315 Whirlpool Shroud
32BOX, HV CONTROL
33W10296541 Whirlpool Refrigerator Wire Cover
34GASKET, HV BOX
35WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
37EXTENSION-BASEPAN
38W10206339 Whirlpool Fastener
3912961602 Whirlpool Refrigerator Wire Cover
40W11686675 Whirlpool Screw
