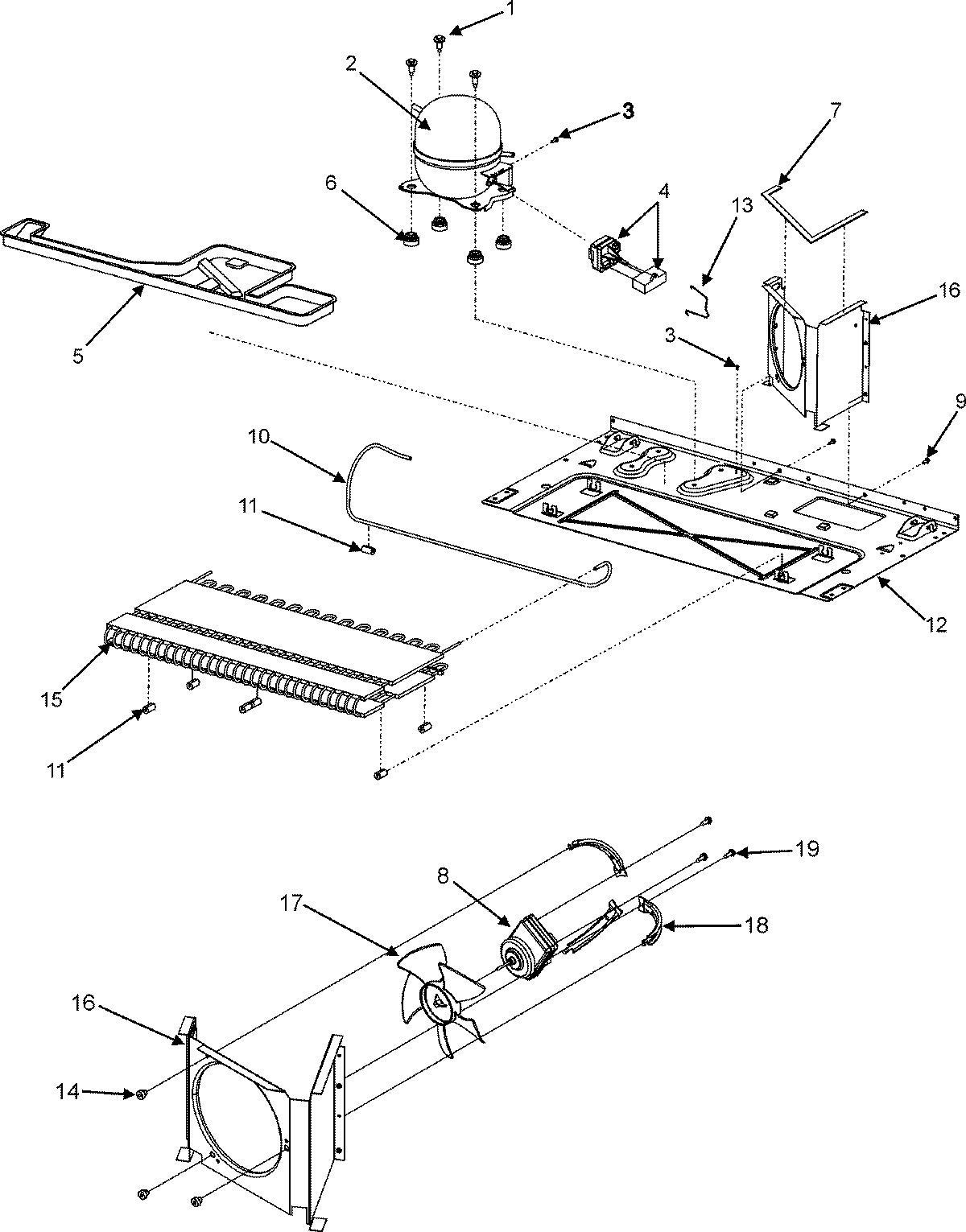

EF36LNDFSS 02 – COMPRESSOR & COND MOTOR

EF36LNDFSS 02 – COMPRESSOR & COND MOTOR

Written by

in

EF36LNDFSS 02 – COMPRESSOR & COND MOTOR

Products

PositionProduct
1MAY 67006432
2W10160407 Whirlpool Refrigerator Compressor
3MAY 67006433
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5WP12579803 Whirlpool Refrigerator Drain Pan
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8MAY 67004432
9Screw (10)
10MAY 67004700
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67005889
13MAY 12576801
14GROMMET, BRACKET
15WP67006131 Whirlpool Refrigerator Condenser
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18MAY 67004953
19WP67004954 Whirlpool Refrigerator Screw
20HARNESS, MC
