EF36LNDFSS 07 – ICE MAKER

EF36LNDFSS 07 – ICE MAKER

Written by

in

EF36LNDFSS 07 – ICE MAKER

Products

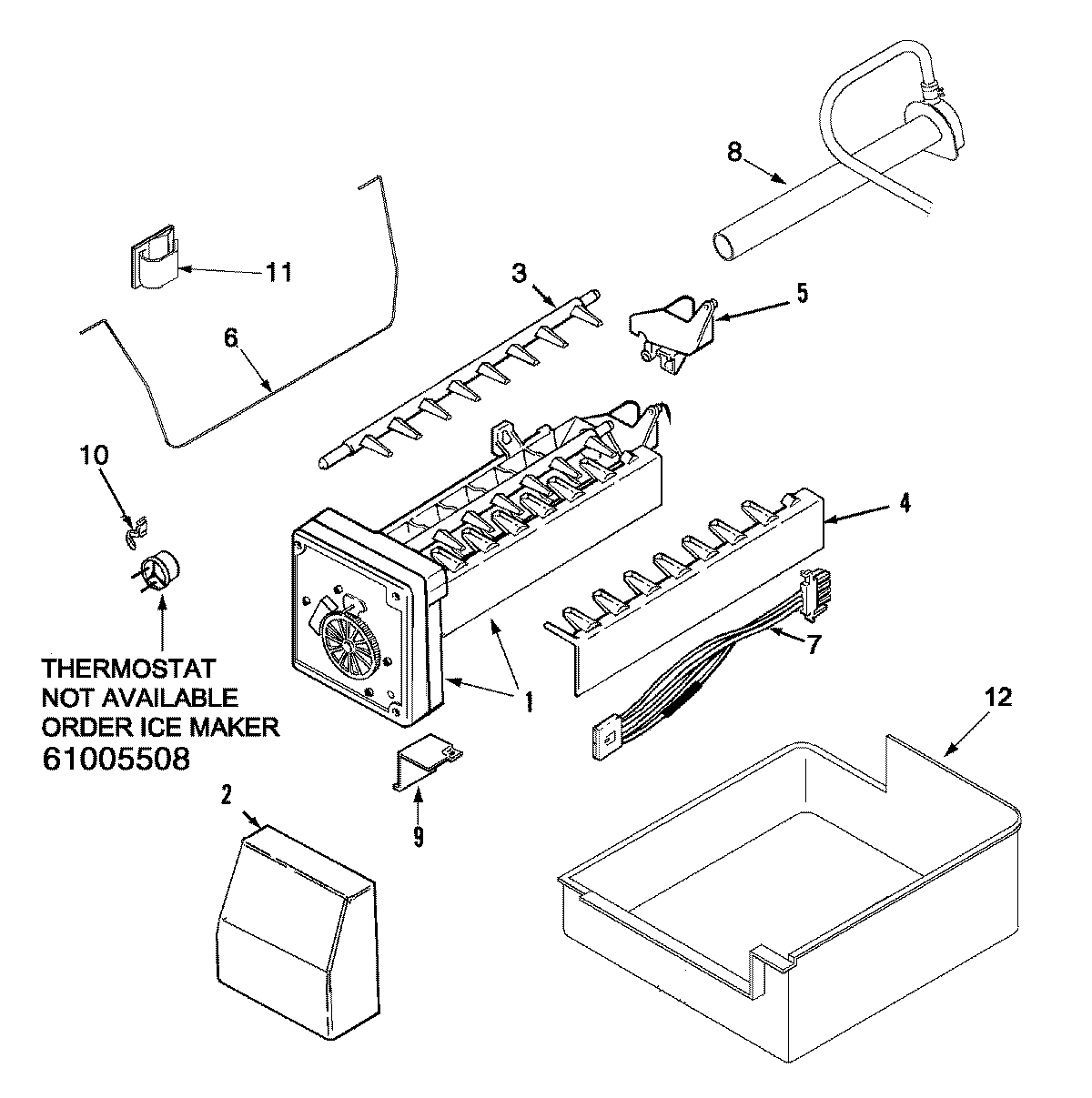

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP2256087 Whirlpool Refrigerator Bracket
1WP98165 Whirlpool Screw
2WPW10289690 Whirlpool Ice Maker Cover
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP628356 Whirlpool Refrigerator Fill Cup
6ARM-SHUT
7WPD7813010 Whirlpool Refrigerator Wire Harness
8ELBOW, FILL TUBE
9BRACKET, MODULE & HEATER
9MAY 95108-1
10WP2315522 Whirlpool Refrigerator Clip
11WPM0104106 Whirlpool Refrigerator Clip
12WP67001255 Whirlpool Ice Bucket
13W11033771 Whirlpool Refrigerator Coupling
148003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
