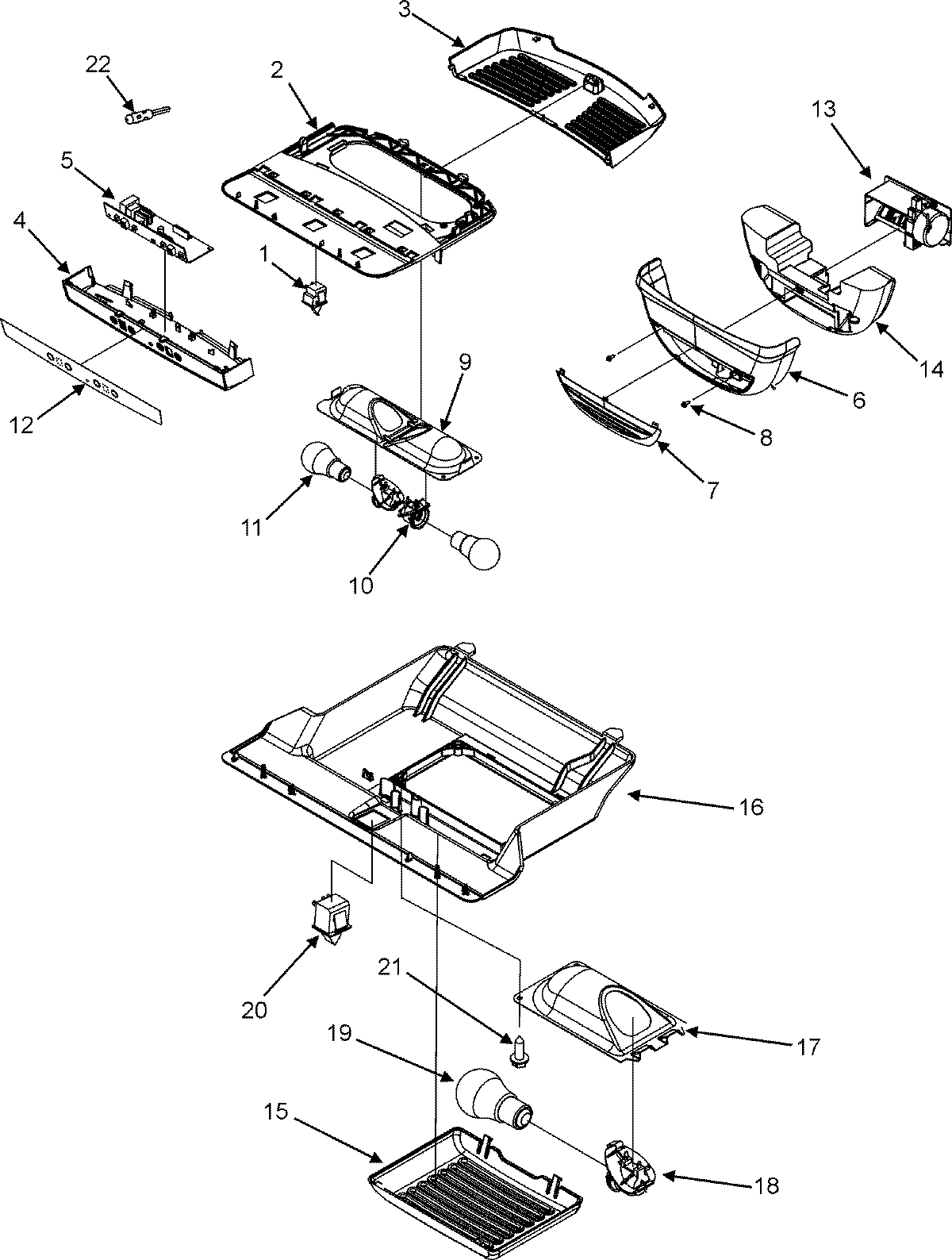

EF36RNDFSS 03 – CONTROLS

Products

Position	Product
1	Switch, Light (2)
2	MAY Y67003896
3	W11284721 Whirlpool Refrigerator Cover
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6	WP12806701 Whirlpool Refrigerator Box Cover
7	67003900 Whirlpool Refrigerator Insert Damper Cover
8	MAY 67006602
9	12806601 Whirlpool Refrigerator Light Housing
12	MAY 67006910
13	WPW10196393 Whirlpool Control Damper
14	MAY 67006604
15	MAY 67003905
16	67003906 Whirlpool Refrigerator Control Module
17	MAY 67001035
18	Socket, Light (2)
19	RANGE ONLY 40W 120V APPL BULB
20	MAY 67005653
21	MAY 67006530
22	12002355 Whirlpool Refrigerator Thermistor Kit
23	MAY 67006094
23	Harness, Controls (Refrigerator)
