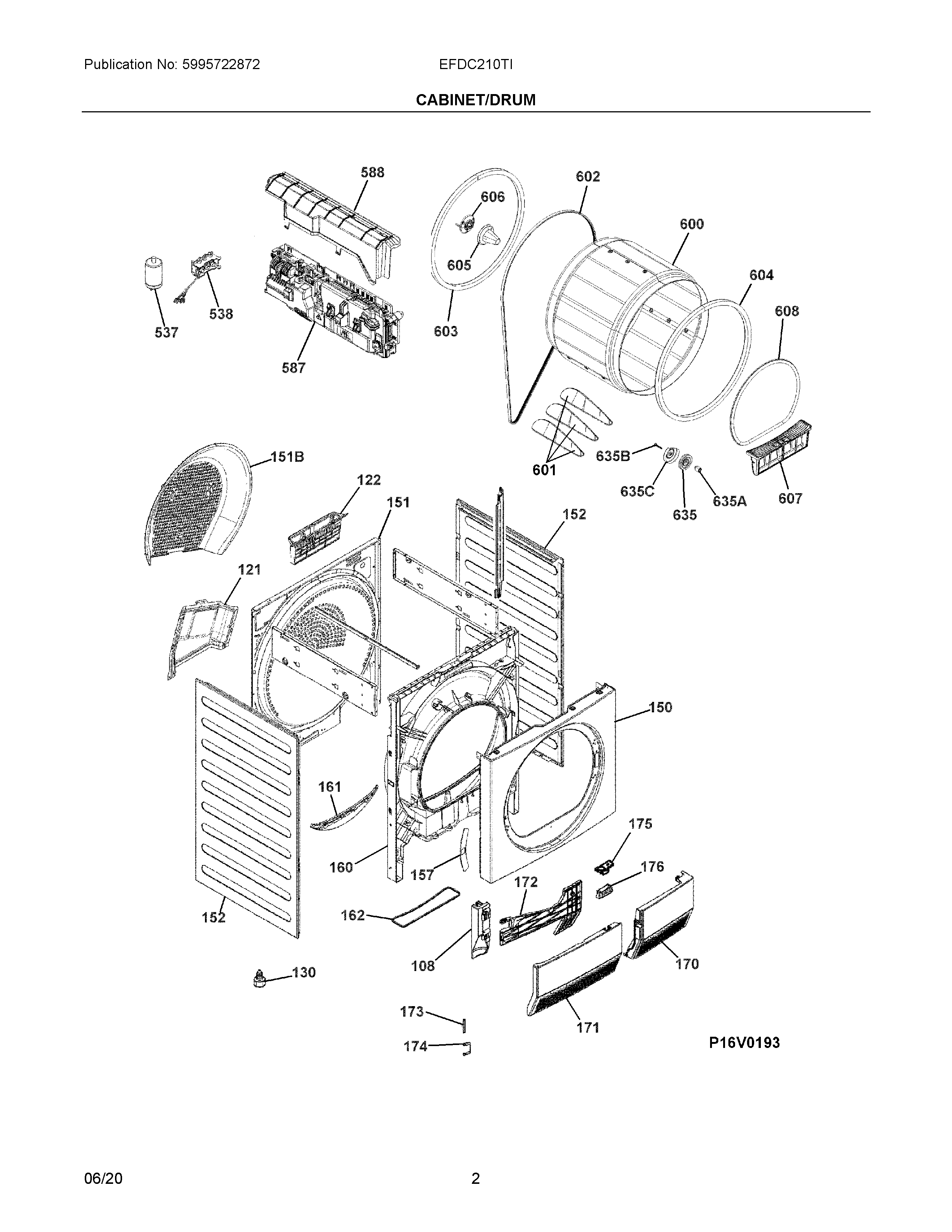

EFDC210TIW00 02 – CABINET/DRUM

EFDC210TIW00 02 – CABINET/DRUM

Written by

in

EFDC210TIW00 02 – CABINET/DRUM

Products

Position	Product
NI	5304505408 Frigidaire Cord
NI	136608610 Frigidaire Felt
108	136655202 Frigidaire Hinge
121	COVER, HEATING ELEMENT
122	136602703 Frigidaire Grating
130	899647060471 Frigidaire Leg
150	136436000 Frigidaire PANEL
151B	136604000 Frigidaire BULKHEAD
151	136600571 Frigidaire PANEL
152	5304526177 Frigidaire Side Panel
157	136608900 Frigidaire Cover Plate
160	DUCT, AIR, FRONT, LAMP
161	136605801 Frigidaire Support
162	136606100 Frigidaire Gasket
170	136655101 Frigidaire Cover
171	DOOR, OUTER, WHITE, PLINTH
172	136655501 Frigidaire Door
173	112331110 Frigidaire Hinge Pin
174	136608100 Frigidaire Spring
175	136602401 Frigidaire Button
176	SUPPORT, BUTTON, DOOR
537	808089303 Frigidaire Filter
538	A01517003 Frigidaire Terminal Block
587	BOARD
588	COVER, MAIN BOARD, WHITESHARK
600	136603050 Frigidaire Drum
601	VANE, DRUM, 298.3MM, GREY
602	809183801 Frigidaire Belt
603	136424300 Frigidaire Gasket
604	136808930 Frigidaire Gasket
605	136655401 Frigidaire Cone
606	136623702 Frigidaire Cone
607	136601901 Frigidaire Filter
608	GASKET,LG OPENING,FRONT
635C	809166602 Frigidaire Cover
635B	124022201 Frigidaire Bolt
635A	125425004 Frigidaire Bushing
635	807787702 Frigidaire Roller
