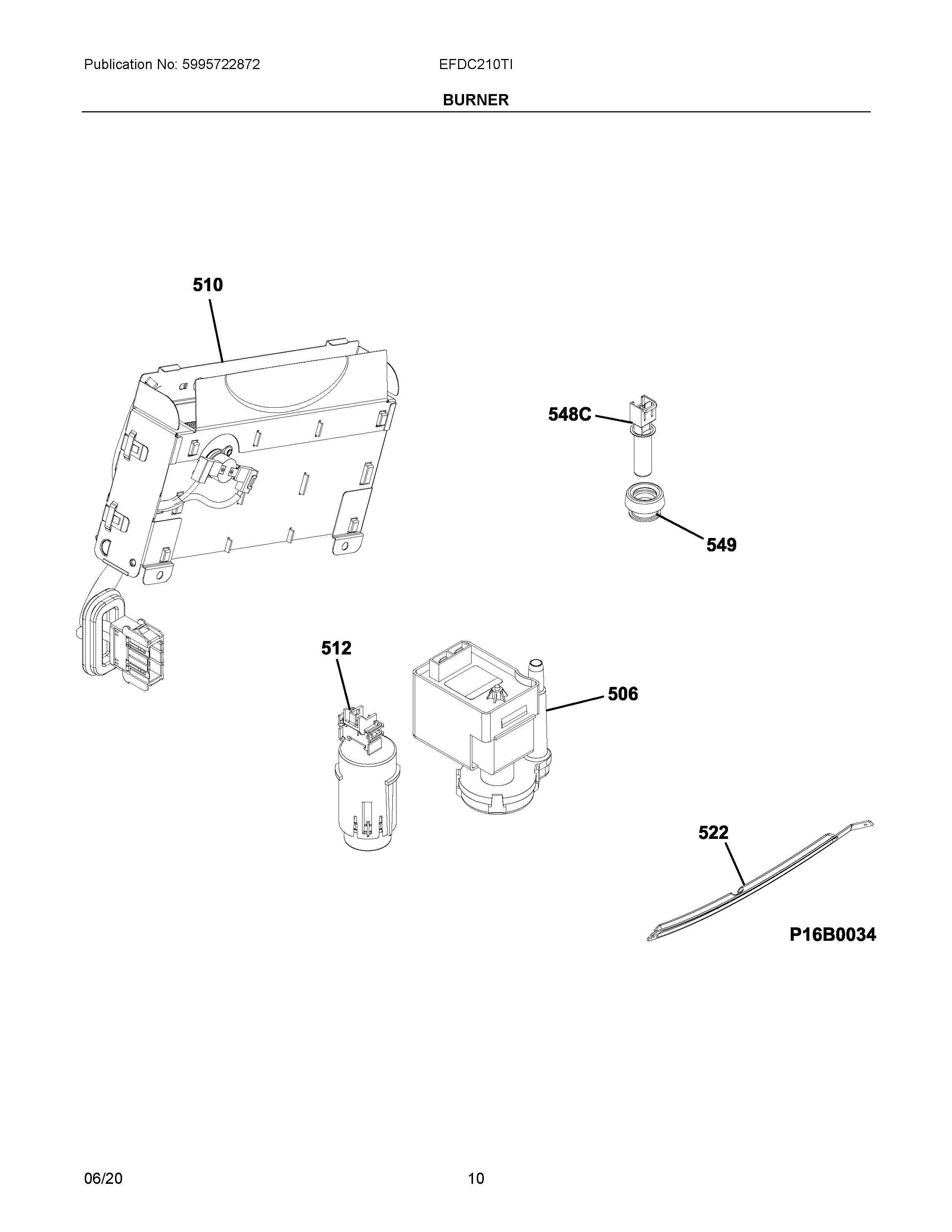

EFDC210TIW00 06 – BURNER
Products
| Position | Product |
|---|---|
| 506 | 136402403 Frigidaire Pump |
| 510 | 5304537407 Frigidaire Heater 240V 1900+700W |
| 512 | 136614001 Frigidaire Switch |
| 522 | 136602910 Frigidaire Sensor |
| 548C | PROBE |
| 549 | 124664400 Frigidaire Sealing Assembly |
EFDC210TIW00 06 – BURNER
| Position | Product |
|---|---|
| 506 | 136402403 Frigidaire Pump |
| 510 | 5304537407 Frigidaire Heater 240V 1900+700W |
| 512 | 136614001 Frigidaire Switch |
| 522 | 136602910 Frigidaire Sensor |
| 548C | PROBE |
| 549 | 124664400 Frigidaire Sealing Assembly |
