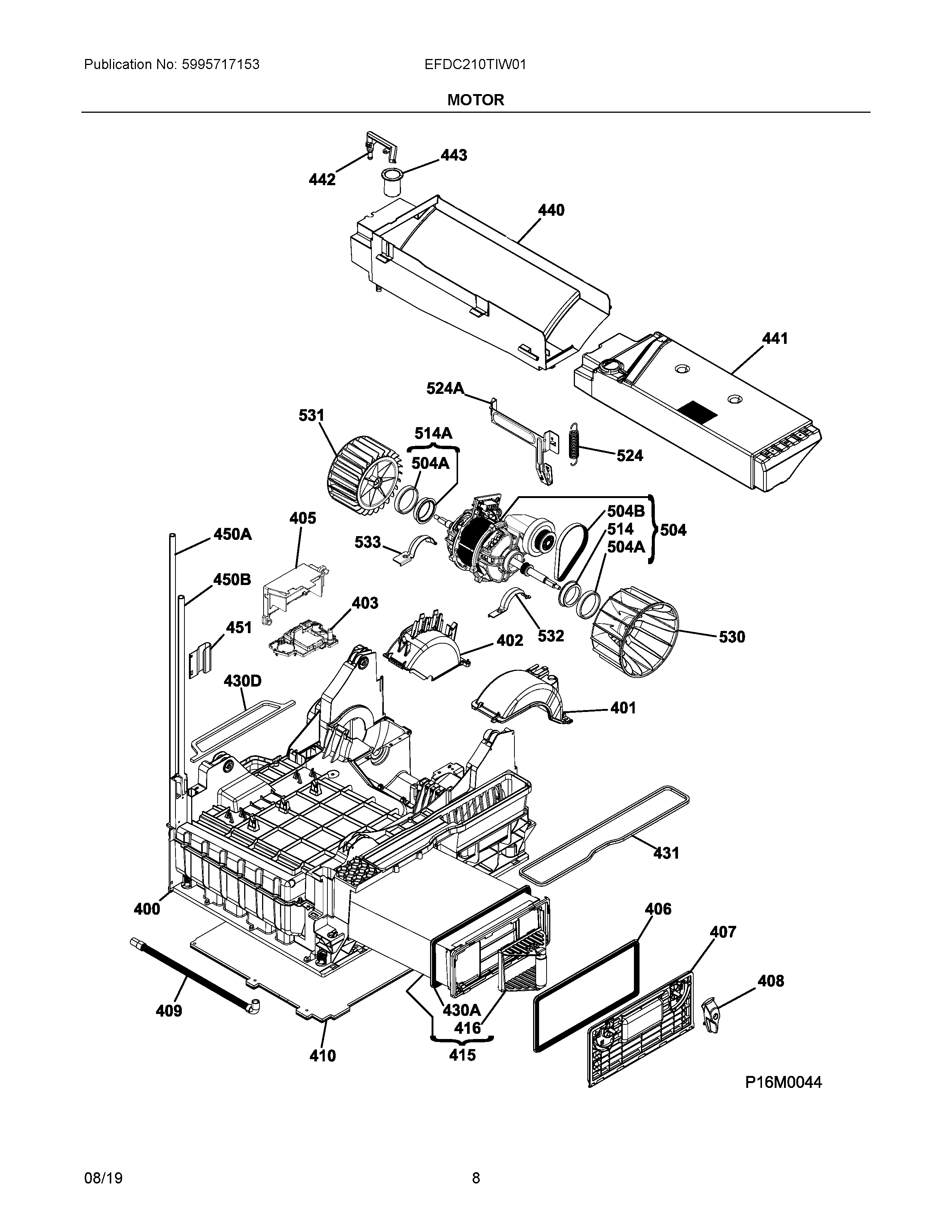

EFDC210TIW01 05 – MOTOR

Products

Position	Product
NI	A01523201 Frigidaire Harness
NI	A01523101 Frigidaire Harness
NI	A01522701 Frigidaire Harness Assembly
NI	A01523301 Frigidaire Harness
NI	A01523401 Frigidaire Harness
NI	A01523001 Frigidaire Harness
NI	A01522601 Frigidaire Harness Assembly
NI	125122513 Frigidaire Fittings
NI	A01523501 Frigidaire Harness
NI	A16314102 Frigidaire Harness
NI	A01522901 Frigidaire Harness
400	136600042 Frigidaire Basement
401	136604102 Frigidaire Cover
402	136604205 Frigidaire COVER
403	SUPPORT, PUMP
405	136606504 Frigidaire Cover Assembly
406	136607300 Frigidaire Gasket
407	136609110 Frigidaire Dryer Door Assembly
408	136609214 Frigidaire Knob
409	136605700 Frigidaire Pipe
410	COVER, BASEMENT
415	136701301 Frigidaire Condenser
416	136607400 Frigidaire Handle
430A	125106700 Frigidaire Gasket
430D	136606800 Frigidaire Gasket
431	136605600 Frigidaire SEALING
440	136601700 Frigidaire SUPPORT
441	136601802 Frigidaire Tank
442	136602804 Frigidaire Connector
443	136606900 Frigidaire Bushing
450A	136605411 Frigidaire Hose
450B	136605511 Frigidaire Hose
451	136603500 Frigidaire Tube
504	A13608402 Frigidaire Motor
504B	808699801 Frigidaire Belt
504A	405549614 Frigidaire Kit Bushing
524A	A00299401 Frigidaire Support
524	125694900 Frigidaire Tension Spring
530	136609300 Frigidaire Wheel Blower
531	136604401 Frigidaire Fan
532	A00551101 Frigidaire Bracket Fixing
533	A00551201 Frigidaire Fixing Bracket
