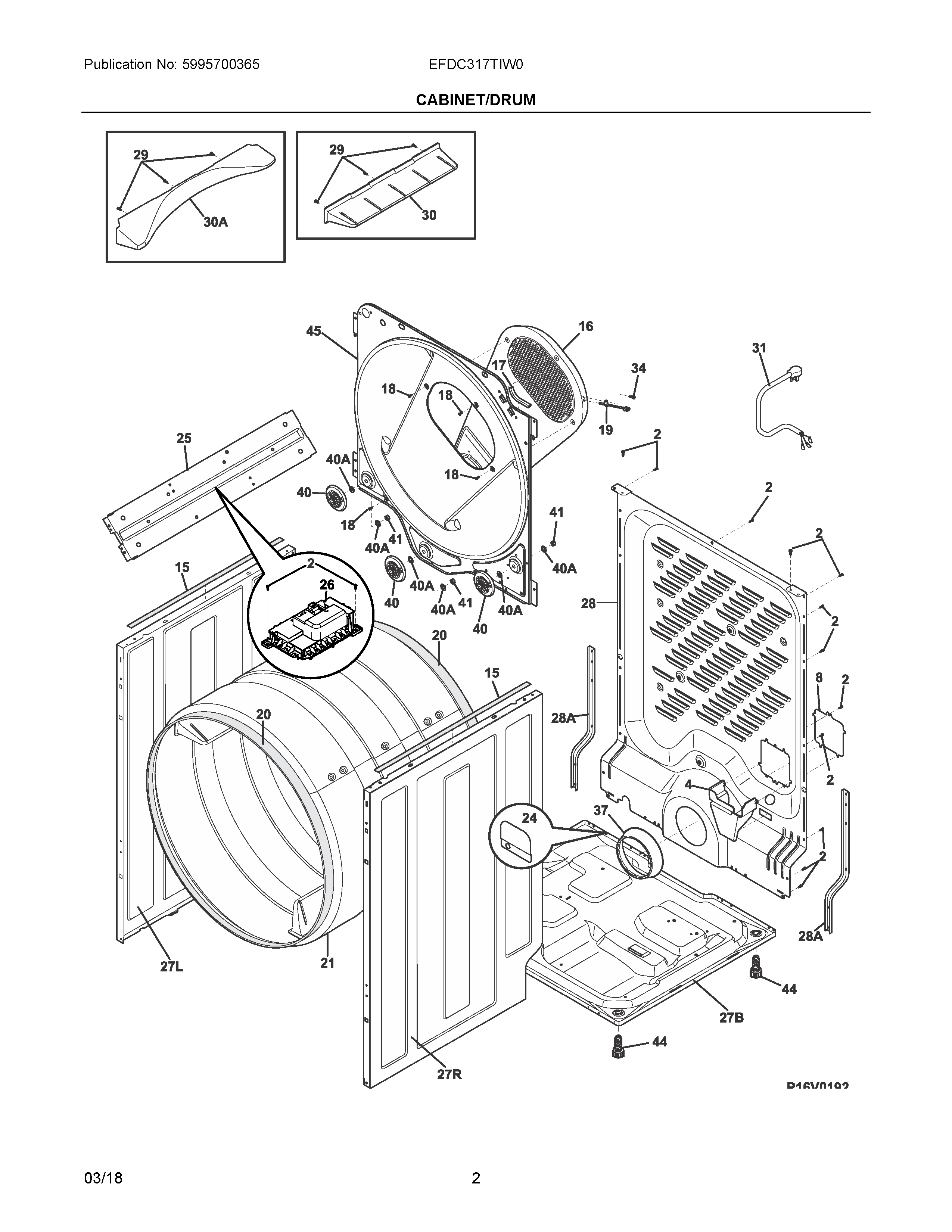

EFDC317TIW0 02 – CABINET/DRUM

Products

Position	Product
NIB	5308027429 Frigidaire Dryer High Temperature Adhesive
NIB	5304510128 Frigidaire Harness
NIA	5304500486 Frigidaire Seal
NIA	BRACE, SIDE PANEL
NIB	WCI 137360810
NIA	131205500 Frigidaire Screw
NIA	134716200 Frigidaire Retainer
NIB	134154100 Frigidaire Screw 10-32 x 0.375 Co
NIA	131302800 Frigidaire Drum Vane Screw
NI	134926600 Frigidaire Damper
NIA	131202300 Frigidaire Screw
4	134792100 Frigidaire Bracket
8	137578600 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	134711200 Frigidaire Washer Thermistor
20	5304499489 Frigidaire Washer Felt Seal
21	137610700 Frigidaire Drum
24	137537100 Frigidaire Cover
25	137567001 Frigidaire Bracket Assembly
26	5304510360 Frigidaire Board Assembly
27R	134712796 Frigidaire Panel
27L	134712696 Frigidaire Panel
27B	134690203 Frigidaire Base
28	PANEL, BACKSHEET, REAR VENTED
28A	137029801 Frigidaire Bracket Assembly
29	131205100 Frigidaire Screw
30	137610610 Frigidaire Vane
30A	VANE, MIXING, SMOOTH
31	5304505408 Frigidaire Cord
34	131243700 Frigidaire Screw
37	137553500 Frigidaire COVER
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
44	134158001 Frigidaire Washer Leveling Leg
45	BULKHEAD, PANEL, REAR
