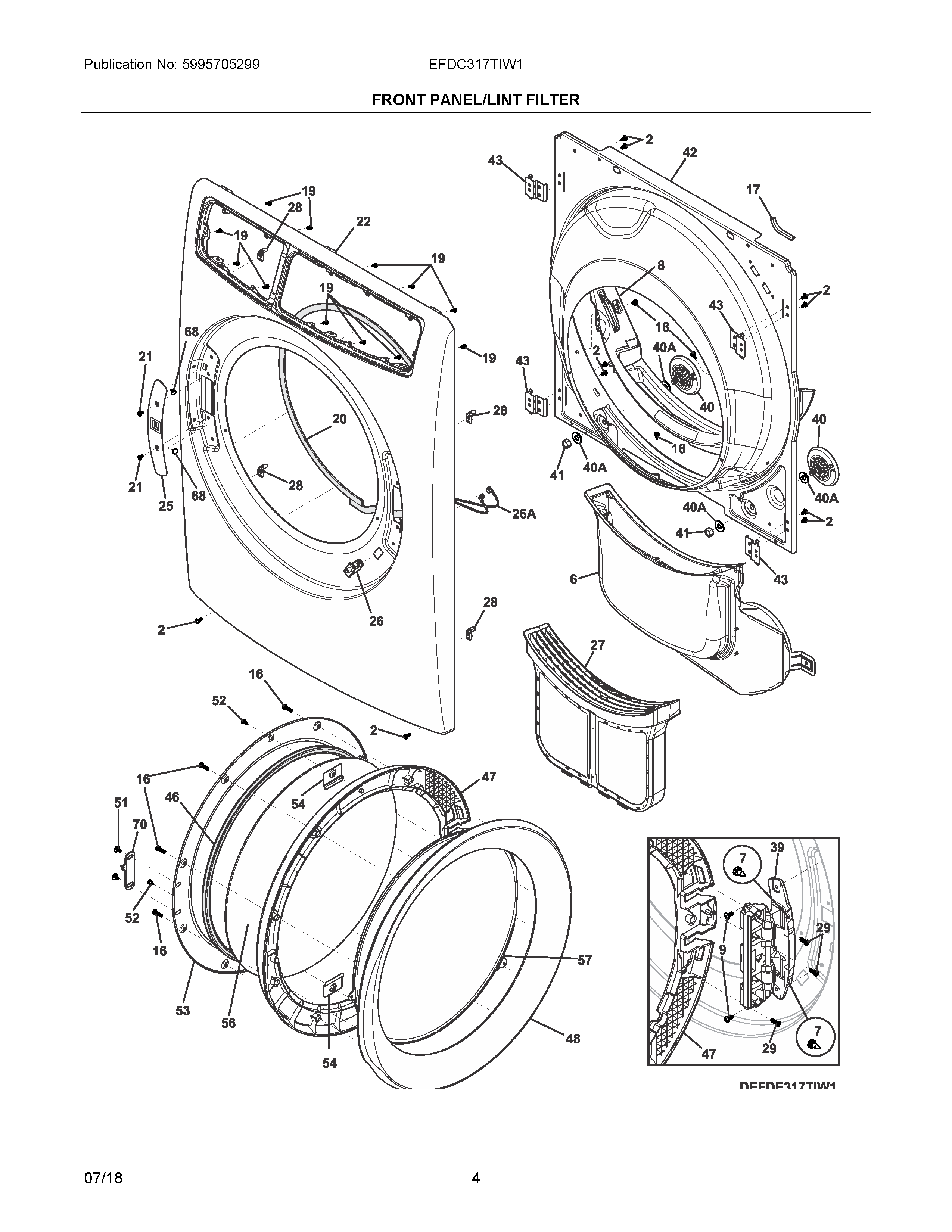

EFDC317TIW1 03 – FRONT PANEL/LINT FILTER

EFDC317TIW1 03 – FRONT PANEL/LINT FILTER

Written by

in

EFDC317TIW1 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIA5304515364 Frigidaire Harness
NIB5304513601 Frigidaire Screw
NIA134716200 Frigidaire Retainer
65304505353 Frigidaire Duct Assembly
7137285100 Frigidaire Screw
85304534451 Frigidaire Lint Filter Kit
95304505259 Frigidaire Screw
16137087000 Frigidaire Screw
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
195304505441 Frigidaire Screw
205304505111 Frigidaire Gasket
21131302800 Frigidaire Drum Vane Screw
225304513563 Frigidaire Panel
255304513568 Frigidaire Latch Assembly
26A5304505258 Frigidaire Harness
26134813600 Frigidaire Dryer Door Switch
27FILTER ASSEMBLY, LINT, CLAMSHELL
28137034500 Frigidaire Clip
29131205100 Frigidaire Screw
395304505133 Frigidaire Assembly Hinge
405304523155 Frigidaire Washer Kit
40A134716700 Frigidaire Washer
41134716800 Frigidaire Nut
42BULKHEAD, FRONT, WHITE
435304505118 Frigidaire Bracket
465304505010 Frigidaire Gasket
47FRAME, INNER DOOR
485304504997 Frigidaire Frame Assembly
51137241000 Frigidaire Screw
52131243700 Frigidaire Screw
535304504994 Frigidaire Dryer Inner Door
545304505012 Frigidaire Clamp
565304505000 Frigidaire Glass
575304505119 Frigidaire Shield Assembly
68134742000 Frigidaire Plug
705304532444 Frigidaire Striker
