EFDC317TIW2 04 – CONTROLS/TOP PANEL – Aparts

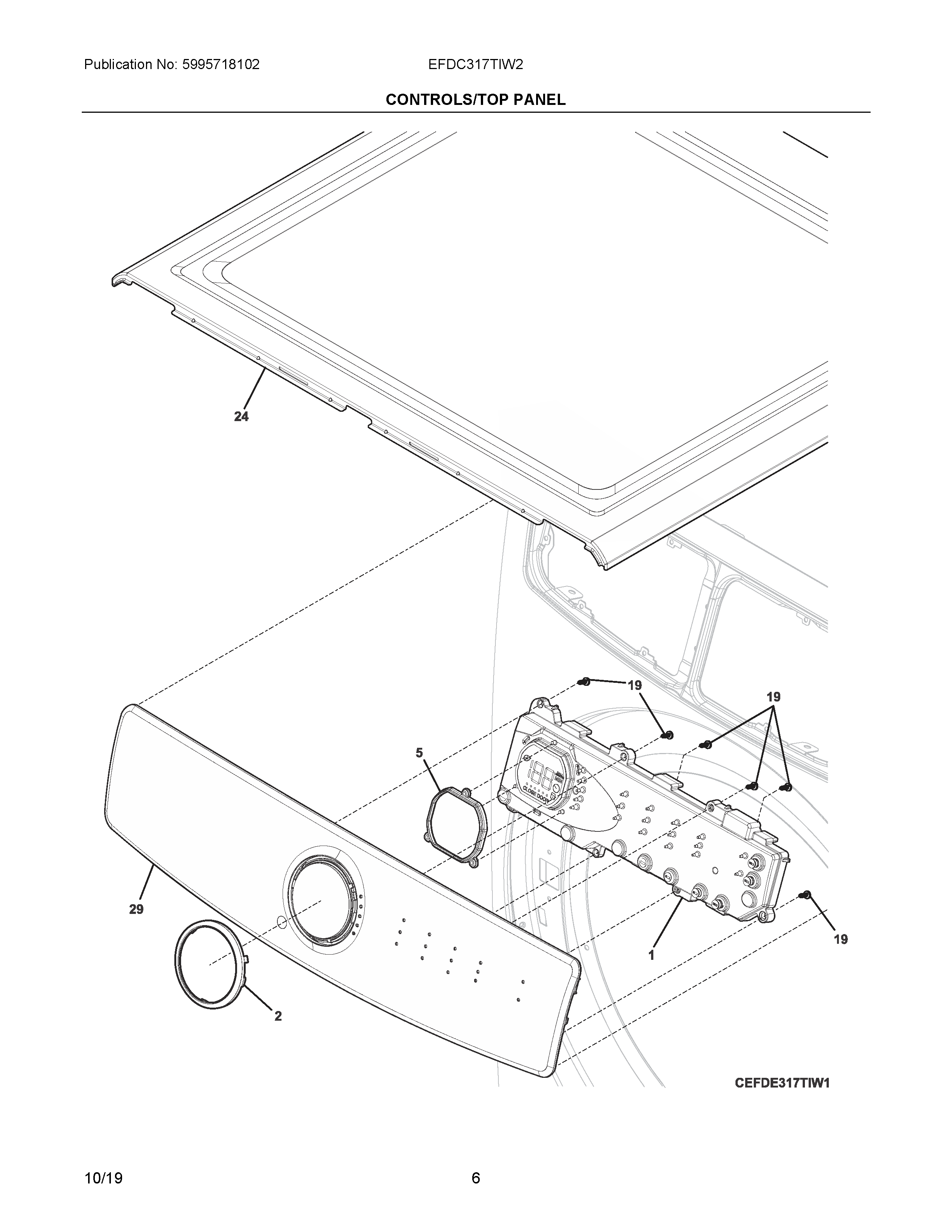

EFDC317TIW2 04 – CONTROLS/TOP PANEL

Products

Position	Product
NI	131168200 Frigidaire Dryer Screw
NI	137150200 Frigidaire Terminal
NI	5304510128 Frigidaire Harness
1	5304521515 Frigidaire Board Assembly
2	5304505044 Frigidaire Trim Assembly
5	5304505045 Frigidaire Seal
19	5304505441 Frigidaire Screw
24	5304505081 Frigidaire Top Panel
29	CONSOLE ASSEMBLY, W/OVERLAY
