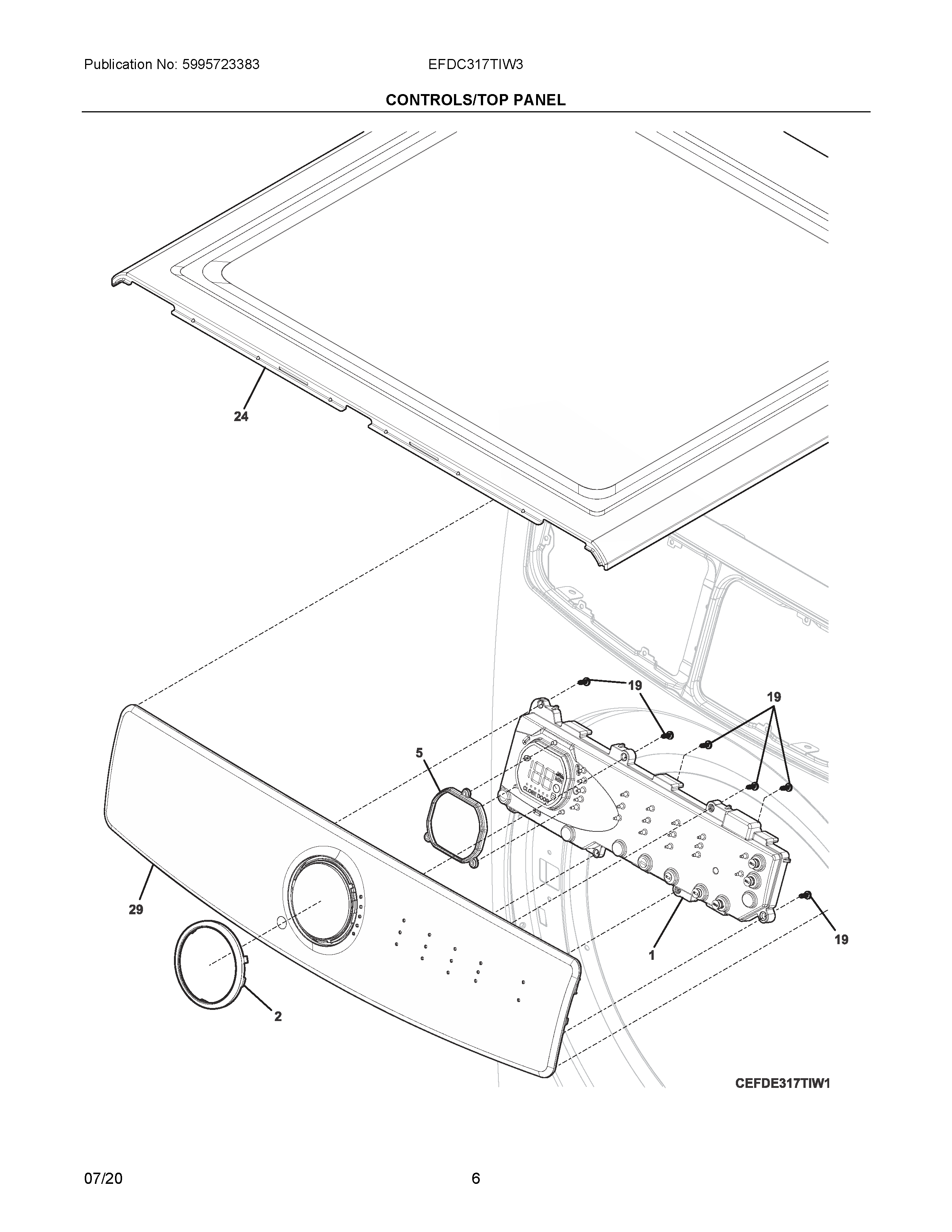

EFDC317TIW3 04 – CONTROLS/TOP PANEL

EFDC317TIW3 04 – CONTROLS/TOP PANEL

Written by

in

EFDC317TIW3 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NI131168200 Frigidaire Dryer Screw
NI137150200 Frigidaire Terminal
NI5304510128 Frigidaire Harness
15304521515 Frigidaire Board Assembly
25304505044 Frigidaire Trim Assembly
55304505045 Frigidaire Seal
195304505441 Frigidaire Screw
245304505081 Frigidaire Top Panel
29CONSOLE ASSEMBLY, W/OVERLAY
