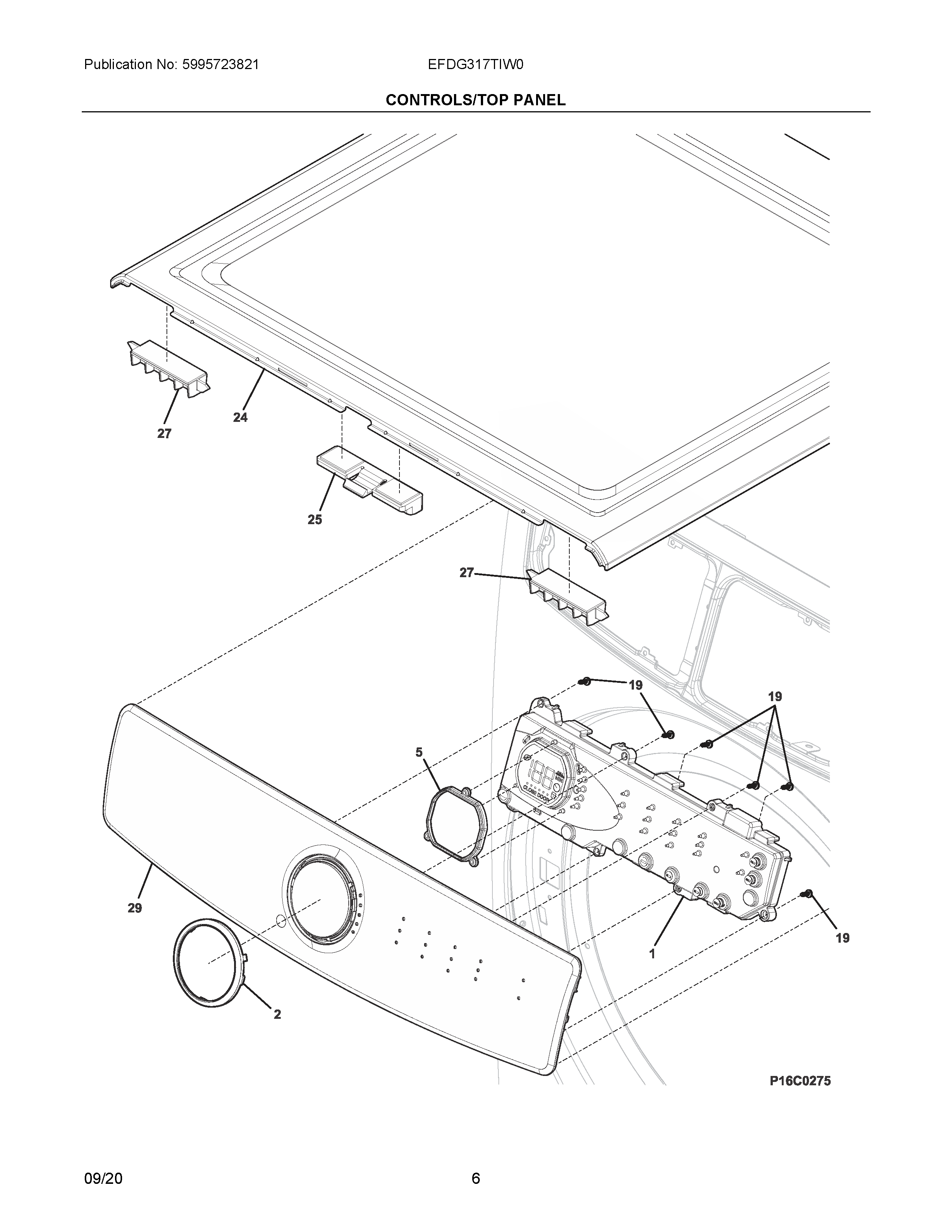

EFDG317TIW0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA134926600 Frigidaire Damper
NI131168200 Frigidaire Dryer Screw
NI5304510133 Frigidaire Harness
15304510359 Frigidaire Board Assembly
25304505044 Frigidaire Trim Assembly
55304505045 Frigidaire Seal
195304505441 Frigidaire Screw
245304505081 Frigidaire Top Panel
255304505357 Frigidaire Clip
27BLOCK, TOP, (2), W/TAPE
29CONSOLE ASSEMBLY, W/OVERLAY
