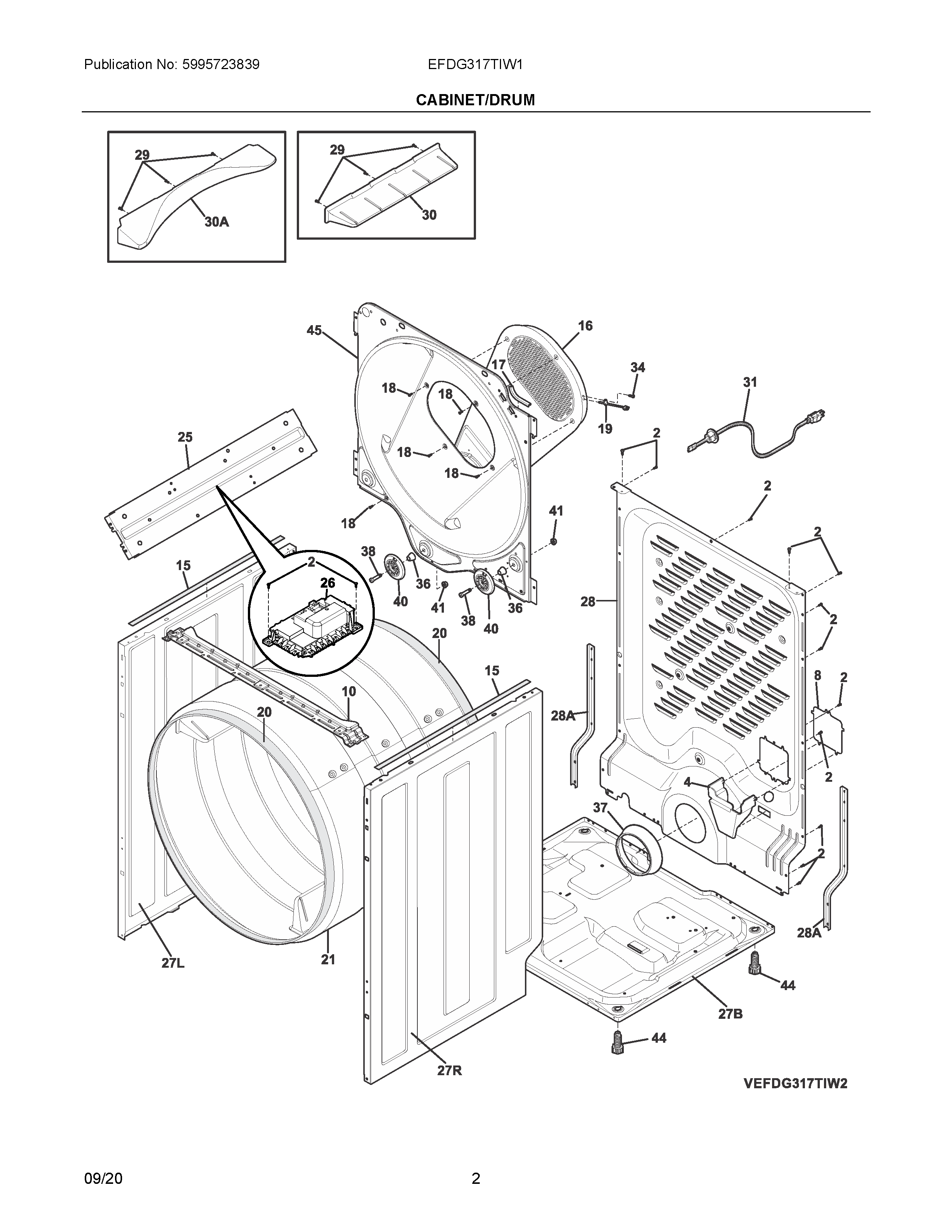

EFDG317TIW1 02 – CABINET/DRUM

Products

Position	Product
NIB	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	5304500486 Frigidaire Seal
NIA	BRACE, SIDE PANEL
NIA	5304510133 Frigidaire Harness
NIB	WCI 137360810
NIB	131302800 Frigidaire Drum Vane Screw
NIA	131202300 Frigidaire Screw
NI	134926600 Frigidaire Damper
NIB	134154100 Frigidaire Screw 10-32 x 0.375 Co
4	134792100 Frigidaire Bracket
8	134694400 Frigidaire Cover
10	5304513567 Frigidaire Bracket
15	137031800 Frigidaire Cushion
16	5304517944 Frigidaire Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	134711200 Frigidaire Washer Thermistor
20	5304499489 Frigidaire Washer Felt Seal
21	137610700 Frigidaire Drum
25	137567001 Frigidaire Bracket Assembly
26	5304510361 Frigidaire Board Assembly
27B	134690203 Frigidaire Base
27L	134712696 Frigidaire Panel
27R	134712796 Frigidaire Panel
28	PANEL, BACKSHEET, REAR VENTED
28A	137029801 Frigidaire Bracket Assembly
29	131205100 Frigidaire Screw
30	137610610 Frigidaire Vane
30A	VANE, MIXING, SMOOTH
31	5304505407 Frigidaire Cord
34	131243700 Frigidaire Screw
35	5304523155 Frigidaire Washer Kit
36	5304523154 Frigidaire Spacer
37	137553500 Frigidaire COVER
38	5304523151 Frigidaire Shaft
40	5304523152 Frigidaire Washer Wheel Roller
41	5304523153 Frigidaire Nut
44	134158001 Frigidaire Washer Leveling Leg
45	BULKHEAD, PANEL, REAR
