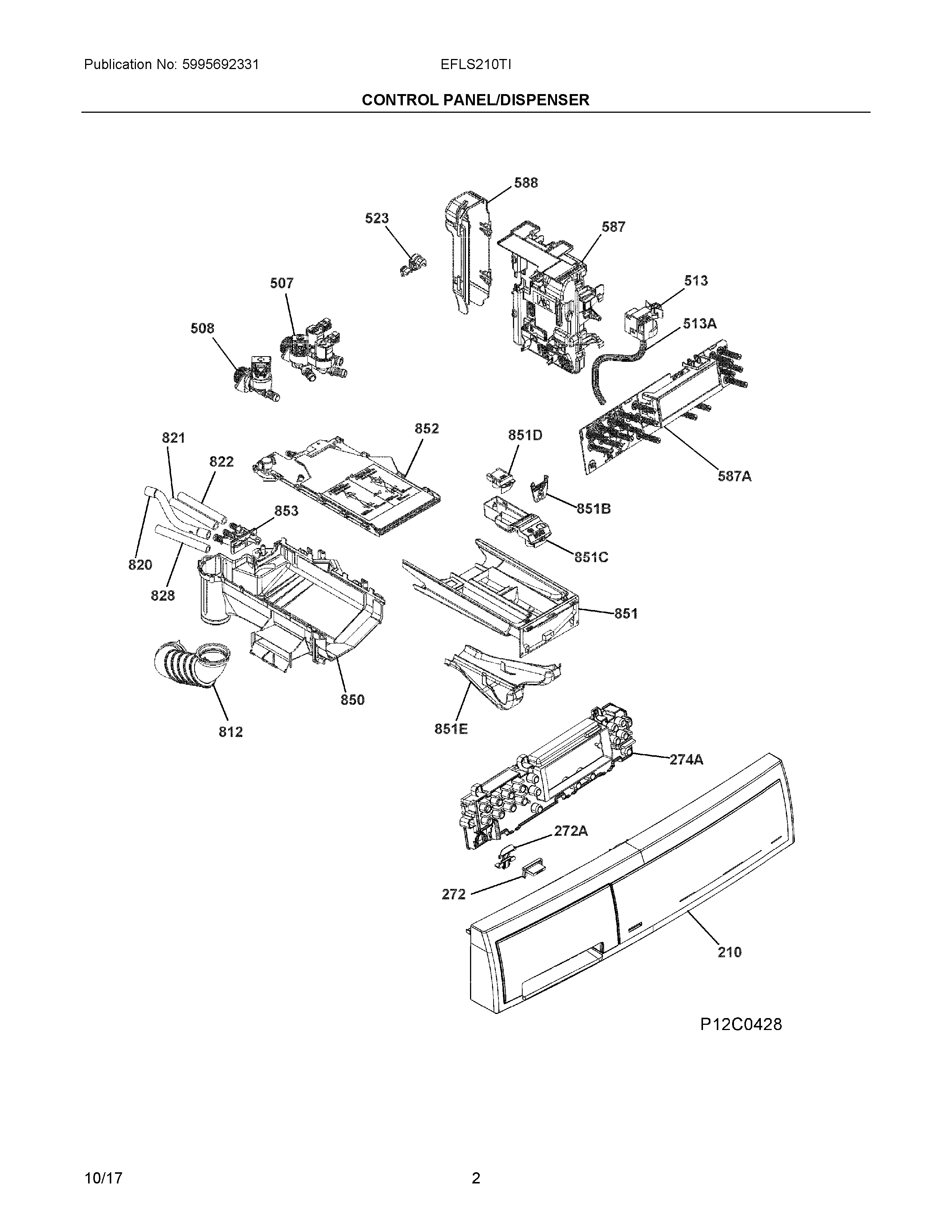

EFLS210TIS00 02 – CONTROL PANEL/DISPENSER

EFLS210TIS00 02 – CONTROL PANEL/DISPENSER

Written by

in

EFLS210TIS00 02 – CONTROL PANEL/DISPENSER

Products

PositionProduct
NIA01245801 Frigidaire Harness
NI132315920 Frigidaire Clamp
NIA01208401 Frigidaire Cable
NIA01245501 Frigidaire Wiring Harness
NIA01245601 Frigidaire Harness
NIA01245701 Frigidaire Harness
NI132315970 Frigidaire Clamp
NICLAMP, HOSE, 21.5-22.6MM
NICLAMP, HOSE, D40
NICLAMP, HOSE, D 20, 5
NIA01245901 Frigidaire Harness
NIA01246601 Frigidaire Washer Wiring Harness
NIA01246101 Frigidaire Harness
NIA01246201 Frigidaire Harness
NIA01246301 Frigidaire Harness
NIA01246501 Frigidaire Harness
210PANEL, CONTROL CONSOLE, SILVER, W/DRW HANDLE
272A136658601 Frigidaire Spring
272136658512 Frigidaire Button
274A136659600 Frigidaire Diffuser
507132518842 Frigidaire Washer Valve
508132744701 Frigidaire Valve
513379221604 Frigidaire Pressure Switch
513A132642371 Frigidaire Tube
523DUCT, POWER CABLE, UL
587AA10066602 Frigidaire PC Board Assembly
58797391453500200 Frigidaire Control
588807021101 Frigidaire Protection
812HOSE KIT, DETERGENT FILL, W/CLAMPS
820405536798 Frigidaire Kit Tube
821405536797 Frigidaire Tube Kit
822TUBE KIT, ELECTRIC VALVE, D=10MM/L=125MM
828132502480 Frigidaire Tube
850132640843 Frigidaire Dispenser
851D809169801 Frigidaire SYPHON
851E132507601 Frigidaire Conveyor
851C809169901 Frigidaire Syphon
851B132767801 Frigidaire Flap
851132507511 Frigidaire Drawer
852132507112 Frigidaire Distributor
853DISTRIBUTOR, WATER, BACK, PIPE UNION
