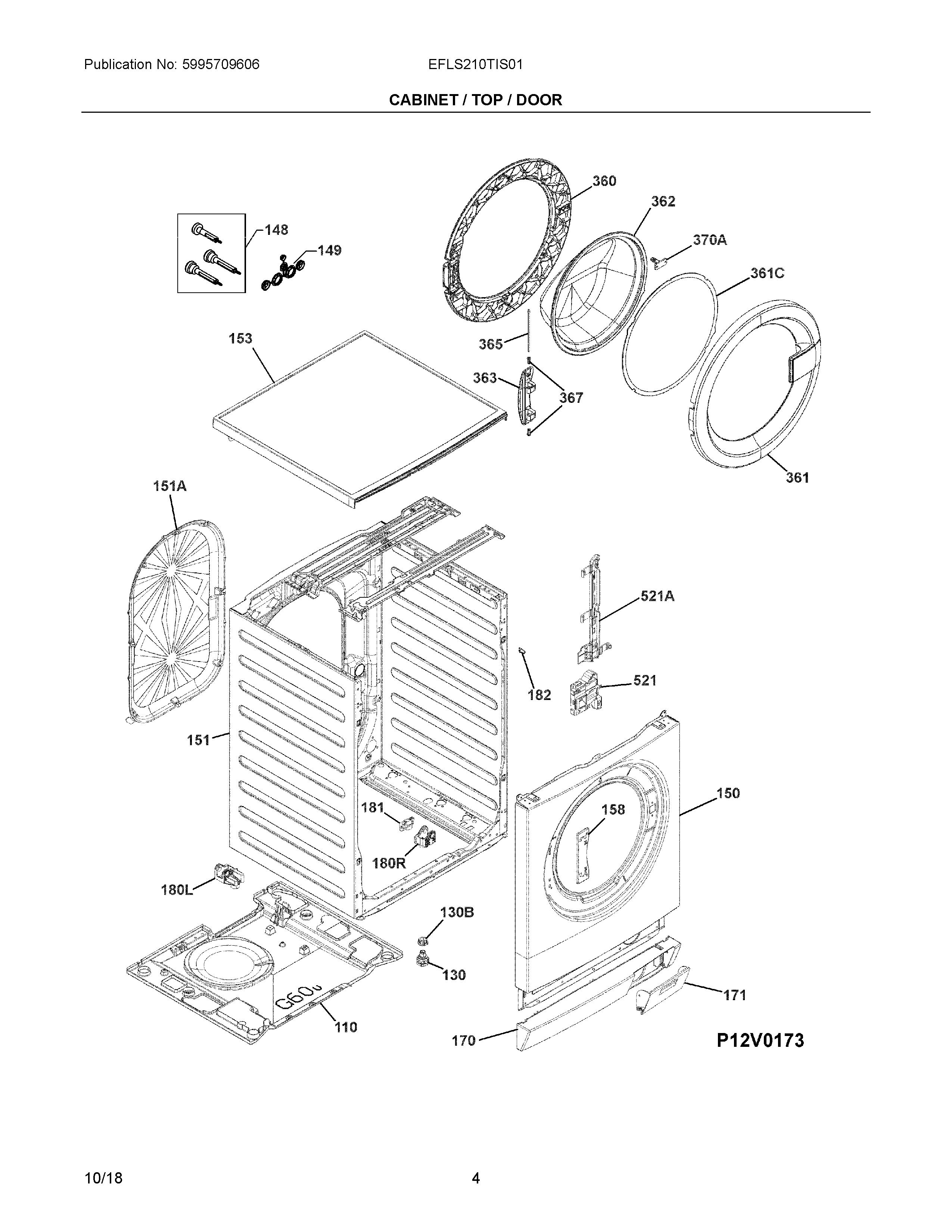

EFLS210TIS01 03 – CABINET / TOP / DOOR

EFLS210TIS01 03 – CABINET / TOP / DOOR

Written by

in

EFLS210TIS01 03 – CABINET / TOP / DOOR

Products

PositionProduct
NICLAMP, ELEC VALVE, HOSE
NI533118220 Frigidaire Clamp
110A00889001 Frigidaire Base
130LEG
130B110877100 Frigidaire BUSHING
148405543872 Frigidaire Shipping Kit
149132503902 Frigidaire Cap
150132763242 Frigidaire Panel
151PANEL, BACK, SILVER
151A132504042 Frigidaire Panel
153132760454 Frigidaire Panel
158132502201 Frigidaire Bracket
170PANEL, BOTTOM FRONT, SILVER
171DOOR, DRAIN ACCESS, SILVER, BOTTOM FRONT
180LBRACKET, SHOCK ABSORBER, LEFT
180RBRACKET, SHOCK ABSORBER, RIGHT
181CAP, SUPPORT, CUSHION
182132476800 Frigidaire PIN
360PANEL, INNER DOOR, GREY
361C808991902 Frigidaire Ring
361A00845107 Frigidaire Frame
362132764000 Frigidaire Panel
363132766200 Frigidaire Hinge Assembly
365132554120 Frigidaire Pin
367132002600 Frigidaire Hinge
370A807654201 Frigidaire Catch
521808455304 Frigidaire Lock
521A807756001 Frigidaire Cover Assembly
